TFA DESIGN Instruction Manual

Instruction Manual
Kat. Nr. 60.3517
A
B
E
DESIGN – Radio controlled wall clock
Thank you for choosing this instrument from the firm TFA.
1. Before you start using it
• Please make sure to read the instruction manual carefully.
• Following and respecting the instruction of your manual will
prevent damage to your instrument and loss of your statutory
rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of
not following these instructions.
• Please take particular note of the safety advice!
• Please keep this manual for future reference.
2. Field of operation and the benefits of your new instru-
ment at a glance
• Radio-controlled clock with silent "Sweep" movement
• High precision
• Large easy-to-read dial
• Second hand – stops when the battery is weak
• Ideal for home, office, waiting room, lobby or entrance hall or
as a gift
3. For your safety
• This product is exclusively intended for the field of application
described above. It should only be used as described in your
instruction manual.
• Unauthorised repairs, modifications or changes to the product
are prohibited.
• This product is not to be used for public information; it is only
intended for home use.
Caution!
Risk of injury:
• Keep this instrument and the battery out of the reach of child-
ren.
• Batteries must not be thrown into a fire, short-circuited, taken
apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be
changed as soon as possible to prevent damage caused leaking.
• Wear chemical-resistant protective gloves and glasses when
handling leaking batteries.
Important information on product safety!
• Do not place the unit near extreme temperatures, vibration or
shock.
• Protect it from moisture.

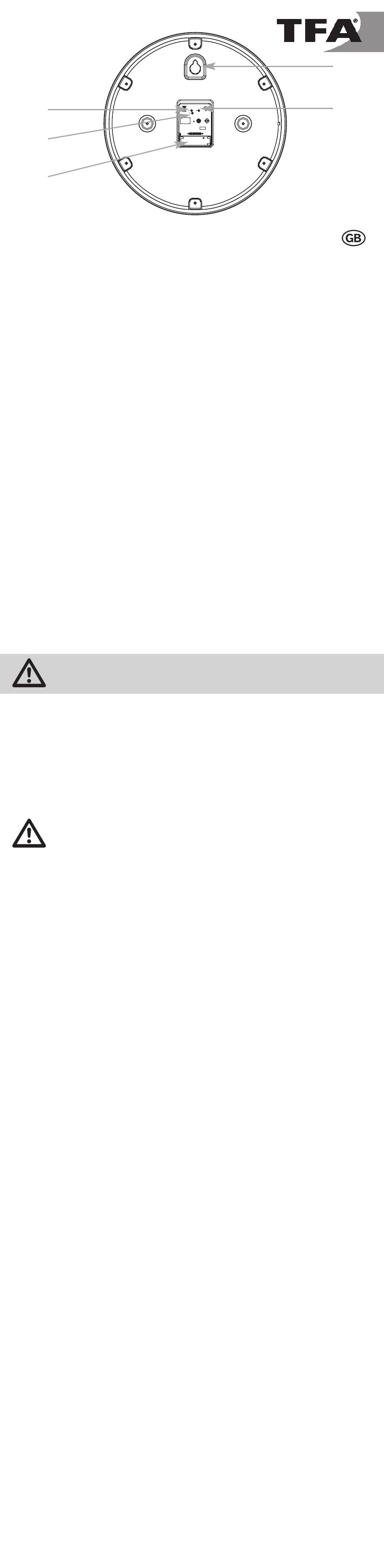

4. Elements
Buttons
A: M SET button
B: RESET button
C: REC button
Housing
D: Wall mounting hole
E: Battery compartment
Note for radio-controlled time DCF:
The time base for the radio-controlled time is a caesium atomic
clock operated by the Physikalisch Technische Bundesanstalt
Braunschweig. It has a time deviation of less than one second in
one million years. The time is coded and transmitted from Main-
flingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and
has a transmitting range of approximately 1,500 km. Your radio-
controlled clock receives this signal and converts it to show the
precise time. Changeover from summer time or winter time is
automatic. The quality of the reception depends mainly on the
geographic location. Normally there should be no reception prob-
lems within a 1,500 km radius around Frankfurt.
Please take note of the following:
• The recommended distance from any interfering sources like
computer monitors or TV sets is a minimum of 1.5 - 2 meters.
• Within Ferro-concrete rooms (basements, superstructures), the
received signal is naturally weakened. In extreme cases, please
place the unit close to a window.
• During night-time, the atmospheric disturbances are usually
less severe and reception is possible in most cases. A single daily
reception is adequate to keep the accuracy deviation below 1
second.
5. Getting started
• Insert one new battery AA size 1.5 V with the polarity as indi-
cated.
• Your clock is now ready to use.
• After the initial setup, the pointers move to 12 o'clock and will
try to receive the radio signal for 3-12 minutes. When the time
code is received, the radio-controlled time will be shown. The
clock receives the signal twice a day (1:00 and 3:00 am). During
the reception the second hand stops at 12 h.
5.1 REC button
• Manual initialization can be helpful. Press the REC button for
3 seconds. The second hand stops and the clock will scan the
DCF frequency signal.
D
C
