TFA DESIGN Instruction Manual

Instruction Manual
Cat.-No. 60.3516

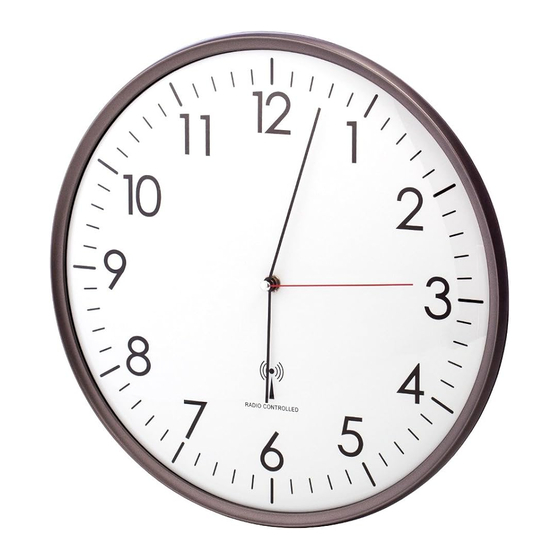

DESIGN – Radio controlled wall clock
Thank you for choosing this instrument from TFA.
1. Before you use this product
• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will
prevent damage to your instrument and loss of your statutory
rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of
non-following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.
2. Field of operation and the benefits of your new instru-
ment at a glance
• High precision radio-controlled clock
• Silent "Sweep" movement
• Large easy-to-read dial
• Second hand
• Ideal for home, office, waiting room, lobby or entrance hall or
as a gift
3. For your safety
• This product is exclusively intended for the field of application
described above. It should only be used as described in your
instruction manual.
• Unauthorised repairs, modifications or changes to the product
are prohibited.
Caution!
Risk of injury:
• Keep this instrument and the battery out of the reach of chil-
dren.
• Batteries contain harmful acids and may be hazardous if swal-
lowed. If a battery is swallowed, this can lead to serious internal
burns and death within two hours. If you suspect a battery could
have been swallowed or otherwise caught in the body, seek
medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken
apart or recharged. Risk of explosion!
• Low batteries should be changed as soon as possible to prevent
damage caused by leaking.
• Wear chemical-resistant protective gloves and safety glasses
when handling leaking batteries.
Important information on product safety!
• Do not place the unit near extreme temperatures, vibration or
shock.
• Protect it from moisture.
4. Elements
Buttons
M SET button
RESET button
REC button
Housing
Wall mounting hole
Battery compartment
Note for radio-controlled time DCF:
The time base for the radio-controlled time is a caesium atomic
clock operated by the Physikalisch Technische Bundesanstalt
Braunschweig. It has a time deviation of less than one second in
one million years. The time is coded and transmitted from Main-
flingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and
has a transmitting range of approximately 1,500 km. Your radio-
controlled clock receives this signal and converts it to show the
precise time. Changeover from summer time or winter time is
automatic. The quality of the reception depends mainly on the
geographic location. Normally there should be no reception prob-
lems within a 1,500 km radius around Frankfurt.
Please take note of the following:
• The recommended distance to any interference sources like
computer monitors or TV sets is at least 1.5 - 2 meters.
• Inside ferro-concrete rooms (basements, superstructures), the
received signal is naturally weakened. In extreme cases, please
place the unit close to a window to improve the reception.
• During night-time, atmospheric interference is usually less severe
and reception is possible in most cases. A single daily reception is
adequate to keep the accuracy deviation below 1 second.
5. Getting started
• Insert the battery AA size 1.5 V with the polarity as indicated.
• Your clock is now ready to use.
• After the initial setup, the clock's hands move to 12 o'clock and
will try to receive the radio signal for 3-12 minutes. When the
time code is received, the radio-controlled time will be shown.
The clock receives the signal twice a day (1:00 and 3:00 am).
During the reception the clock's second hand stops at 12 h.
