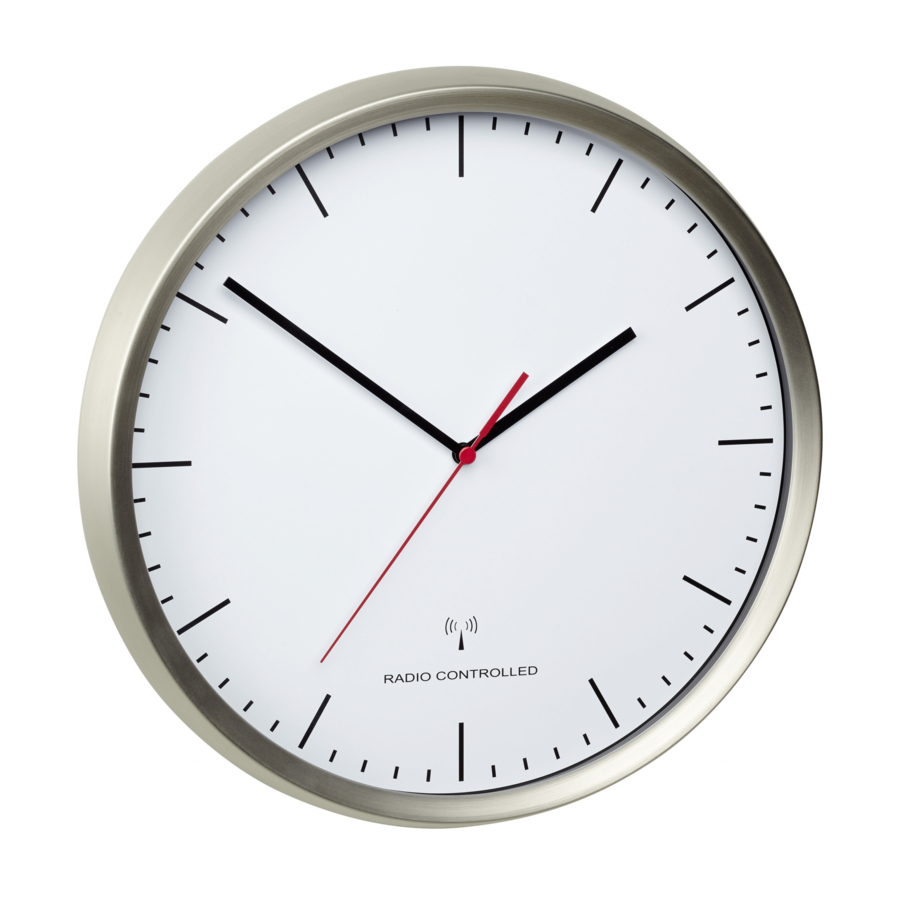

TFA DESIGN 60.3521 - Radio-Controlled Wall Clock Manual

TFA DESIGN 60.3521 - Radio-Controlled Wall Clock Manual

Advertisement

TFA DESIGN 60.3521 - Radio-Controlled Wall Clock Manual

Before you use this product

  • Please make sure you read the instruction manual carefully.
  • Following and respecting the instructions in your manual will pre-vent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
  • We shall not be liable for any damage occurring as a result of non-following of these instructions.
  • Please take particular note of the safety advice!
  • Please keep this instruction manual safe for future reference.

For your safety

  • This product should only be used as described within these instructions.
  • Unauthorized repairs, modifications or changes to the product are prohibited.


Risk of injury:

  • Keep this instrument and the battery out of the reach of children.
  • Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
  • Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
  • Low batteries should be changed as soon as possible to prevent damage caused by leaking.
  • Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.


Important information on product safety!

  • Do not place your device near extreme temperatures, vibrations or shocks.
  • Protect it from moisture.

Elements

Device Overview

Buttons

  1. MSET button
  2. RESET button
  3. REC button

Housing

  1. Wall mounting hole
  2. Battery compartment

Getting started

  • Insert a new battery 1,5 V AA, ensure that the battery polarity is correct.
  • The device is ready for use.

Reception of the DCF frequency signal

  • The clock's hands move to 12 o'clock.
  • The clock will now scan the DCF frequency signal
  • When the time code is received successfully after 3-12 minutes, the radio-controlled time is displayed steadily on the display.
  • The DCF reception always takes place daily at 1:00 and 3:00 o'clock in the morning.

Note for radio-controlled time DCF:
The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt Braunschweig. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-controlled clock receives this signal and converts it to show the precise time. Changeover from summer time or winter time is automatic. The quality of the reception depends mainly on the geographic location. Normally there should be no reception problems within a 1,500 km radius around Frankfurt.

Please take note of the following:

  • The recommended distance to any interfering sources like computer monitors or TV sets is at least 1.5 - 2 meters.
  • Inside ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve the reception.
  • During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

MSET button - Manual setting of the clock

  • If the clock cannot detect the DCF-signal (for example due to disturbances, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock.
  • Press and hold the MSET button for three seconds.
  • Press and hold the MSET button until the desired time is indicated.
  • Press the button briefly the clock's hands will move minute by minute.
  • The clock's second hand stops at 12 o'clock.
  • After 15 seconds, the clock's second hand will move forward again.
  • The manually set time will be overwritten by the DCF time when the signal is successfully received.

REC button

  • Manual initialization can be helpful.
  • Press and hold the REC button for three seconds.
  • The clock's second hand stops at 12.00 o'clock.
  • The clock will scan the DCF frequency signal.

RESET button

  • Use a pin to press the RESET button if the device does not work properly.

Fixing

  • You can attach the device with a nail at the respective location using the wall mounting hole.

Care and maintenance

  • Clean your instrument with a soft damp cloth. Do not use solvents or scouring agents.
  • Remove the battery if you do not use the product for a long period of time.
  • Store your clock in a dry place.

Energy saving feature

  • To reduce battery consumption, the clock's second hand stops daily between 10 p.m. and 6 a.m.

Battery replacement

  • Change the battery as soon as the clock's function becomes weak and the clock's second hand stops during the day (between 6 a.m. and 10 p.m.) at 12 noon.
  • Insert a new battery 1,5 V AA. Ensure that the battery polarity is correct.

Troubleshooting

Problems Solution
The clock's hands stand still Ensure that the battery polarity is correct
Change the battery
The clock's second hand stands still 6 a.m. until 10 p.m.:
Wait for the reception of the radiocontrolled time
Change the battery
10 p.m. until 6 a.m.:
Energy saving feature
No DCF reception Press the REC button for three seconds and start the initialization manually
Wait for attempted reception during the night
Choose another place for your product
Manual setting of the clock
Check if there is any source of interference
Restart the device according to the manual
Incorrect indication Use a pin to press the RESET button
Change the battery

If your device fails to work despite these measures contact the supplier from whom you purchased it.

Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.


Never dispose of empty batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the heavy metals contained are:

Cd=cadmium, Hg=mercury, Pb=lead


This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).
Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentallycompatible disposal.

Specifications

Power consumption: 1 x 1,5V AA battery (not included) Use alkaline batteries
Housing dimension: Ø 305 x 48 mm
Weight: 821 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU declaration of conformity
Hereby, TFA Dostmann declares that the radio equipment type 60.3521 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de/service/downloads/ce

www.tfa-dostmann.de
E-Mail: info@tfa-dostmann.de

TFA Dostmann GmbH & Co. KG
Zum Ottersberg 12, D-97877 Wertheim, Germany
