Summary of Contents for IXL tastic OVATION

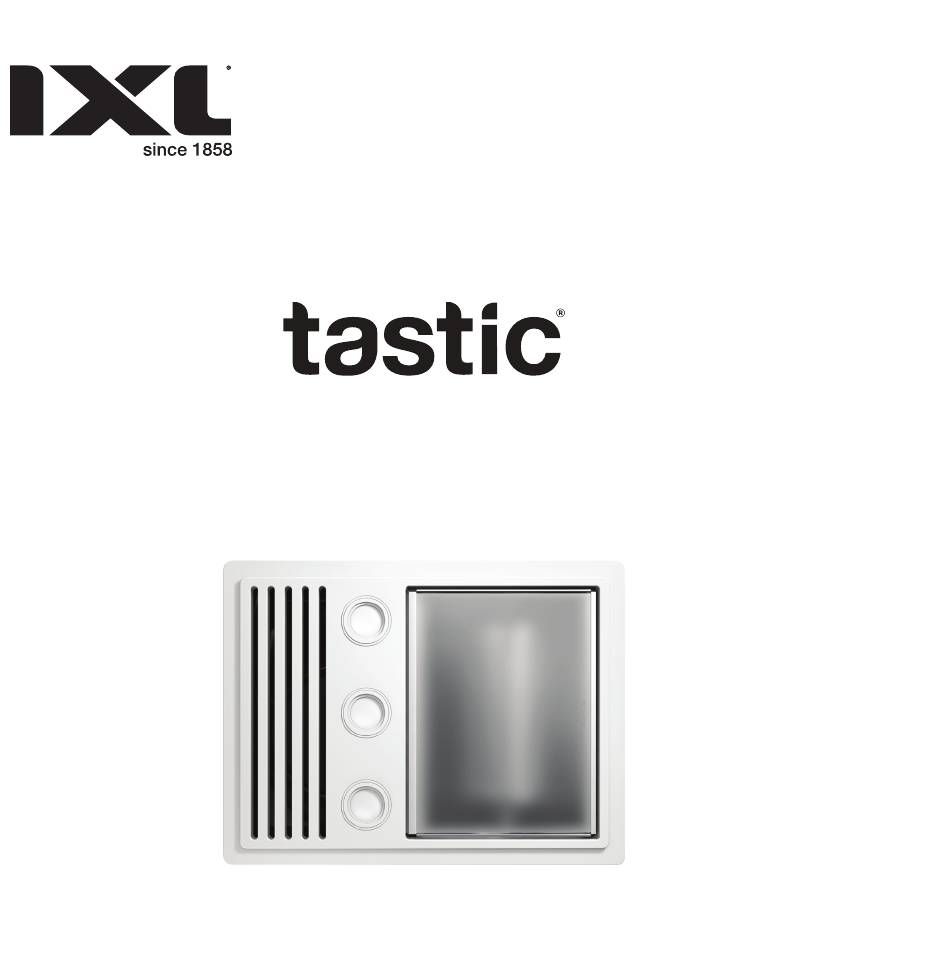

- Page 1 Installation Guide OVATION Model: 31511 Tastic Ovation Electrical rating: 230~240 V. 50 Hz.
- Page 2 Ventilation Requirements For maximum efficiency and fan performance there are a few key points to keep in mind when installing your Tastic. Sufficient air inlet into room Steam will only be removed if there is sufficient flow of air through the room. Ensure adequate inlets exist through windows, vents or under the door.
- Page 3 IMPORTANT: Joists, beams and rafters shall not be cut or notched to install the appliance. The Tastic Ovation has a weight of 5.5 kg. If adequate support is not available for the Tastic, it may be necessary to provide extra strengthening.
- Page 4 Installation Installing the Ducting NOTE: The fan outlet is assembled to the Tastic Ovation during final assembly before mounting into the ceiling. 1. Install the backdraft flaps into the removable duct outlet (Fig. 8) Fig 8. 2. Tape the duct onto the long end of the outlet.
- Page 5 Installation Fit Heat Lamps NOTE: Natural skin oils and salts damage new halogen lamps and shorten their life. Only handle a new heat lamp with soft, dry, clean, lint-free cloth or paper. You can wear gloves, cover your fingers or wrap the heat lamp until it is installed (so Fig 13.
- Page 6 Quick Guide NOTE: This product must be installed by a qualified installer. 1. Determine The Placement Of The Unit • Ensure clearance to joists, beams etc. in ceiling • Check the path of the duct in the ceiling • Use the cutout template in the top flap of the product carton Cutout Dimensions: 332 mm x 462 mm 2.
- Page 7 • This Tastic unit must be installed horizontally in the ceiling. • There is no IP rating on this IXL Tastic Ovation. • To prevent overheating do not place any object within 1 metre of heat lamps.
- Page 8 The Tastic Ovation is classified as a Room Heater and as such: In accordance to AS/NZS 3000 this isolating switch shall be - (a) installed immediately adjacent to an entrance to, or within, the room where the room heater is located;...
- Page 9 IXL, TASTIC and OVATION are registered trademarks of Alver Pty Ltd in Australia and New Zealand used under licence by IXL Home Pty Ltd. ON HEAT LAMP Approved by the appropriate & EXHAUST FAN © Copyright IXL Home, 2021...
