  • Page 1 User Guide Eco Tastic Heat | Vent | Light Model: 11341 Eco Triumph Model: 11344 Eco Vivid Model: 12343 Eco Sensation Electrical Rating: 230~240 V. 50 Hz.
  • Page 2: Table Of Contents

    Welcome Thank you for buying this IXL Eco Tastic. Even if you have used a Tastic before, there are very good reasons to read this user guide before using this one: • You and your family, property and home will be safe from harm.
  • Page 3: Eco Tastic Range

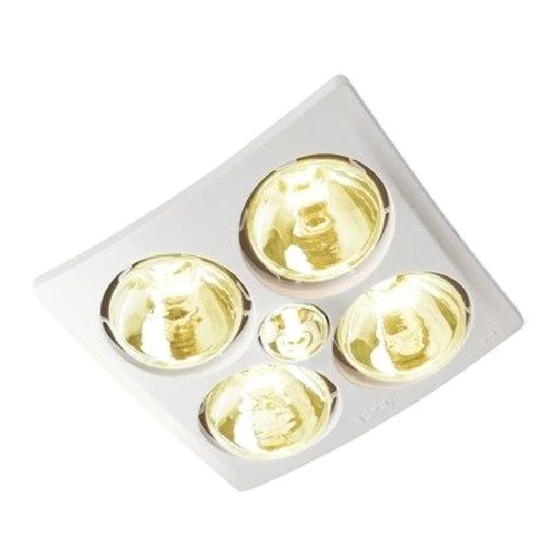

    Tastic ® Eco Tastic Range 11341 Eco Triumph 2 x 275 W Heat, Vent & Light 12 W R80 LED Centre Globe Cutout Template Supplied 200 mm Fan, 257m /hr or 72l/s Model: 11341 Eco Triumph 11344 Eco Vivid 2 x 275 W Heat, Vent & Light 10 W R80 Multi Option LED Cutout Template Supplied 200 mm Fan, 266m...
  • Page 4: Safety

    Tastic unit when installed. This Tastic must not be installed where there is a possibility of water splashing on to the lamps. There is no IP rating on any IXL Tastic. NOTE: This product must be installed by a qualified installer.
  • Page 5: How It Works

    How it Works The IXL Tastic range has been designed to exacting standards to give you many years of trouble-free operation. To ensure you get the most from your Tastic there are a few simple points to keep in mind.
  • Page 6: Ventilation Requirements

    floors of multi-storey dwellings, or where space within the roof cavity is severely restricted and a flue as per Fig. 5 cannot be fitted. IXL has other Tastic products available that are particularly suited to installations between floors or where space is restricted.
  • Page 7: Clearances

    Tastic ® Clearances All appliances must be mounted so that the lowest point is at least 2.1 m above the floor. A minimum clearance of 75 mm for Model 11341,11344 and 90 mm for Model 12343 is required above the top of the Tastic when installed in a well ventilated roof cavity.
  • Page 8: Flat Roof Installations (With Insufficient Clearances)

    Tastic ® Flat Roof Installations When installing into a flat roof with insufficient clearance, or where ceiling cavity ventilation is restricted, an external venting duct must be installed. Use Fig. 5 (at left) as a guide to minimum 100mm 230mm external outlet requirements.
  • Page 9: Wiring Diagrams

    Tastic Tastic Tastic ® ® ® Wiring Diagrams Wiring Diagrams Wiring Diagrams Earthin g Terminal ( Screw M4) Earthing Terminal ( Screw M4) Earthing Terminal ( Screw M4) EARTH EARTH EARTH Thermal Switch Thermal Switch Thermal Switch Heat Lamps Heat Lamps Heat Lamps PERMANENT PERMANENT...
  • Page 10: Installation

    Tastic ® Installation The Tastic may be installed between joists using the inbuilt clip fasteners. Alternatively, the unit can be installed against a joist using two screws through holes located in the flange (Fig. 4 on page 7), provided that the clearances for the two vertical sides are maintained as per Fig. 3 on page 7. Depending on your model, the Tastic has a weight of 2 –...
  • Page 11 Tastic ® Installation NOTE: This product must be installed by a qualified installer. Ensure power is off to location of Tastic. 1. After determining the location of the Tastic, use the card included with your Tastic Carton as a template to mark out and cut an aperture in the ceiling.
  • Page 12: Replacement Lamps

    NOTE: Replacement with any other lamps other than those listed below may cause damage to the moulding and void the warranty. Heat Lamps The IXL Tastic lamps have been specially developed for best performance. 275 watts max IXL Model no 11300. NOTE: Replace only with genuine IXL approved Hard Glass Infra-Red lamps.
  • Page 13: Troubleshooting

    Service NOTE: Do not remove the Tastic from the ceiling. Your Tastic will be serviced in your home. If service is required, please contact IXL’s Service Centre on 1300 727 421. Frequently asked questions Q – Will my Tastic heat my bathroom? A –...
  • Page 14 We recommend that you visit our website for further details and suggestions on effectively ventilating your bathroom. Q – Can the installer rotate the IXL wall switch mechanisms? A – Yes, the wall switches can be rotated by a qualified electrical trades person.
  • Page 15: Products

    ® Products IXL Range: Tastic and Ventilation Within the IXL Tastic and ventilation range there are a number of products and optional accessories available, these include: • Tastic 3 in 1: Heat, Light and Fan • Tastic 2 in 1: Heat and Light •...
  • Page 16: Warranty

    4. To the fullest extent permitted by law and subject always to Point 1, IXL Home will not be liable for: a.
  • Page 17 IXL Home Authorised Service Dealer. 10. Subject to Point 1, in the event you live more than 50 km from a IXL Home Authorised Service Dealer you may be subject to travel or transport costs to facilitate the repairing or replacement of your IXL product.
  • Page 18: Record Your Model

    RECORD THE DETAILS OF YOUR MODEL AND KEEP THE FOLLOWING INFORMATION DO NOT SEND THIS TO IXL. Installed By ................
  • Page 19: Notes

    Tastic ® Notes...
  • Page 20 Service Department 1K Marine Parade, Abbotsford VIC 3067, Australia Phone: 1300 727 421 Fax: 1300 727 425 service@ixl.com.au info@ixl.com.au www.ixlappliances.com.au New Zealand Free Call: 0800 727 421 contact@ixlhome.co.nz www.ixlappliances.co.nz Approved by the appropriate electrical supply authorities. © Copyright IXL Home, 2019...
