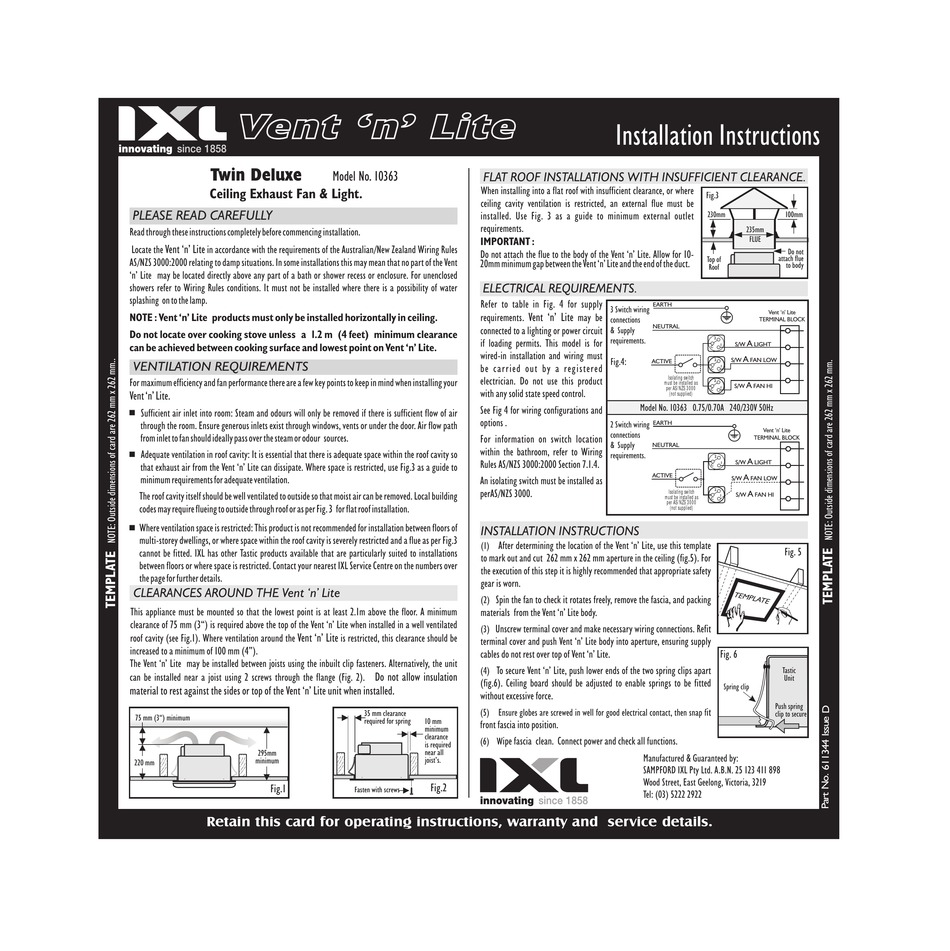

IXL Vent‘n’Lite Twin Deluxe Installation Instructions

Vent 'n' Lite
Twin Deluxe
Ceiling Exhaust Fan & Light.
PLEASE READ CAREFULLY
Read through these instructions completely before commencing installation.
Locate the Vent 'n' Lite in accordance with the requirements of the Australian/New Zealand Wiring Rules
AS/NZS 3000:2000 relating to damp situations. In some installations this may mean that no part of the Vent
'n' Lite may be located directly above any part of a bath or shower recess or enclosure. For unenclosed
showers refer to Wiring Rules conditions. It must not be installed where there is a possibility of water
splashing on to the lamp.
NOTE : Vent 'n' Lite products must only be installed horizontally in ceiling.
Do not locate over cooking stove unless a 1.2 m (4 feet) minimum clearance
can be achieved between cooking surface and lowest point on Vent 'n' Lite.

VENTILATION REQUIREMENTS

For maximum efficiency and fan performance there are a few key points to keep in mind when installing your
Vent 'n' Lite.
+ Sufficient air inlet into room: Steam and odours will only be removed if there is sufficient flow of air
through the room. Ensure generous inlets exist through windows, vents or under the door. Air flow path
from inlet to fan should ideally pass over the steam or odour sources.
Adequate ventilation in roof cavity: It is essential that there is adequate space within the roof cavity so
+
that exhaust air from the Vent 'n' Lite can dissipate. Where space is restricted, use Fig.3 as a guide to
minimum requirements for adequate ventilation.
The roof cavity itself should be well ventilated to outside so that moist air can be removed. Local building
codes may require flueing to outside through roof or as per Fig. 3 for flat roof installation.
+ Where ventilation space is restricted: This product is not recommended for installation between floors of
multi-storey dwellings, or where space within the roof cavity is severely restricted and a flue as per Fig.3
cannot be fitted. IXL has other Tastic products available that are particularly suited to installations
between floors or where space is restricted. Contact your nearest IXL Service Centre on the numbers over
the page for further details.
CLEARANCES AROUND THE Vent 'n' Lite
This appliance must be mounted so that the lowest point is at least 2.1m above the floor. A minimum
clearance of 75 mm (3") is required above the top of the Vent 'n' Lite when installed in a well ventilated
Vent 'n' Lite
roof cavity (see Fig.1). Where ventilation around the
increased to a minimum of 100 mm (4").
The Vent 'n' Lite may be installed between joists using the inbuilt clip fasteners. Alternatively, the unit
can be installed near a joist using 2 screws through the flange (Fig. 2).
material to rest against the sides or top of the Vent 'n' Lite unit when installed.
75 mm (3") minimum
295mm
minimum
220 mm
Fig.1
Retain this card for operating instructions, warranty and service details.
Model No. 10363

FLAT ROOF INSTALLATIONS WITH INSUFFICIENT CLEARANCE.

When installing into a flat roof with insufficient clearance, or where
ceiling cavity ventilation is restricted, an external flue must be
installed. Use Fig. 3 as a guide to minimum external outlet
requirements.
IMPORTANT :
Do not attach the flue to the body of the Vent 'n' Lite. Allow for 10-
20mm minimum gap between the Vent 'n' Lite and the end of the duct.

ELECTRICAL REQUIREMENTS.

Refer to table in Fig. 4 for supply
requirements.
connected to a lighting or power circuit
if loading permits. This model is for
wired-in installation and wiring must
be carried out by a registered
electrician. Do not use this product
with any solid state speed control.
See Fig 4 for wiring configurations and
options .
For information on switch location
within the bathroom, refer to Wiring
Rules AS/NZS 3000:2000 Section 7.1.4.
An isolating switch must be installed as
perAS/NZS 3000.
INSTALLATION INSTRUCTIONS
After determining the location of the Vent 'n' Lite, use this template
(1)
to mark out and cut 262 mm x 262 mm aperture in the ceiling (fig.5). For
the execution of this step it is highly recommended that appropriate safety
gear is worn.
(2) Spin the fan to check it rotates freely, remove the fascia, and packing
materials from the Vent 'n' Lite body.
(3) Unscrew terminal cover and make necessary wiring connections. Refit
is restricted, this clearance should be
terminal cover and push Vent 'n' Lite body into aperture, ensuring supply
cables do not rest over top of Vent 'n' Lite.
To secure Vent 'n' Lite, push lower ends of the two spring clips apart
(4)
Do not allow insulation
(fig.6). Ceiling board should be adjusted to enable springs to be fitted
without excessive force.
(5) Ensure globes are screwed in well for good electrical contact, then snap f
35 mm clearance
required for spring 10 mm
front fascia into position.
minimum
clearance
ipe fascia clean. Connect power and check all functions.
(6) W
is required
near all
joist's.
Fig.2
Fasten with screws
Installation Instructions
Fig.3
230mm
Top of
EARTH
3 Switch wiring
Vent 'n' Lite
may be
connections
NEUTRAL
& Supply
requirements.
Fig.4:
ACTIVE
Isolating switch
must be installed as
per AS/NZS 3000
(not supplied)
Model No. 10363 0.75/0.70A 240/230V 50Hz
2 Switch wiring EARTH
connections
& Supply
NEUTRAL
requirements.
ACTIVE
Isolating switch
must be installed as
per AS/NZS 3000
(not supplied)
it
Manufactured & Guaranteed by:
SAMPFORD IXL Pty Ltd. A.B.N. 25 123 411 898
Wood Street, East Geelong, Victoria, 3219
Tel: (03) 5222 2922
100mm
235mm
FLUE
Do not
attach flue
to body
Roof
Vent 'n' Lite
TERMINAL BLOCK
2
A
S/W LIGHT
1
C
A
S/W FAN LOW
2
1
C
2
A
S/W FAN HI
1
C
Vent 'n' Lite
TERMINAL BLOCK
2
A
S/W LIGHT
1
C
A
S/W FAN LOW
2
A
S/W FAN HI
1
C
Fig. 5
Fig. 6
Tastic
Unit
Spring clip
Push spring
clip to secure
