Summary of Contents for IXL Eco Ventflo 200
-

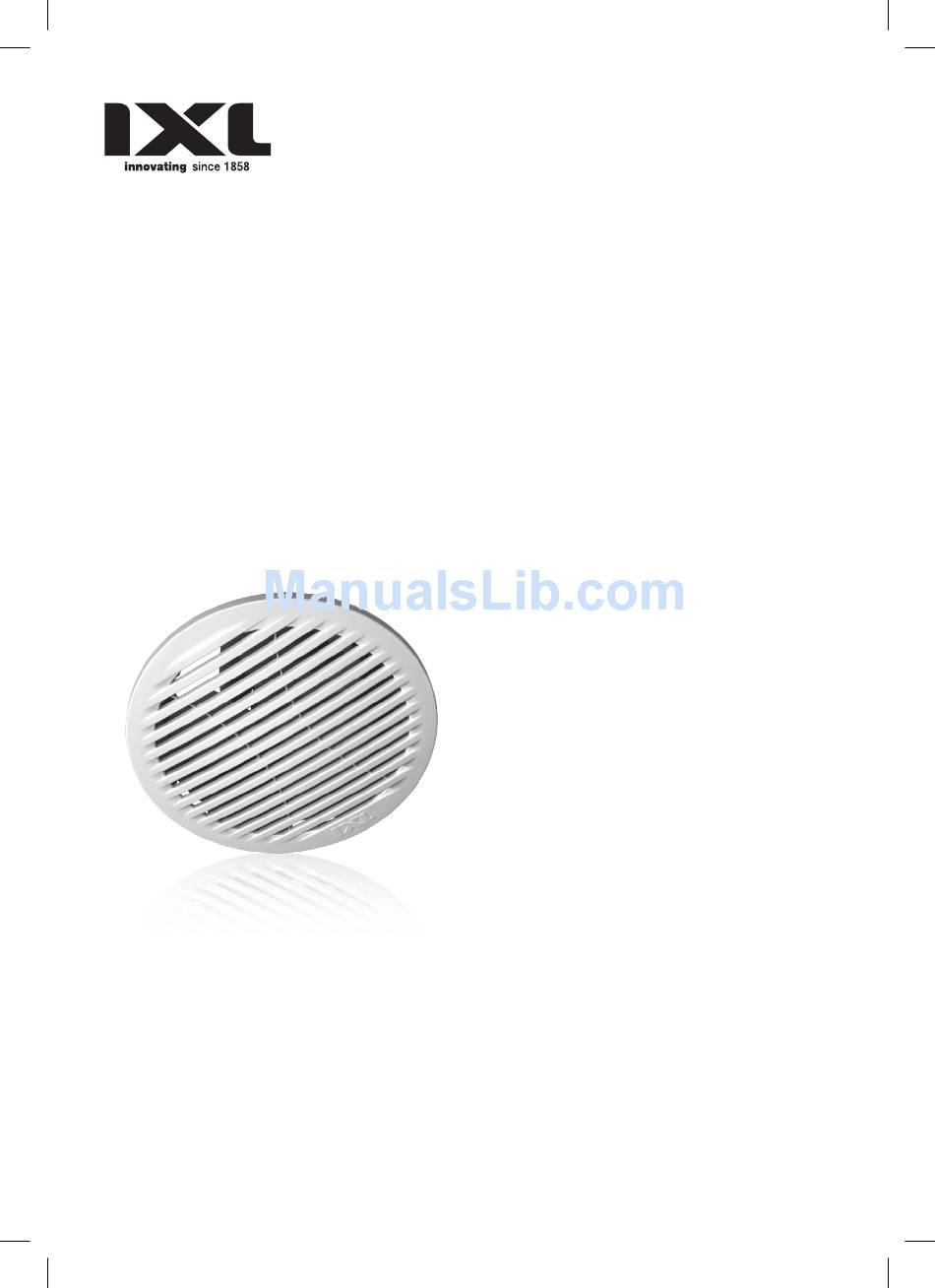

Page 1: User Guide

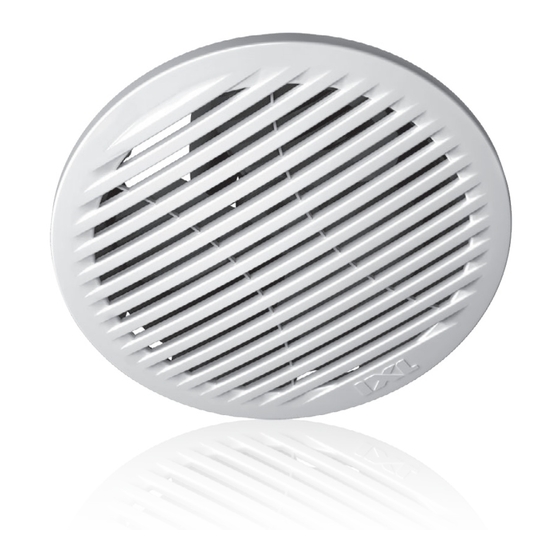

User Guide IXL Eco Ventflo Model: 10324 (200mm) - Extraction Rate: 340m Model: 10326 (250mm) - Extraction Rate: 490m Electrical Rating: 230~240 V. 50 Hz. -
Page 2: Table Of Contents
IXL Eco Ventflo Safety Thank you for buying this IXL Eco Ventflo Fan. Even if you have used an exhaust fan before, there are some very good reasons to read this user guide before using this one: Do not allow insulation material to rest against the sides or •... -
Page 3: Ventilation Requirements
Ventilation Requirements For maximum efficiency and fan performance there • If the appliance does not function correctly or develops a fault, contact Sampford IXL immediately. are a few key points to keep in mind when installing your IXL Eco Ventflo exhaust fan. -
Page 4: Clearances
All appliances must be mounted so that the lowest When installing into a flat roof with insufficient point is at least 2.1m above the floor. The IXL Eco clearance, or where ceiling cavity ventilation is restricted, an external venting duct must be installed. -
Page 5: Wiring Diagrams
IXL Eco Ventflo IXL Eco Ventflo Wiring Diagrams Installation Important considerations before installing • Joists, beams and rafters shall not be cut or notched to install the appliance. • This unit has an IPX4 rating which means it is suitable for Zone 1 installations and can be installed directly above a shower or bath. -
Page 6: Use
Note: Shut off power urgently when any abnormalities occur in operation. Then call a licensed electrician or IXL service person for inspection and necessary service work. Installed By ................ -
Page 7: Warranty
4. To the fullest extent permitted by law and subject always to Point 1, Sampford IXL will not be com.au or by telephone on 1300 727 421. -
Page 8: Template For Cut Out
IXL Eco Ventflo IXL Eco Ventflo Notes Template for Cut Out... - Page 9 For comments, questions or warranty matters: Sampford IXL Pty Ltd Service Department 421 Smith St Fitzroy Victoria 3065 Australia Phone: 1300 727 421 Fax: 1300 727 425 aftersalesservice@sampfordixl.com.au info@sampfordixl.com.au Approved by the appropriate electrical supply authorities. www.sampfordixl.com.au...
