Installation Instructions
and User Guide
DUCTED VENTILATION

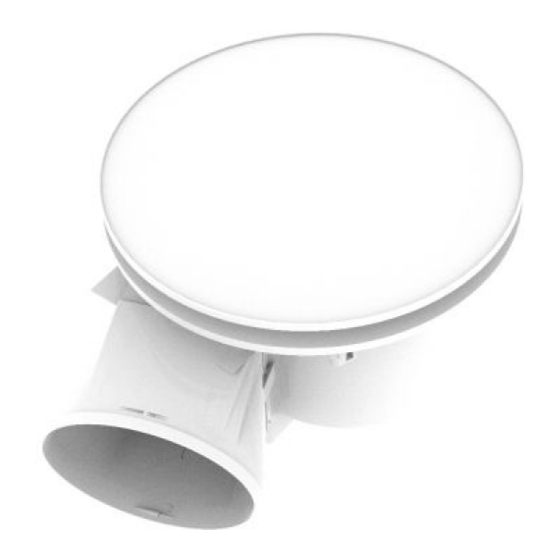

Model: 10334 Ventlfo Ducted Ceiling Exhaust Fan 200 (280m³/hr or 77l/s)
Model: 10336 Ventflo Ducted Ceiling Exhaust Fan & Light 200 (280m³/hr or 77l/s)
Model: 10337 Venflo Ducted Ceiling Exhaust Fan 250 (360m³/hr or 100l/s)
Model: 10338 Ventflo Ducted Ceiling Exhaust Fan and Light 250 (360m³/hr or 100l/s)
Electrical Rating: 230~240 V. 50 Hz.
www.ixlappliances.com.au
www.ixlappliances.co.nz
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IXL Ventflo 10334
Summary of Contents for IXL Ventflo 10334
- Page 1 Installation Instructions and User Guide DUCTED VENTILATION Model: 10334 Ventlfo Ducted Ceiling Exhaust Fan 200 (280m³/hr or 77l/s) Model: 10336 Ventflo Ducted Ceiling Exhaust Fan & Light 200 (280m³/hr or 77l/s) Model: 10337 Venflo Ducted Ceiling Exhaust Fan 250 (360m³/hr or 100l/s) Model: 10338 Ventflo Ducted Ceiling Exhaust Fan and Light 250 (360m³/hr or 100l/s) Electrical Rating: 230~240 V.
-
Page 2: Table Of Contents
Welcome Thank you for buying this IXL Ventflo Ducted Ventilation. Even if you have used a Ventflo before, there are very good reasons to read this user guide before using this one: • You and your family, property and home will be safe from harm. -
Page 3: Safety
Read through these instructions fully before commencing installation. Locate the IXL Ventflo in accordance with the requirements of the current Australian/New Zealand Wiring Rules AS/NZS 3000 relating to damp situations, or according to applicable Wiring Rules for installations outside of Australia and New Zealand. In some installations this may mean that no part of the appliance may be located directly above any part of a bath or shower recess or enclosure. -
Page 4: Warning & Caution
• Do not use this appliance for functions other than those described in this user guide. • After removing the appliance from its packaging, ensure that it is complete and undamaged. If in doubt contact a qualified electrician or IXL Home. Do not leave packaging within the reach of children or infirm persons. -
Page 5: Clearances
Ventflo Clearances All appliances must be mounted so that the lowest point is at least 2.1m above the floor. The IXL Ducted Ventflo Ceiling Exhaust Vent is designed to fit a ceiling cavity with a minimum height of 210mm (for models 10334/10336) and 242mm (for models 10337/10338) (A) (Figure 1) when installed in a well ventilated roof cavity. -
Page 6: Installation
Ceiling thickness should be adjusted to enable the mounting clips to be fitted without excessive force. c. Do not over tighten the screws as this can damage plasterboard. Fig. 2: How to secure the unit to the ceiling Australia - P. 1300 727 421 E. service@ixl.com.au New Zealand - P. 0800 727 421 E. service@ixl.com.au... - Page 7 Ventflo Installation 5. When installing the fascia, put the two retaining springs on the fascia (Fig 3) into the two slots in the unit and make sure the fascia is well fixed to the unit. Fascia Retaining Fascia Spring Fig. 3: Fascia retaining springs side view 6.
- Page 8 Fig. 7: Wiring Diagram for Ducted Ceiling Fig. 8: Wiring Diagram for Ducted Ceiling Exhaust Fan (product code 10334/10337) Exhaust Fan & Light (product code 10336/10338) Australia - P. 1300 727 421 E. service@ixl.com.au New Zealand - P. 0800 727 421 E. service@ixl.com.au...
-
Page 9: Ventilation Requirements
This product is not recommended for installation between floors of multi-storey dwellings, or where space within the roof cavity is severely restricted and a flue cannot be fitted. IXL has other Ventilation products available that are particularly suited to installations between floors or where space is restricted. -
Page 10: Cleaning & Warranty
4. To the fullest extent permitted by law and subject always to Point 1, IXL Home will not be liable for: a. any loss or damage arising from loss of use, loss of profits or revenue; or b. - Page 11 6. Subject to Point 1, this Warranty: a. will only be provided to the original purchaser where the original purchase was made from a IXL Home Authorised Dealer or Reseller and proof of such purchase can be presented at the time of service;...
-
Page 12: Warranty Registration
Tastic Warranty Registration Ventflo Warranty Registration Visit IXL Home website below to register your warranty details online. Australia New Zealand www.ixlappliances.com.au/warranty www.ixlappliances.co.nz/warranty For comments, questions or warranty matters: IXL Home Pty Ltd Australia: New Zealand: Free Call: 1300 727 421 Free Call: 0800 727 421 service@ixl.com.au...
