Industrial Climate Engineering™, An AirX Climate Solutions Brand
The most current version of this manual can be found at www.acice.com.

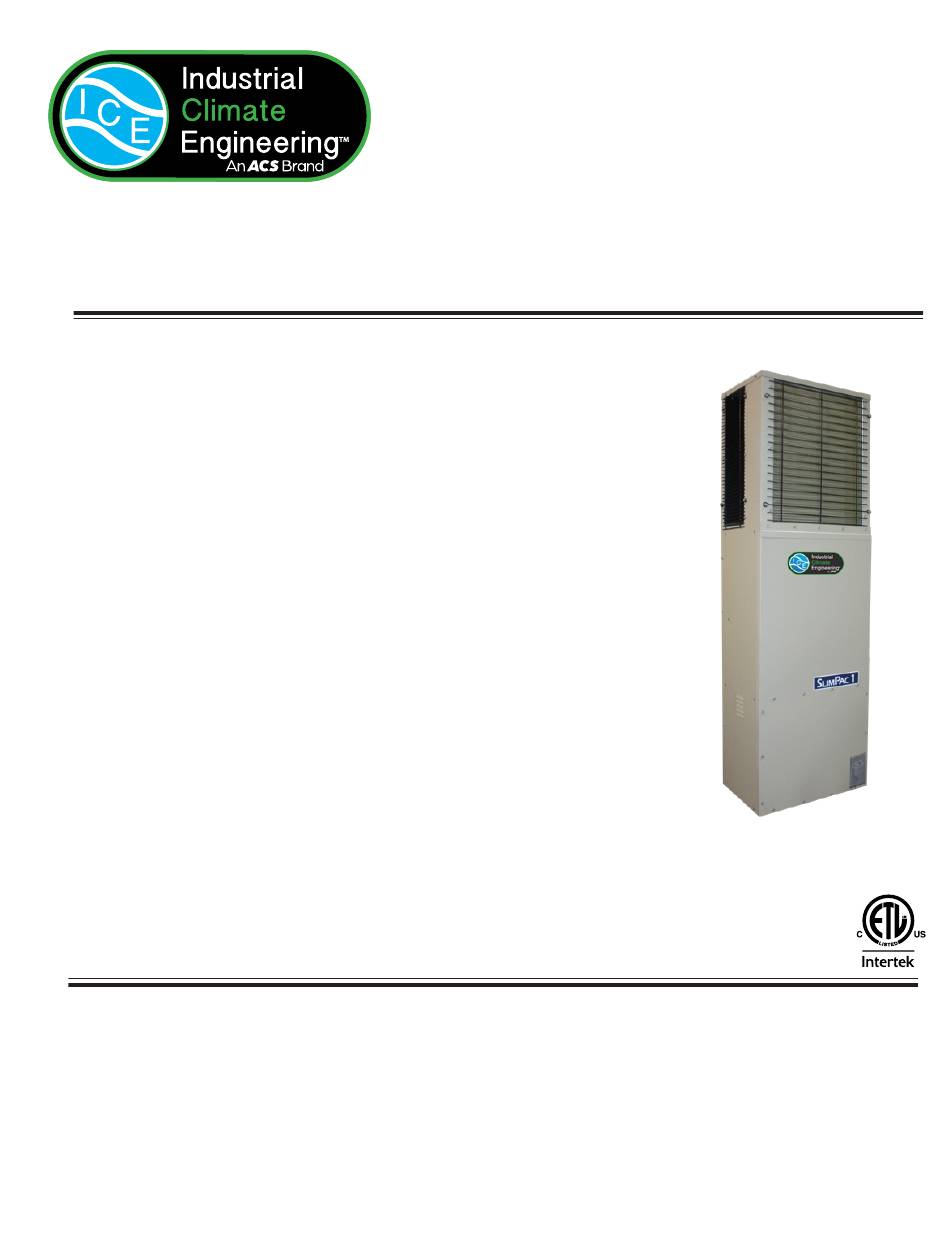

Model CFH1012A
Manufactured By:
P.O. Box 5104 • Cordele, Georgia 31010
2002 Hoover St. • Cordele, Georgia 31015
(229) 273-9558 • Fax (229) 273-5154
E-mail: icesales@airxcs.com • Internet: www.acice.com
Installation & Operation Manual
Vertical Air Conditioners
CFH1012A
ICE CFH1012A I&O Manual
09/2024 New
Advertisement
Table of Contents
Troubleshooting
Related Manuals for ACS Industrial Climate Engineering CFH1012A
Summary of Contents for ACS Industrial Climate Engineering CFH1012A
-
Page 1: Table Of Contents
Installation & Operation Manual Vertical Air Conditioners Model CFH1012A Chapter 1 Description ......... 5 Chapter 2 Installation ....... 14 Chapter 3 Start-Up ........20 Chapter 4 Troubleshooting ....... 21 Chapter 5 Maintenance ......24 Chapter 6 Warranty ........25 Chapter 7 Exploded View Parts List .. -
Page 2: How To Use This Manual
How To Use This Manual This manual is intended to be a guide to Industrial Climate Engineering's line of vertical air conditioners. It contains installation, troubleshooting, maintenance, warranty, and application information. The information contained in this manual is to be used by the installer as a guide only. This manual does not supersede or circumvent any applicable national or local codes. - Page 3 Failure to comply will result in death or severe personal injury and/or property damage. DANGER Failure to comply could result in death or severe personal injury and/or property damage. WARNING Failure to comply could result in minor personal injury and/or property damage. CAUTION Used to point out helpful info that will result in improved installation, reliability or operation.
- Page 4 Chapter 3 Start-Up 3.1 Start-Up & Commissioning Checklist ....................18 Chapter 4 Troubleshooting 4.1 Overview ..............................22 4.2 Failure Symptoms Guide ........................22 4.3 Compressor Troubleshooting .......................23 Chapter 5 Maintenance 5.1 Scheduled Maintenance ........................25 Chapter 6 Service & Charging/Recovery 6.1 Safety Precautions ..........................26 6.2 Leak Detection .............................26 6.3 Charging Procedures ..........................27 6.4 Refrigerant Recovery ...........................27...
-
Page 5: General Description
Chapter 1 Description & Specifications General Description The ICE CFH1012A line of environmental control units (ECU) is designed for the telecommunication cabinet and shelter. Below are some of the features of the unit. • The CFH1012A is available in a cooling capacity of 12,000 BTUH. •... -
Page 6: Electrical Data And Performance Data
1.4 Electrical Ratings and Performance Data ELECTRIC HEAT 036 = 3.6 kW CKT #1 BASIC MODEL VOLTAGE / PHASE / HZ CFH1012A 208-230/1/60 19.7 MCA =Minimum Circuit Ampacity (Wire Sizing Amps) MFS = Max. Fuse Size or HACR circuit breaker MCA &... -
Page 7: Figure 1. Dimensional Data
Weight CFH1012A 160 lbs/73 kg Figure 1. Dimensional Data ICE CFH1012A I&O Manual 09/2024 New... -
Page 8: General Operation
General Operation Refrigerant Cycle (Cooling Mode) The CFH1012A uses R-454B refrigerant in a conventional vapor-compression refrigeration cycle to transfer heat from air in an enclosed space to the outside. A supply blower assembly pulls indoor air across the evaporator. Liquid refrigerant passing through the evaporator is boiled into gas by heat removed from the air. -
Page 9: Electrical Diagrams
Electrical Diagrams Figure 2. Typical Electrical Schematic ICE CFH1012A I&O Manual 09/2024 New... -
Page 10: Electronic Control Board Mode Of Operation
Electronic Control Board Mode of Operation Normal 24 VAC power must be continuously applied to “R” and “C”. Upon a call for cooling “Y” and with the high pressure switch (HPS) closed, the compressor will be energized. (Note: See the delay on make feature.) The compressor will remain energized during the 3 minute timed low pressure by-pass cycle. -
Page 11: Figure 3. Control Board Detail
High Pressure Switch The high pressure switch is mounted on the liquid line. It is electrically connected to a lockout circuit on the board which shuts down the system if the refrigerant pressure rises to 650 PSIG. This protects the unit if airflow through the condenser is blocked or if the outdoor fan motor fails. Although the contacts of the high pressure switch close when the refrigerant pressure falls to approxi- mately 450 PSIG, the system must be manually reset once the lockout circuit is activated. -
Page 12: Chapter 2 Installation
Chapter 2 Installation WARNING Failure to observe and follow Warnings and Cautions and these Instructions could result in death, bodily injury or property damage. Read this manual and follow its instructions and adhere to all Cautions and Warnings in the manual and on the ICE unit. Equipment Inspection Concealed Damage Inspect all cartons and packages upon receipt for damage in transit Remove cartons and check for... -
Page 13: Electrical Supply
You must consider all of the following when choosing the installation site: 1. Evaporator Condensate Drainage. Condensate produced during operation must be discharged from the evaporator pan through the primary and/or secondary drain hoses. Make sure the condensate lines are free of any restrictions. Condenser Pan Drainage. - Page 14 Other Optional Equipment: The package may include other factory-supplied items (optional) as follows: PART # DESCRIPTION 50123 Digital thermostat. 1 stage heat, 1 stage cool. 7 day programmable. Fan switch: Auto & On. Auto-change over. Keypad lockout. Non-volatile program memory. 50218 Digital, non-programmable thermostat.
-
Page 15: Porting And Duct Work
Porting and Duct Work General Information Note: The following instructions are for general guidance only. Due to the wide variety of installa- tion possibilities, specific instructions will not be given. When in doubt, follow standard and accepted installation practices, or contact ICE for additional assistance. Minimum Airflow Requirements The duct system must be engineered to assure sufficient air flow through the CFH1012A, even under adverse conditions such as dirty filters, etc. -
Page 16: Mounting The Unit
Figure 4. Wall Mounting Detail Mounting the Unit 1. Using an appropriate and safe lifting device, set the CFH1012A on the bottom support bracket mounted on the wall. You must stabilize the unit on the bracket with the lifting device or by some other means - the bracket alone is not sufficient. -
Page 17: Figure 5. Thermostat Wiring Diagram
Important All electrical work must meet the requirements of local codes and ordinances. Work should be done only by qualified persons. The CFH1012A units are provided with labeled power leads and an eight-conductor thermostat cable. High Voltage Wiring The high voltage wire provided with the CFH1012A can be replaced to eliminate wire nut connec- tions. -
Page 18: Start-Up & Commissioning Checklist
Chapter 3 Start-Up Start-Up & Commissioning Checklist Please complete the information on this form and return to Marvair by mail or fax. The mailing address and fax number can be found at the end of the form. A. Equipment Information Date: ________________Equipment Owner _______________________________________ Installing Company: _____________________________Installer: ____________________ Address: _______________________________________State _______________________... - Page 19 C. Check Rated Voltage at Terminal Block for Imbalance before starting of Unit. ❒208/230V 1 Phase ❒208/230V 3 Phase ❒460V 3 Phase ❒380V 3 Phase 50Hz. ❒575 3 Phase 60 Hz. Measured Line to Line Volts L1&L2_______V. L1&L3 ________V. L2&L3______V. (L1&L2 + L1&L3 + L2&L3)/3 = Avg.
- Page 20 D. Heating Mode Check & Record Readings Circuit 1 Circuit 2 (if applicable) Room Temperature ________ ________ Outside Temperature ________ ________ Evap. Entering Air DB Temp ________ ________ Evap. Entering Air WB Temp ________ ________ Evap. Leaving Air DB Temp ________ ________ Evap.
- Page 21 After 10 minutes of compressor operation, record the following: Circuit 1 Circuit 2 (if applicable) Room Temperature ________ ________ Outside Temperature ________ ________ Suction Pressure ________ ________ Suction Line Temperature ________ ________ Discharge Pressure ________ ________ Discharge Line Temperature ________ ________ Entering Condenser Air ________...
-
Page 22: Chapter 4 Troubleshooting
Chapter 4 Troubleshooting Overview WARNING Failure to follow these instructions could result in death, severe personnel injury and/or property damage. A comprehensive understanding of the operation of the CFH1012A is a prerequisite to troubleshooting. Please read the Chapter 1 for basic information about the unit. ICE CFH1012As are thoroughly tested before they are shipped from the factory. -
Page 23: Compressor Troubleshooting
B. Unit runs for long periods or continu- 1. Dirty filter or reduced airflow 1. Check air filter(s). Check blower operation. Remove ously; cooling is insufficient. airflow restriction. 2. Low refrigerant. 2. Check for proper charge and possible refrigerant leak. 3. - Page 24 2. Running Amperage: Connect a clip-on type ammeter to the (common) lead to the compressor. Turn on the supply voltage and energize the unit. The compressor will initially draw high amperage; it should soon drop to the RLA value or less. If the amperage stays high, check the motor winding resistances.
-
Page 25: Scheduled Maintenance
Chapter 5 Maintenance Scheduled Maintenance Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. -
Page 26: Chapter 6 Service & Charging/Recovery
Chapter 6 Service & Charging/Recovery Safety Precautions Service Prior to beginning work on systems containing FLAMMABLE REFRIGERANTS, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the REFRIGERATING SYSTEM, the following shall be completed prior to conducting work on the system. 1. -
Page 27: Charging Procedures
Charging Procedures In addition to conventional charging procedures, the following requirements shall be followed. 1. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them. 2. - Page 28 10. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of the flammable refrigerant. If in doubt, the manufacturer should be consulted. In addition, a set of calibrated weighing scales shall be available and in good working order.
-
Page 29: Chapter 7 Decommissioning
Chapter 7 Decommissioning Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its details. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of recovered refrigerant. -
Page 30: Chapter 8 Warranty
Chapter 8 Warranty Limited Product Warranty Marvair Inc., warrants its products to be free from defects in materials and workmanship under normal use to the original purchaser for the period of time in the table below. If any part of your product fails within 12 months from start-up, or 18 months from shipment from the factory, whichever comes first, Marvair, Inc. - Page 31 Notes ICE CFH1012A I&O Manual 09/2024 New...
- Page 32 Notes ICE CFH1012A I&O Manual 09/2024 New...
