Summary of Contents for Four-Faith F2113

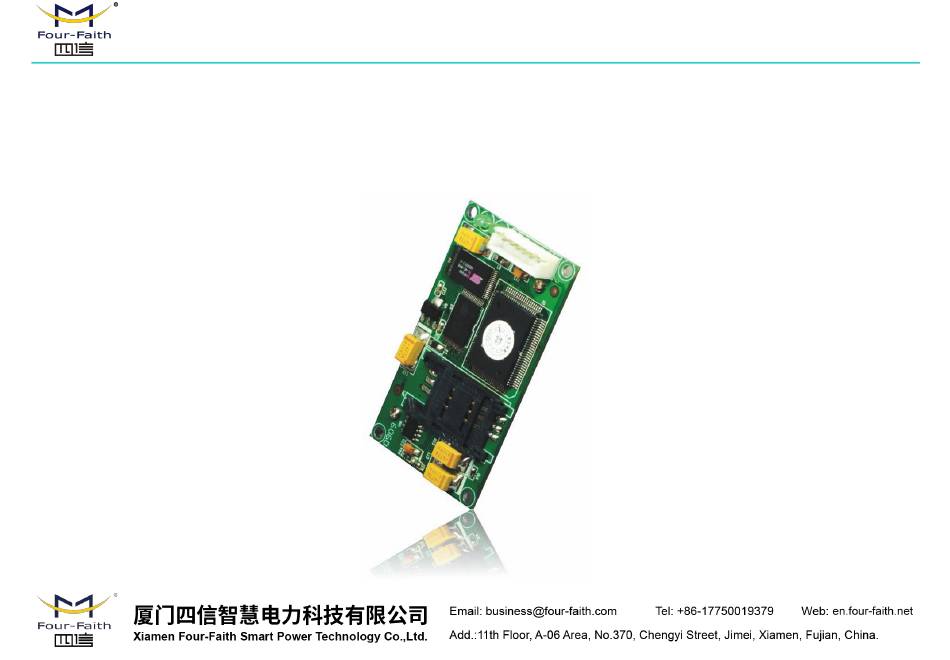

- Page 1 Four-Faith Smart Power Technology Co., Ltd. F2113 GPRS IP MODEM USER MANUAL...
-
Page 2: Table Of Contents
Four-Faith Smart Power Technology Co., Ltd. Contents Contents Chapter 1 Brief Introduction of Product................3 1.1 General....................... 3 1.2 Features and Benefits..................3 1.3 Working Principle....................4 1.4 Specifications......................4 Chapter 2 Installation Introduction.................. 6 2.1 General....................... 6 2.2 Encasement List....................6 2.3 Installation and Cable Connection..............6 2.4 Power........................ -
Page 3: Chapter 1 Brief Introduction Of Product
High-powered industrial 16/32 bits CPU Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional) F2113 GPRS IP MODEM is a kind of cellular terminal device that provides data Stability and Reliability transfer function by public GPRS network. -
Page 4: Working Principle
Four-Faith Smart Power Technology Co., Ltd. disconnection when timeout Band GSM850/900/1800/1900MHz(optional) Support dynamic domain name(DDNS) and IP access to data center Compliant to GSM phase 2/2+ Design with standard TCP/IP protocol stack GPRS class 10, class 12(optional) Support APN/VPDN Bandwidth 85.6Kbps... - Page 5 Four-Faith Smart Power Technology Co., Ltd. Power Input Item Content Standard Power DC 4.2V/500mA Power Range DC 3.8~4.6V Consumption <250mA (4.2V) Physical Characteristics Item Content Dimensions 70x40x20 mm Weight Environmental Limits Item Content Operating -25~+65ºC（-13~+149℉） Temperature Extended -30~+75ºC（-22~+167℉） Operating Temperature Storage -40~+85ºC（-40~+185℉）...
-
Page 6: Chapter 2 Installation Introduction
Four-Faith Smart Power Technology Co., Ltd. 2.3 Installation and Cable Connection Dimension : (unit: mm) Chapter 2 Installation Introduction 2.1 General The IP MODEM must be installed correctly to make it work properly. Warning: Forbid to install the IP MODEM when powered! 2.2 Encasement List... -
Page 7: Power
Four-Faith Smart Power Technology Co., Ltd. Installation of antenna: IP MODEM is powered off Screw the SMA male pin of the antenna to the female SMA outlet of the IP Online IP MODEM has logged on network MODEM tightly. Warning: The antenna must be screwed tightly, or the signal quality IP MODEM hasn’t logged on network... -
Page 8: Chapter 3 Configuration
Four-Faith Smart Power Technology Co., Ltd. configuration item. 3.3 Run the configure Tool: IP Modem Configure.exe Chapter 3 Configuration 3.1 Configuration Connection Before configuration, it’s necessary to connect the IP MODEM with the configure 3.2 Configuration Introduction There are two ways to configure the IP MODEM: Configuration software tool: All the settings are configured through the shipped The “Serial Parameters”... -
Page 9: Re-Power Ip Modem
Four-Faith Smart Power Technology Co., Ltd. 3.4 Re-power IP MODEM IP MODEM support two Data Service Center methods to transmit data. Main and Backup: IP MODEM always tries to connect with the Main DSC. If fails to connect with Main DSC, it will connect with Backup DSC at once Note：If no Backup DSC exists, please configure the Backup DSC same as Main DSC. - Page 10 Four-Faith Smart Power Technology Co., Ltd. AT command of the Main DSC IP address or domain name: AT+IPAD=xxx xxx: The IP address or domain name. AT command of the Main DSC port: When “Data Center Number” is greater than 1, this setting is valid. For example，...
-
Page 11: Ip Modem Settings
Four-Faith Smart Power Technology Co., Ltd. AT command of 2~5 DNS Server AT+DNSSVRn=aaa.bbb.ccc.ddd When the DSC Internet access uses domain name, It’s necessary to set DNS server n is 1~4 correspond to center 2~5 DNS server. resolving the DSC domain name. When the Data Center Number is 1, Main and aaa.bbb.ccc.ddd is the DNS server IP address... - Page 12 Four-Faith Smart Power Technology Co., Ltd. can transmit at most 8192 bytes data one time through extra application CTRL: make IP MODEM online through a phone call to IP MODEM protocol. DATA: send special serial data to make IP MODEM online MIXD: the combination of SMSD, CTRL, DATA.
- Page 13 Four-Faith Smart Power Technology Co., Ltd. 14400 --- 14400 bps 19200 --- 19200 bps ◆ Databit, Parity, Stopbit 38400 --- 38400 bps 56000 --- 56000 bps 57600 --- 57600 bps 115200 --- 115200 bps 8N1 --- 8 Databit, No parity, 1 Stopbit...
- Page 14 Four-Faith Smart Power Technology Co., Ltd. ◆ Device ID The time interval used to determine whether the serial data frame transmission has completed, IP MODEM will send the serial data to the center when two bytes transmit The identity number of IP MODEM, the value should be 8 bytes hex-decimal time interval larger than this item value.
-
Page 15: Other Settings
Four-Faith Smart Power Technology Co., Ltd. AT+RDLWT=xxx This item is only valid when the WorkMode is TCST. It’s the self defined heartbeat xxx: the sleep time until next retry. string, It can be empty, the maximum length is 70 bytes. - Page 16 Four-Faith Smart Power Technology Co., Ltd. AT Command of Call Center: AT+CENT=xxx xxx: call center phone number of ISP ◆ SMS Center APN: access point name. Username: username to login the ISP network. Password: password to login the ISP network...
- Page 17 Four-Faith Smart Power Technology Co., Ltd. This item is only valid when the “Trigger Type” is CTRL or MIXD. In this trigger type, IP MODEM will keeps in idle state until it receives the trigger phone call, then it will This item is valid only when the “Trigger Type”...
-
Page 18: Functions
Four-Faith Smart Power Technology Co., Ltd. ◆ Factory setting This item is valid only when the “Data Center Number” is greater than 1. Restore to factory settings When one of the configured data center lost connection, IP MODEM will try to ◆... -
Page 19: Work State Switch
Four-Faith Smart Power Technology Co., Ltd. Restore settings from a previous saved configure file Appendix 3.7 Work State Switch The following steps describe how to make IP MODEM enter configure state with the Windows XP Hyper Terminal. 1. Press “Start” ”Programs” ”Accessories” ”Communications” ”Hyper Terminal”... - Page 20 Four-Faith Smart Power Technology Co., Ltd. 3. Choose the correct COM port which connect to IP MODEM, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200 5. Complete Hyper Terminal operation, It runs as following...
- Page 21 Four-Faith Smart Power Technology Co., Ltd. Re-power IP MODEM, put mouse focus on the Hyper Terminal and press “s” key continuously until IP MODEM enter configure state as following 7. IP MODEM has entered configure state, you can configure the parameters through...
