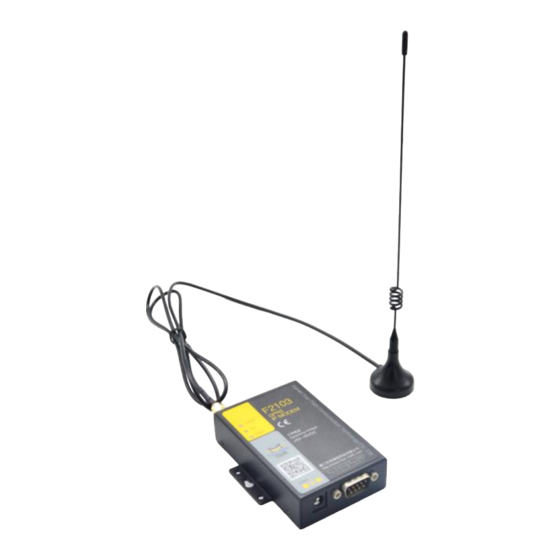

F2X03 Series
IP MODEM
User Manual
F2X03 Series IP MODEM
The user manual is suitable for the following model:
Document Version
Product Name：F2X03
User Manual
Model
Product Type
F2103
GPRS IP MODEM
F2203
CDMA IP MODEM
F2403
WCDMA IP MODEM
F2603
EVDO IP MODEM
Xiamen Four-Faith Communication Technology Co., Ltd.
Add： J1-J3, 3rd Floor, No.44,Guanri Road, Software Park, Xiamen, China
Postal Code:361008
Tel：+86 -592-6300320
Fax:+86-592-5912735
http://en.four-faith.com
V2.0.0
Page
Total:33
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Four-Faith F2 03 Series
Summary of Contents for Four-Faith F2 03 Series
- Page 1 Product Type F2103 GPRS IP MODEM F2203 CDMA IP MODEM F2403 WCDMA IP MODEM F2603 EVDO IP MODEM Xiamen Four-Faith Communication Technology Co., Ltd. Add： J1-J3, 3rd Floor, No.44,Guanri Road, Software Park, Xiamen, China Postal Code:361008 Tel：+86 -592-6300320 Fax:+86-592-5912735 http://en.four-faith.com...
- Page 2 3. Add “PPP Authentication Mode” 2016-10-24 V2.0.0 Modify text version name and version WWJ/HFQ number Xiamen Four-Faith Communication Technology Co.,Ltd. Page 2 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://en.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735...
- Page 3 Xiamen Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
- Page 4 F2X03 Series IP MODEM User Manual Note: There may be different components and interfaces in different model,please in kind prevail. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 4 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://en.four-faith.com...
-
Page 5: Table Of Contents
3.5.2 IP MODEM Settings.....................20 3.5.3 Other Settings....................... 25 3.6 Functions........................... 29 3.7 Work State Switch......................30 Appendix............................31 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 5 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://en.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735... -
Page 6: Chapter 1 Brief Introduction Of Product
Housing: iron, providing IP30 protection Power range: DC 5~35V Stability and Reliability Support hardware and software WDT Xiamen Four-Faith Communication Technology Co.,Ltd. Page 6 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com... -
Page 7: Working Principle
Embedded processing DATA Interface system User interface RS485 serial RS232 serial Power Indicator lights Interface Interface Xiamen Four-Faith Communication Technology Co.,Ltd. Page 7 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735... -
Page 8: Specifications
EVDO Rev. B: Download speed 14.7Mbps, Upload speed 5.4Mbps (optional) TX power <23dBm RX sensitivity <-104dBm Xiamen Four-Faith Communication Technology Co.,Ltd. Page 8 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735... - Page 9 Power Range DC 5~35V Consumption Working condition Consumption Standby 3G:40~55mA@12VDC 2G:36~40mA@12VDC Communication 3G:88~190mA@12VDC 2G:62~68mA@12VDC Physical Characteristics Xiamen Four-Faith Communication Technology Co.,Ltd. Page 9 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735...
- Page 10 Weight 205g Environmental Limits Item Content Operating -35~+75ºC(-31~+167℉) Temperature Storage -40~+85ºC(-40~+185℉) Temperature Operating Humidity 95% (Non-condensing) Xiamen Four-Faith Communication Technology Co.,Ltd. Page 10 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735...
-
Page 11: Chapter 2 Installation Introduction
RS485 data cable optional Manual CD Certification card Maintenance card 2.3 Installation and Cable Connection Dimension: (unit: mm) Xiamen Four-Faith Communication Technology Co.,Ltd. Page 11 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735... - Page 12 Insert DB9F end of the RS232/RS485 data cable into the DB9M interface of IP MODEM, and connect the other end with user’s device. The signal connection of the RS232 data cable is as follows: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 12 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China...
-
Page 13: Power
Warning: When we use other power, we should make sure that the power can supply power above 4W. We recommend user to use the standard DC 12V/0.5A power. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 13 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China... -
Page 14: Indicator Lights Introduction
Data is communicating No data Online IP MODEM has logged on network IP MODEM hasn’t logged on network Xiamen Four-Faith Communication Technology Co.,Ltd. Page 14 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735... -
Page 15: Chapter 3 Configuration
AT commands. The following describes how to configure IP MODEM with the configure software tool and the corresponding AT command of each configuration item. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 15 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China... -
Page 16: Run The Configure Tool: Ip Modem Configure.exe
Waiting IP MODEM Enter Configure State...” 3.4 Re-power IP MODEM After Re-power IP MODEM, The configure tool will make it enter configure state. At the Xiamen Four-Faith Communication Technology Co.,Ltd. Page 16 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com... -
Page 17: Configuration
IP Address and Port of the Main DSC, It’s better to set the port greater than 1024. AT command of the Main DSC IP address or domain name: AT+IPAD=xxx Xiamen Four-Faith Communication Technology Co.,Ltd. Page 17 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China... - Page 18 The port value Example: Set IP address of center 3 as 166.111.8.238, and port 5001, the AT command is as following: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 18 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
- Page 19 AT command of 2~5 DNS Server AT+DNSSVRn=aaa.bbb.ccc.ddd n is 1~4 correspond to center 2~5 DNS server. aaa.bbb.ccc.ddd is the DNS server IP address Xiamen Four-Faith Communication Technology Co.,Ltd. Page 19 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
-
Page 20: Ip Modem Settings
IP MODEM into sleep state in idle time. When there is application data to transmit, IP MODEM can be triggered online ready for data transmission. There are total five methods to make IP MODEM online: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 20 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China... - Page 21 8N1 --- 8 Databit, No parity, 1 Stopbit 8E1 --- 8 Databit, Even parity, 1 Stopbit 8O1 --- 8 Databit, Odd parity, 1 Stopbit AT Command: Xiamen Four-Faith Communication Technology Co.,Ltd. Page 21 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
- Page 22 AT Command: AT+RETMAIN=x x : 0 or 1 Xiamen Four-Faith Communication Technology Co.,Ltd. Page 22 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
- Page 23 AT Command: AT+BYTEINT=xxx xxx: bytes interval time value（millisecond） ◆ Hex heartbeat and registered package Xiamen Four-Faith Communication Technology Co.,Ltd. Page 23 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
- Page 24 This item is only valid when the WorkMode is TCST. It’s the self defined heartbeat string, It can be empty, the maximum length is 70 bytes. AT Command: AT+LINKRGST=xxx xxx：self defined heartbeat string Xiamen Four-Faith Communication Technology Co.,Ltd. Page 24 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
-
Page 25: Other Settings
1, all the transmission is transparent. AT Command: AT+STRAIGHT=x x：0 or 1 3.5.3 Other Settings ◆ Network Xiamen Four-Faith Communication Technology Co.,Ltd. Page 25 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com Tel： +86-592-6300320 Fax：+86-592-5912735... - Page 26 ISP AT Command of PPP Authentication Mode: AT+PAUTH=xxx xxx: authentication mode. xxx can be “AUTO”, “CHAP” or “PAP” Xiamen Four-Faith Communication Technology Co.,Ltd. Page 26 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
- Page 27 : trigger phone number ◆ SMS Trigger Password This item is valid only when the “Trigger Type” is SMSD or MIXD, IP MODEM will keeps Xiamen Four-Faith Communication Technology Co.,Ltd. Page 27 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
- Page 28 : the MTU value ◆ Multi Center Reconnect Interval This item is valid only when the “Data Center Number” is greater than 1. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 28 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
-
Page 29: Functions
Display the communication baudrate ◆ Auto Detect Simple way to determine whether IP MODEM work fine ◆ Save Output Xiamen Four-Faith Communication Technology Co.,Ltd. Page 29 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com... -
Page 30: Work State Switch
Reboot Device, Enter Communication State: This function button is used to reboot IP MODEM and make the software switch to Communication state Xiamen Four-Faith Communication Technology Co.,Ltd. Page 30 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com... -
Page 31: Appendix
2. Input connection name, choose “OK” 3. Choose the correct COM port which connect to IP MODEM, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Xiamen Four-Faith Communication Technology Co.,Ltd. Page 31 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China... - Page 32 5. Complete Hyper Terminal operation, It runs as following Re-power IP MODEM, put mouse focus on the Hyper Terminal and press “s” key continuously until IP MODEM enter configure state as following Xiamen Four-Faith Communication Technology Co.,Ltd. Page 32 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China...
- Page 33 F2X03 Series IP MODEM User Manual 7. IP MODEM has entered configure state, you can configure the parameters through AT command. Xiamen Four-Faith Communication Technology Co.,Ltd. Page 33 of 33 Add： J1-J3, 3 Floor, No.44, Guanri Road, Software Park, Xiamen .361008.China http://www.four-faith.com...
