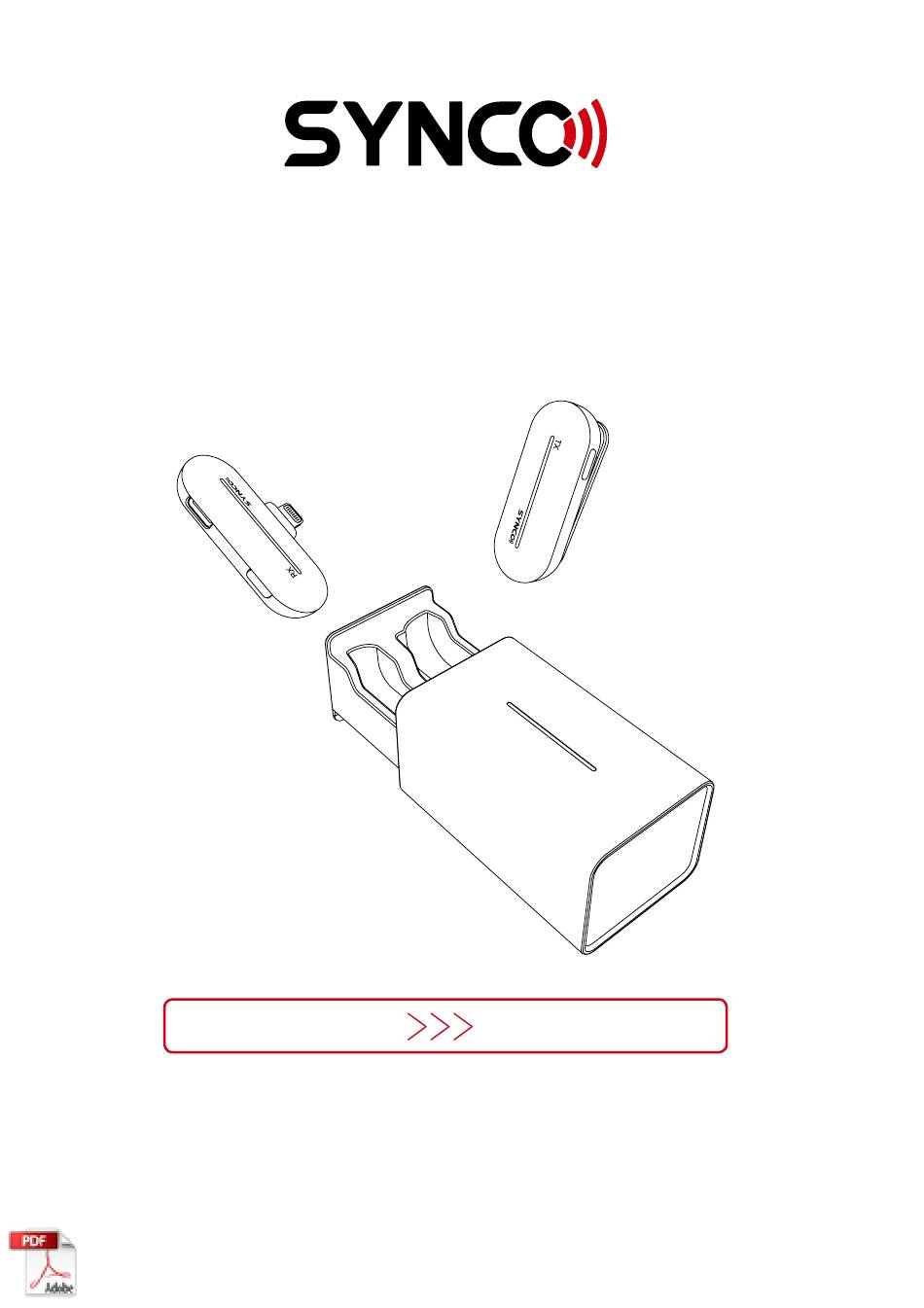

- Page 1 User Manual Microphone P1L Thank you for choosing SYNCO product. Please read this manual carefully before use and follow all instructions mentioned herein.
-
Page 2: Package List
Caring For Your SYNCO Product Please keep the product in a dry, clean, dust-free environment. Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage. Use only a soft and dry cloth for cleaning the product. -
Page 3: Product Instruction
Product Instruction TX Transmitter ① Power ② Working Indicators ③ Built-in Mic ④ Contacts ⑤ Pocket Clip RX Receiver ① Vocal Effects ② Type-C Port ③ Working Indicators ④ Connector ⑤ Contacts Wireless Charging Case ① Pairing/ Power Prompt ② Type-C Port ③... - Page 4 Illuminate sequentially (Light effect on) System paired, normal working Single light keeps on (Light effect off) System paired, normal working Working Indicators (Red Light) Single light keeps on (In the Charging, and then turns off when fully case) charge Indicator — Receiver Working Indicators (White Light) Flash concurrently System unpaired...
- Page 5 Operations 1. Usage ① Tap on the right side of charging case to pop out the drawer ② Take the TX and RX out ③ TX should boot automatically as it leaved the case, and switch itself off automatically when returning to the case.
-
Page 6: Specifications
6. Charging phone device Plug your phone charging cable into the Type-C Port on the receiver. 7. In-Ear monitoring Plug the included Type-C to 3.5mm Adapter into the Type-C Port on the receiver. Then plug in your headphones to real-time monitor mic recording and device’s backgrounding. - Page 7 RX Receiver Wireless Transmission Digital 2.4GHz RF Frequency Band 2400-2483.5MHz Working Distance 492ft/150m(LOS area); 164ft/50m(NLOS area) Sampling Rate 48KHz Bit Depth 16Bit Antenna Built-in Monitoring 3.5mm In-Ear Monitoring Connector Lightning Output Power Input Type-C Dimensions 49x30x9 (mm) Material Weight Wireless Charging Case Battery Type Built-in Lithium Battery, 300mAh Battery Charging Time...
-
Page 8: Warranty
Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided. If the SYNCO product is out of the warranty coverage, the service and the parts cost will be charged. - Page 9 Guangzhou Zhiying Technology Co., Ltd Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000 support@syncoaudio.com www.syncoaudio.com https://www.facebook.com/syncomicrophones...
-
Page 10: User Information
WARRANTY CERTIFICATE Please register your warranty. Meanwhile, you are welcomed to contact us via Email：support@syncoaudio.com Customer Name: Phone Number: USER INFORMATION Email: Address: Sales Date: Model: SALES INFORMATION Product Code: Dealer: Service Date: Technician: REPAIR RECORD Issue: RESULT Solved Unsolved Returned(Replaced)
