Related Manuals for VTech VM3252
Summary of Contents for VTech VM3252

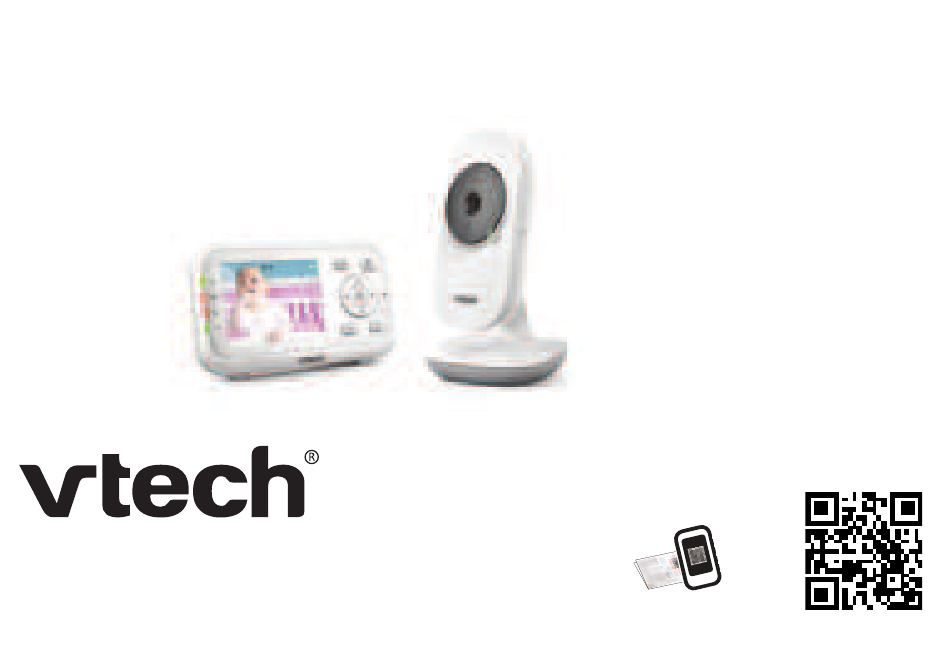

- Page 1 VM3252 Go to www.vtechcanada.com to register your product for enhanced VM3252-2 warranty support and the latest VTech product news. Video Monitor For more support information Quick start guide (Canada version) VM3252...
- Page 2 Electromagnetic fields (EMF) on a soft surface such as a bed, sofa or rug. This product This VTech product complies with all standards regarding should never be placed near or over a radiator or heat electromagnetic fields (EMF). If handled properly and register.
- Page 3 What’s in the box 1 set for VM3252 2 sets for VM3252-2 Quick start guide...
- Page 4 Connect the baby monitor Install the battery The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, make sure you use both battery and AC power at the same time. With the battery alone, the parent unit can cordlessly run for a short time only. Notes •...
- Page 5 Connect the baby monitor Connect the baby monitor Notes Notes • Use only the power adapters supplied with this product. • Make sure the baby monitor is not connected to the switch controlled electric outlet. • Use only the power adapters supplied with this product. •...
- Page 6 Positioning the baby monitor Positioning the baby monitor > 3ft (1m) > 3ft (1m) > 3ft (1m) > 3ft (1m) < 3ft (1m) < 3ft (1m) Caution Caution • The default volume of your parent unit is level 3, and the maximum volume is level 5. If you •...
- Page 7 Basic operation - Parent unit Adjust speaker volume Zoom Press VOL+ / VOL- to adjust your parent Press to zoom in or out. unit speaker volume. The sound sensitivity setting also affects the speaker volume. For details, refer to Sound sensitivity and sound activation. Talk to your baby unit Turn off the screen Press and hold TALK and speak to your...
- Page 8 Use the menu Use the menu Press MENU to enter the menu, or save a setting. You can use the parent unit for advanced settings or operations, such as to play or stop the baby unit lullaby, or to adjust the baby Press MENU to enter the menu, or save a setting.
- Page 9 - If the QR code is not clearly displayed, adjust your camera’s focus by moving your device closer or further away until it is clear. VM3252 2. Search for the model - VM3252. You can also call our Customer Support at 1 (800) 267-7377 for help.
- Page 10 Patrol mode • Displays when the parent unit is in PATROL mode. • For VM3252-2 only Current view status • Displays the baby unit number of the baby unit that is being viewed.
- Page 11 You can select, play, or stop a lullaby. Patrol mode You can monitor your baby in PATROL mode. • For VM3252-2 only Warning icons and messages The battery is empty and needs to be recharged. /Battery low at Parent Unit Operation is in progress.
- Page 12 Parent unit lights LINK • On when the parent unit is linked to the baby unit. • Flashes when the link to the baby unit being viewed is lost. • On when the parent unit is connected to AC power, or the battery is charging.
- Page 13 Sound sensitivity and sound activation Adjust the sound sensitivity of the baby unit You can choose to hear sounds from the baby unit all the time, or to hear sounds that exceed a certain level. You can use the parent unit to adjust the microphone sensitivity of your baby unit.
- Page 14 Dim mode The dim mode is to help you save the parent unit power. Your parent unit display will dim automatically after 10 minutes of inactivity, in which there is neither key pressed nor alert received from the baby unit. 10 min inactivity Press any buttons Note...
- Page 15 Night vision The baby unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. When the baby unit being viewed detects low light levels, the infrared LEDs are switched on automatically. The images from the baby unit are in black and white, and appears on the screen.
- Page 16 For VM3252-2 only Status check - Two baby units If you are viewing baby unit , the POWER LED light of baby unit turns on. As baby unit is not being viewed, its POWER LED light flashes. Note • If you power on only one baby unit, your parent unit may display and the LINK LED light flashes.
- Page 17 Mount the baby unit on dry wall (optional) Items to purchase You will need to purchase the following items separately to mount your baby unit: 2 screws 2 anchors Note • The types of screws and anchors you need depend on the composition of the wall. Insert the screws into the holes and tighten the screws until only 1/4 inch of the screws are exposed.
- Page 18 Frequently asked questions Below are the questions most frequently asked about the baby monitor. Why does the Try the following (in the order listed) for common cure: baby monitor 1. Disconnect the power to the baby units and the parent unit. not respond 2.
- Page 19 ® The RBRC seal on the Ni-MH battery indicates that VTech Communications, Inc. is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States and Canada.
- Page 20 Consumer for Products purchased and used in the United States of America and Canada. What will VTech do if the Product is not free from defects in materials and workmanship during the limited warranty period (“Materially Defective Product”)? During the limited warranty period, VTech’s authorized...
- Page 21 Product under this limited warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the Product failure is not covered by this limited warranty, or proof of purchase does not meet...
- Page 22 The Crickets At Night sound file was created by Mike Koenig, and is used under the Creative Commons license. The Heart Beat sound file was created by Zarabadeu, and is used under the Creative Commons license. Specifications are subject to change without notice. © 2020 VTech Communications, Inc. All rights reserved. 08/20. VM3252-X_CA_QSG_V4.
