VTech VM3252 Quick Start Manual

Go to www.vtechphones.com VM3252
to register your product for
VM3252-2
enhanced warranty support and
the latest VTech product news.

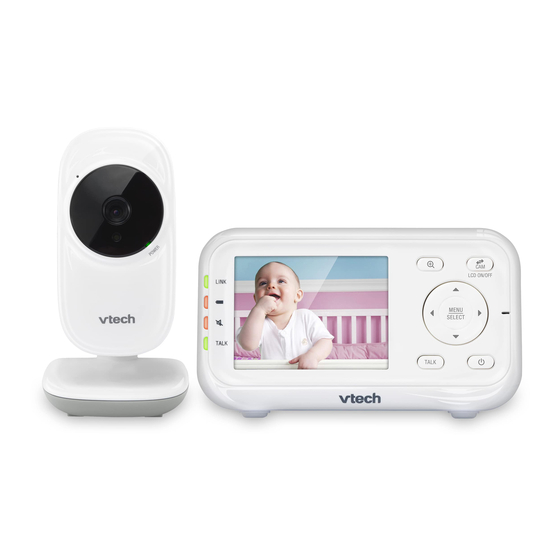

Video Monitor
Quick start guide
What's in the box
VM3252 VM3252-2
THIS SIDE UP
1
Install the battery
THIS SIDE UP
THIS SIDE UP
2
Connect the baby monitor
NOTE NOTES
• The rechargeable battery is pre-installed in your parent unit.
• Use only the power adapters supplied with this product.
• Make sure the baby monitor is not connected to the switch controlled electric outlet.
• Connect the power adapters in a vertical or floor mount position only. The adapters' prongs are
not designed to hold the weight of baby monitor, so do not connect them to any ceiling, under-
the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets.
• Make sure the parent unit, the baby unit and the power adapter cords are out of reach of children.
3
Power on or off the baby monitor
Slide the ON/OFF switch to power
Press and hold to power on or
on or off your baby unit.
off your parent unit.
Long press Long press
4
Positioning the baby monitor
> 3ft (1m)
＞3ft (1m)
＜3ft (1m)
Caution
• The default volume of your parent unit
is level 3, and the maximum volume is
level 5. If you experience high-pitched
screeching noise from your baby
monitor while positioning:
- Make sure your baby unit and parent unit
are more than 1 meter (3 feet) apart, OR
- Turn down the volume of your parent unit.
5
Status check
Once you power on both your baby unit and parent unit, your parent unit displays image
from the baby unit, and the LINK LED light turns on.
The POWER LED light of baby unit turns on.
Basic operation - Parent unit
Talk to your baby unit Use the menu
Press and hold TALK and speak to your Press MENU to enter the menu, or save
parent unit. Your voice is transmitted to a setting. You can use the parent unit for
the baby unit. advanced settings or operations, such as to
play or stop the baby unit lullaby, or to adjust
the baby unit sound sensitivity.
Press and hold
While in the menu:
• Press or to scroll among the menu
options.
• Press SELECT or to enter the desired
submenu.
• Press or to select an item.
• Press SELECT to confirm your selection.
• Press or to exit the submenu.
Submenu
Adjust speaker volume
Main menu
Press VOL+ / VOL- to adjust your parent
unit speaker volume. It determines the
volume of sound transmitted from your
baby units.
Turn off the screen
Press and hold LCD ON/OFF to switch
off the screen. You can still hear sound
from the selected baby unit.
Zoom
Press to zoom in or out.
Long press
Tip
• Press any keys on the parent unit to turn on
the screen again.
