Architectural Area Lighting Cypher CY1 Installation Instructions Manual

17760 Rowland St.
City of Industry, CA 91748
626/968-5666

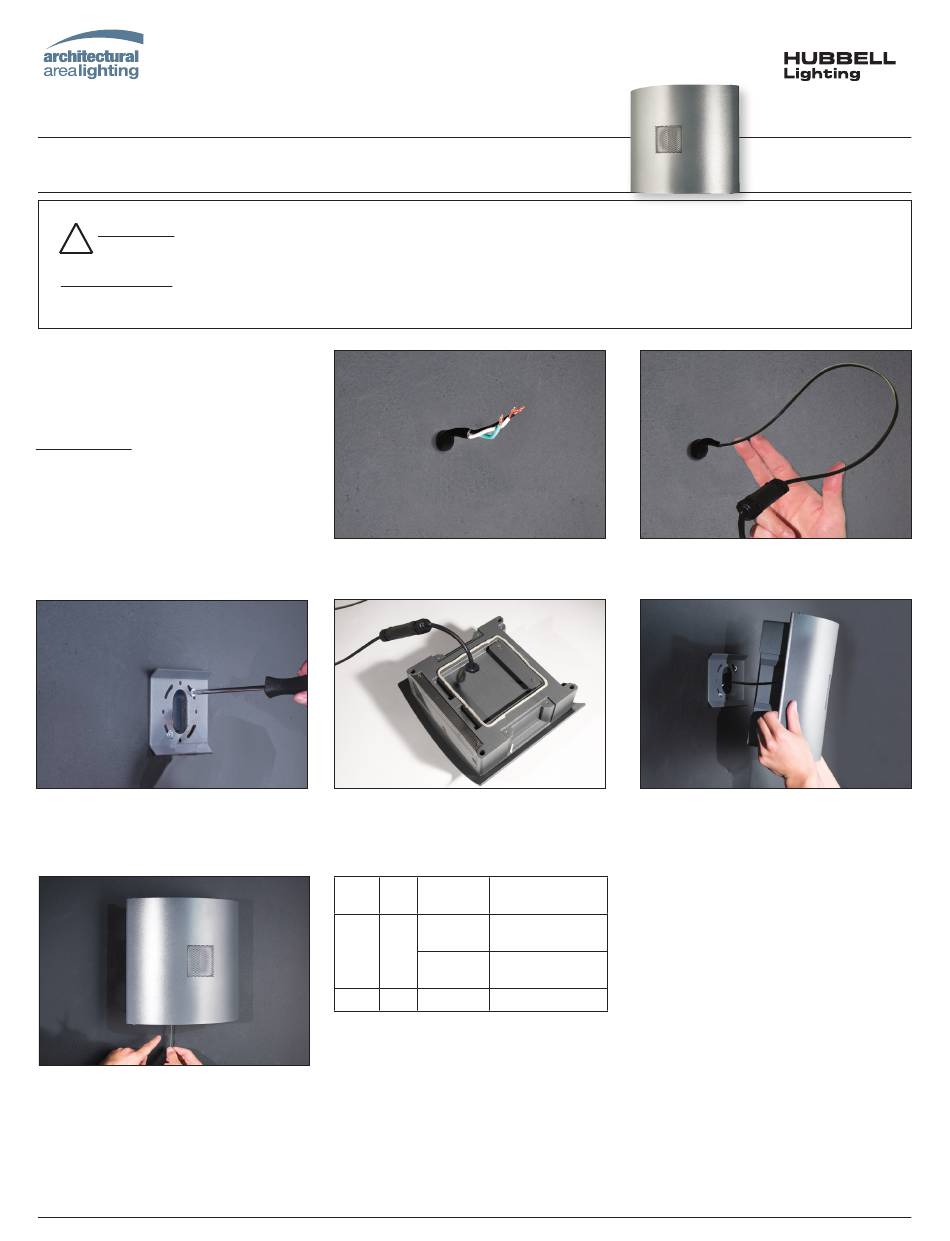

AAL CY1/CY2 Cypher Wall Sconce Installation Instructions
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury.
MAINTENANCE: For optimum performance, a regularly scheduled maintenance program should be established to
retain optimum light output and reduce heat retention.
THE CYPHER FEATURES UNIVERSAL
MOUNTING ORIENTATION. ALL MODELS
CAN BE ORIENTED IN AN UPLIGHT OR
DOWNLIGHT POSITION.
Tools Required:
1. Phillips screwdriver
2. 5/64" Allen wrench
3. Silicone sealant
3) Remove the back mounting plate from
the back of the fixture. Secure back
plate to outlet box with provided
8-32 screws.
6) Secure by tightening set screw under
the fixture. Restore power and
check operation.
For warranty see http://www.hubbelllighting.com/resources/warranty
© 2022 ARCHITECTURAL AREA LIGHTING
1) Make sure the power is off prior to
electrical hook up.
4) Apply a bead of recommended silicone
sealant to the back of the fixture prior
to
hanging it to the wall.
2 2 A84023
1 1 93064405
93064398
ITEM# QTY PART#
EC Rev A
2) Connect provided quick-disconnector
to main line.
5) Hang the fixture on the back plate.
Ensure fixture seats flush against the wall.
• IP66
8-32X 1/2" Phil-
• Max ambient temperature 50ºC
lips Head Screw
Wall Mounting
The light source contained in this
Plate - CY1
luminaire shall only be replaced by the
Wall Mounting
manufacture or his service agent or a
Plate - CY2
similar qualified person.
DESCRIPTION
Part No.
Last Update March 9, 2022 11:35 AM
Page 1
®
