Architectural Area Lighting PROS Providence Small Installation Manual

16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
www.aal.net
LED Upgrade Kit Installation Guide
TM
Fixture: PROS - Providence Small
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
!
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
Examine all parts that are not intended to be replaced by the retrofit kit for damage and replace any damage
parts prior to installation of the retrofit.

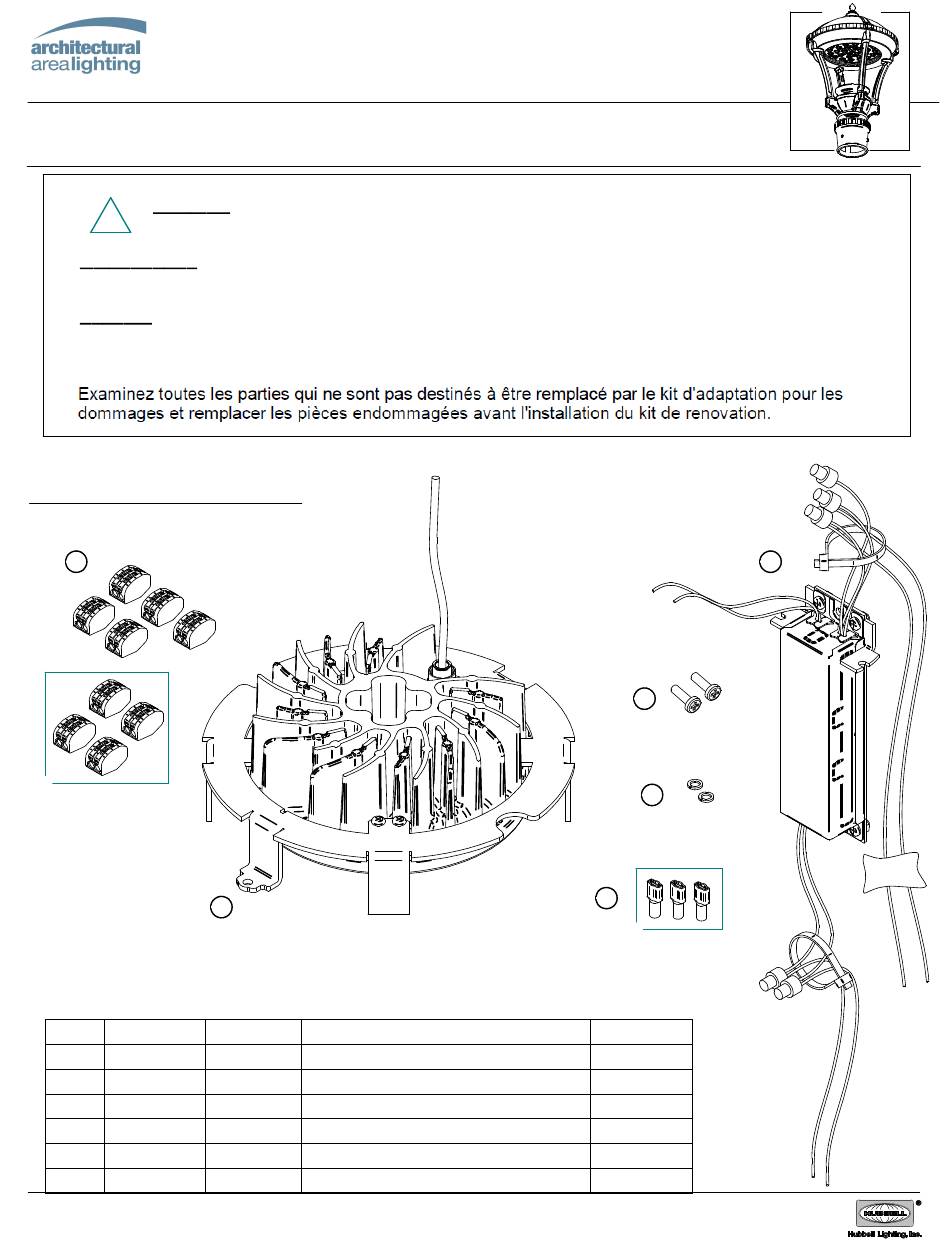

UPGRADE KIT CONTENTS
3
ADD 4 MORE FOR
TRA59D / WMA59D
ARM OPTIONS ONLY
6 3
5 2
4 2
3 AS NOTED
2 1
1 1
ITEM # QTY
93065348 REV A
1
A74011 DISCT3M MNI 14-250DFI
A84337 WSHR-No. 10 SPLIT LK SS
A84252 SCR-10-24x3/4 PHH PHMS SS
93035846 CONN-WAGO 2-WIRE 222-412
- LED DRIVER STRAP ASSEMBLY
- LED RETRO-FIT OPTICAL ASSEMBLY
PART # DESCRIPTION
A R C H I T E C T U R A L
6
FOR TRA59U / WMA59U
AS NOTED
NOTES
PAGE 1/5
A R E A L I G H T I N G
2
4
5
ARM OPTIONS ONLY
