Architectural Area Lighting Towne Commons ALN540 Installation Manual

Led retro-fit
Hide thumbs

Advertisement

Quick Links

Download this manual
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
www.aal.net

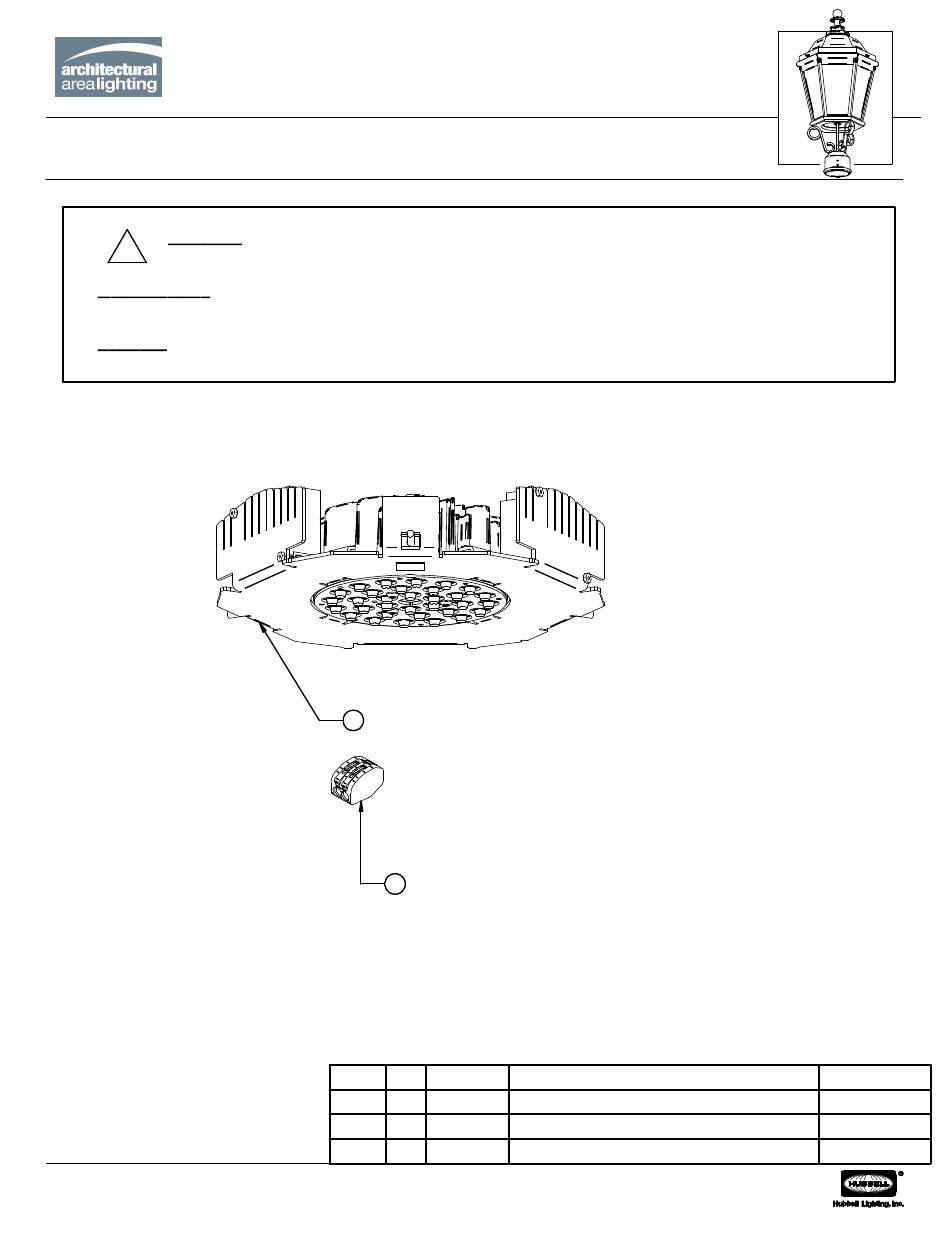

Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
!
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
RETRO-FIT KIT PACKAGE CONTENTS:
93046611 REV. A
