Architectural Area Lighting MicroCore Installation Manual

17760 ROWLAND ST.
CITY OF INDUSTRY
CALIFORNIA 91748
www.aal.net
MicroCore Upgrade Kit Installation Guide TM
Fixture: Universe Collection Medium (UCM) (HID to LED)
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical Code. Failure to do so
!
may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
Examine all parts that are not intended to be replaced by the retrofit kit for damage, and replace any damaged parts
prior to installation of the unit.

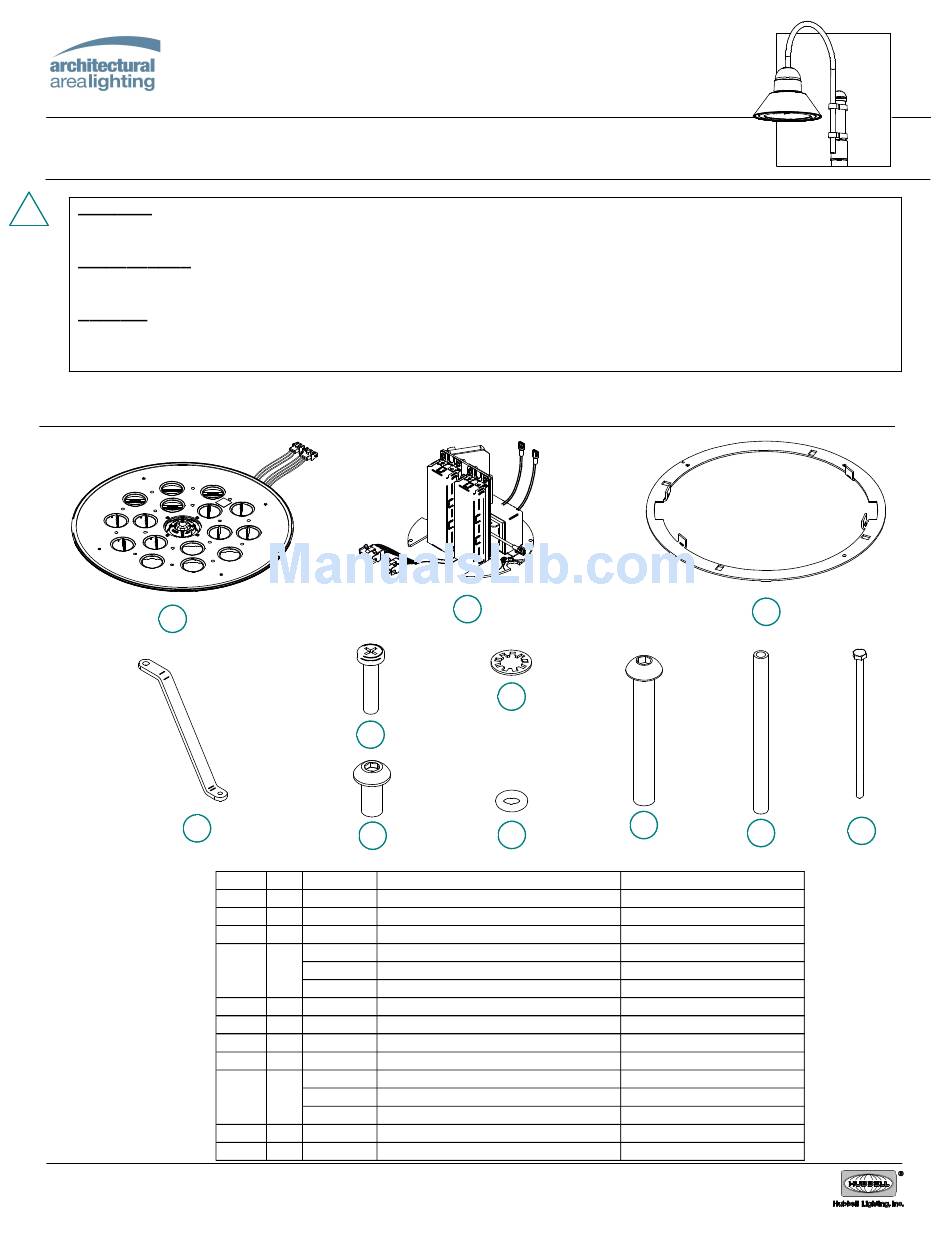

UPGRADE KIT CONTENTS
1
4
93046644 REV. D
Tel(626)968-5666
Fax(626)968-5716
5
7
ITEM # QTY PART #
1 1 - MICROCORE LED ARRAY
2 1 - DRIVER ASSEMBLY
3 1 93052784 RING HOOD UCM-32LED
93061495 BRKT-LENS FRM UCM-ANG-32LED
4 4 93061496 BRKT-LENS FRM UCM-STR-32LED
93061497 BRKT-LENS FRM UCM-SKB-32LED
5 2 A84024 SCR-8-32x3/4 PHH PHMS SS
6 4 A84004 WSHR-1/4 INT TOOTH LK SS
7 4 A84051 SCR-1/4-20x1/2 BTN HD CAP SS
8 4 93030856 GSKT-ORING 3/8ODx3/16ID NPR
A84384 SCR-1/4-20x1.848 SKT BTN HD SS
9 4 A84065 SCR-1/4-20x1 BTN HD CAP SS
93058975 SCR-1/4-20x3 SKT BTN HD SS
10 1 A56414-12 SPCR-3/8inODx .049in x5.058in
11 1 A84119 BOLT-1/4-20x6 HEX HD SS
A R C H I T E C T U R A L
2
6
8
DESCRIPTION
FOR ANG/BEL/FLR HOOD
FOR STR HOOD
FOR SKB HOOD
FOR ANG/STR HOOD
FOR FLR HOOD
FOR BEL/SKB HOOD
FOR UPLIGHT ONLY
FOR UPLIGHT ONLY
PAGE 1/7
A R E A L I G H T I N G
3
9
10
NOTE
11
