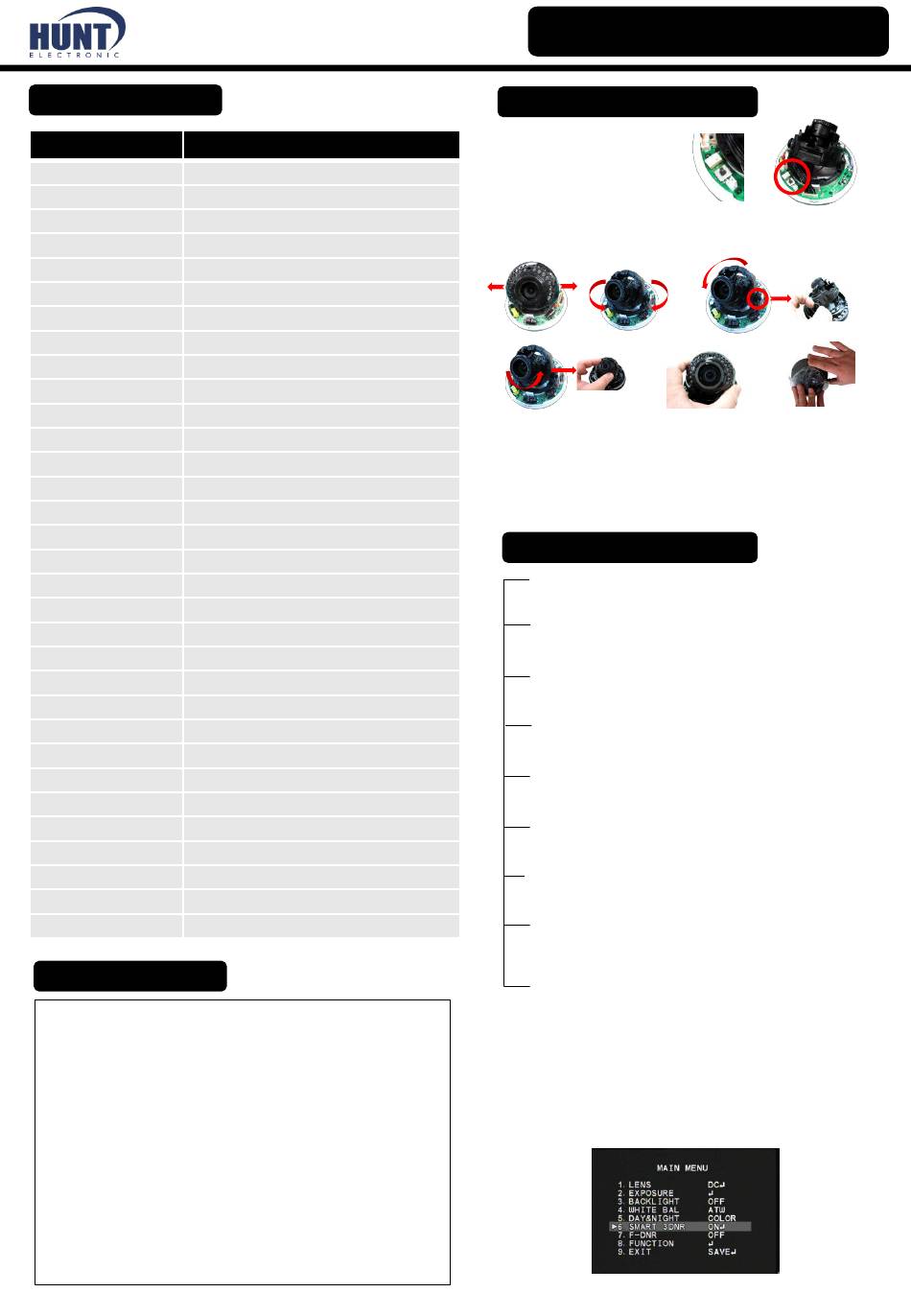

Hunt Electronic HTC-96H36 User Manual

SPECIFICATION
Model No.
IMAGE SENSOR
EFFECTIVE PIXELS
SYNC. FORMAT
RESOLUTION
VIDOE OUTPU T
MIN. ILLUMINATION
IR CONFIGURATION
S/N RATIO
OSD
AGC
SHUTTER
SENS-UP
BRIGHTNESS
D-WDR
BLC
HSBLC
WHITE BALANCE
DAY / NIGHT
SMART 3DNR
D-EFFECT
MOTION DET.
PRIVACY MASKING
D-ZOOM
SMART D-ZOOM
DIS
LESN SHADING CORRECT.
LENS
POWER SOURCE
POWER CONSUMPTION.
OPERATIONAL TEMP.
STORAGE TEMP.
WEIGHT
GENERAL FEATURES
1. HORIZONTAL 700TVL RESOLUTION
2. 42 IR LEDs CONFIGURATION WITH 40MTR IR DISTANCE
3. DAY / NIGHT
4. SMART NOISE REDUCTION
5. SENSE-UP X256
6. D-WDR (WIDE DYMAIC RANGE)
7. DEFOG
8. SMART DIGITAL ZOOM
9. MOTION DETECTION & PRIVACY MASKING
10. DIS (DIGITAL IMAGE STABLIZER)
HTC-96H36
1/ 3" 960H Color CCD Sensor
976(H) X 582(V)
INTERNAL
HORIZONTAL 700TVL
1.0V (P-P) NTSC COMPOSITE, 75Ω
0.00LUX (IR LED: On)
42 IR LEDs (850nM)
52dB (AGC OFF, WEIGHT OFF) OR MORE
BUILT-IN
OFF / LOW / MIDDLE / HIGH SELECTABLE
AUTO / FLK / MANUAL / 1/50
OFF / AUTO (X2~X256)
1~100 STEPS (LEVEL ADJUSTABLE)
ON/OFF Level Selectable
LOW / MIDDLE / HIGH SELECTABLE
LOW / MIDDLE / HIGH SELECTABLE
ATW / AWB / AWC-SET / MANUAL
COLOR / AUTO / EXT / B/W SELECTABLE
ON/ OFF SELECTABLE
FREEZE / MIRROR/ D-ZOOM / NEG. IMAGE
4 AREA
8 AREA
ON / OFF (X32)
ON / OFF (X5)
ON / OFF SELECTABLE
ON / OFF SELECTABLE
FIXED 3.6MM
12VDC / 24VAC (OPTIONAL)
650mA @12VDC
-10Deg. C ~ +50 Deg. C RH95% MAX.
-20Deg. C ~ +50 Deg. C RH95% MAX.
0.5Kg
USER'S MANUAL
INDOOR IR DOME CAMERA
OSD CONTROL & MENU TREE
• Push the joystick S/W
to pop up 0SD Menu
and set up your desired
value.
① : 2 Video Out ② : Set/Menu
nd
Lens and Internal 3-Axis Bracket Control
①
Pan Location
③
④
2 Pan(Lens) Location
ND
1. Remove IR LED cover and set the desired Pan Location.
2. Set the Tilt location by loosening the side screw manually.
3. Set the 2 Pan (Lens)location with the lens holder.
nd
4. Tighten the side screw manually and recover the IR LED cover.
5. Set the desired zoom and focus and put the dome cover.
OSD MENU TREE & MAIN MENU
LENS
● DC LENS ● MANUAL ● VIDEO
EXPOSURE
● SHUTTER ● AGC ● SENS-UP
BACKLIGHT
● OFF ● D-WDR ● BLC
WHITE BAL.
● ATW ● AWB ● AWC->SET ● MANUAL
DAY & NIGHT
● COLOR ● AUTO ● EXT ● B/W
SMART 3DNR
● VALUE ● SMART NR ● SMART LEVEL ● SENSITIVITY ● RETURN
F-DNR
● OFF ● AUTO ● MANUAL
FUNCTION
● MOTION ● PRIVACY
● COMM ADJ. ● SYNC
EXIT
1) LENS
<DC LENS / MANUAL>
- Recommend Lens set as the designated camera default
DC LENS <Brightness / IRIS Speed / Return>
Brightness : 1-100 steps adjustable
Iris Speed : If necessary, control Iris speed (1-5 steps)
MANUAL <Brightness / Return>
①
②
②
Titl Location
⑤
● RETURN
● HSBLC
● D-EFFECT ● IMAGE ADJ.
● LANGUAGE ● RETURN
