HTC-11G28DID
The DSP 3-Axis Color DOMED camera HTC-11G28DID incorporates advanced 1/3"
high performing CCD Sensor and digital signal processor (DSP) circuit.
HTC-11G28DID(NTSC) Color Camera incorporates the 1/3" CCD sensor 380,000 pixels
HTC-11G28DID(PAL) Color Camera incorporates the 1/3" CCD sensor 440,000 pixels
GAIN CONTROL(GC)- ON/OFF Switch
The adoption of an AUTOMATIC GAIN CONTROL (AGC) provides clear image in low
light condition.
ELECTRONIC SHUTTER(ES)- ON/OFF Switch
The 3-Axis Color DOMED Camera HTC-11G28DID incorporates the Electronic Shutter
up to 1/100,000.
BACK LIGHT COMPENSATION (BLC)—ON/OFF Switch
As you take a picture with strong light behind the subject, the picture would be looked
very dim on the subject.
In this case, you should select BLC ON, the AES should be in ON position.
NOTE: When you select BLC ON, the AES should be in ON position.
LENS
The Color DOMED Camera HTC-11G28DID includes a 2.8~10 mm board lens
3-Axis
applications.
3-Axis COLOR DOME

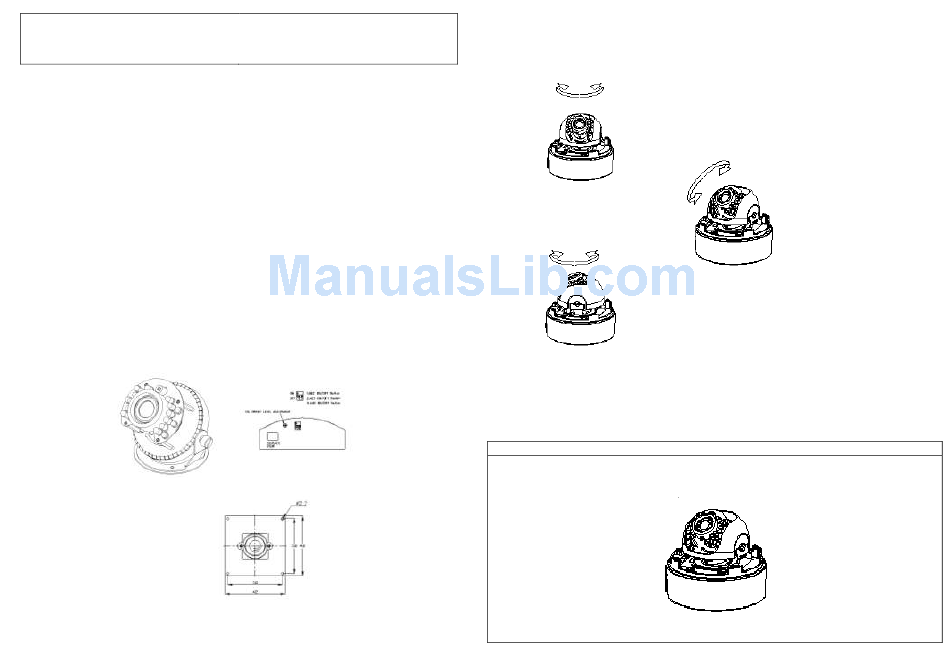

3-AXIS ADJUSTMENTS

The 3-Axis camera maximum rotation and placement angel diagrams are shown in the
following.

INSTALLATION PROCEDURE

Camera will be installed as below when Ex-factory
1
○
1 Horizontal Rotation: 180°
○
2 Tilt: 75°
○
3 Pan: 175°
