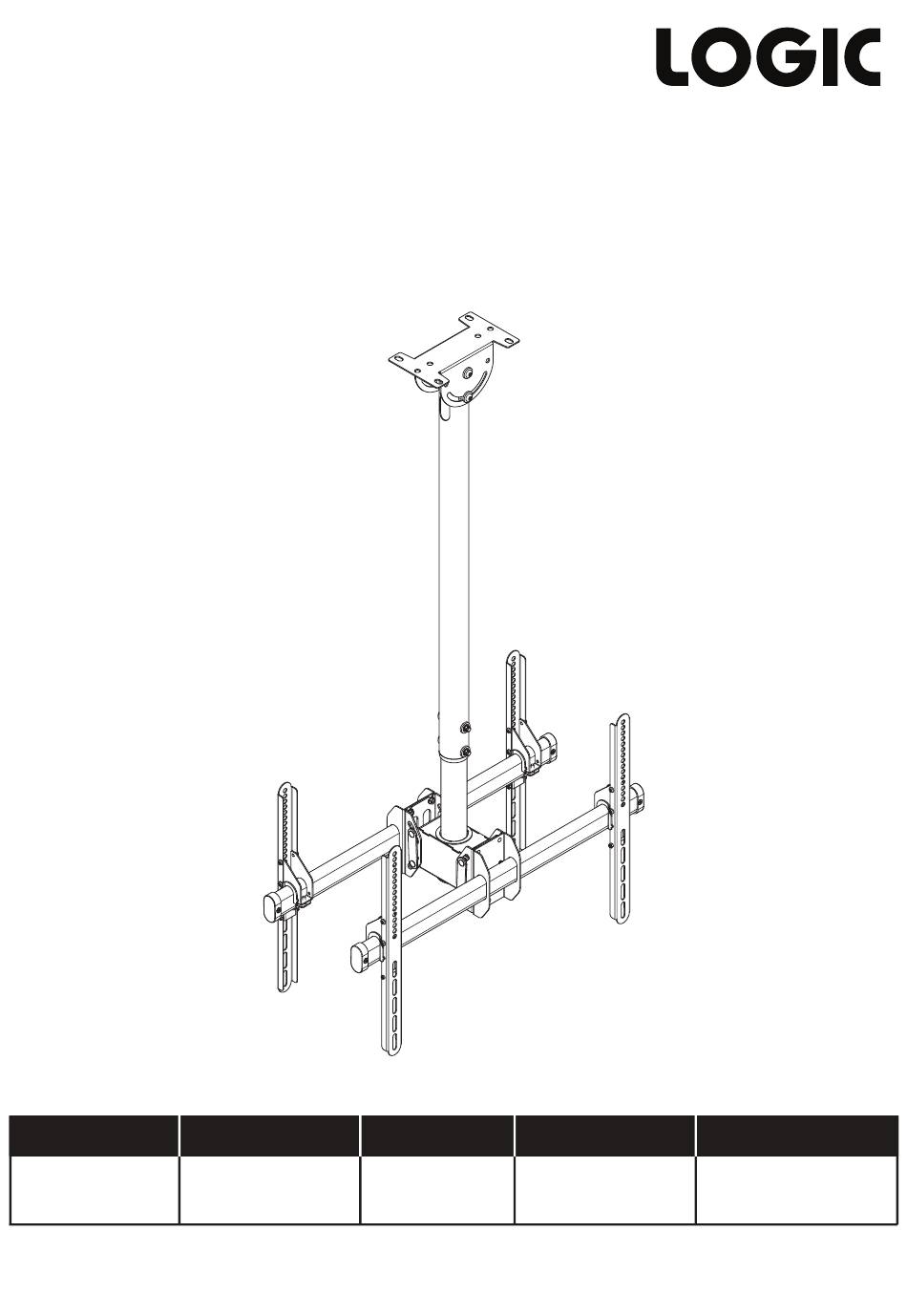

- Page 1 INSTALLATION MANUAL CEILING MOUNT MODEL SERIES VESA DISPLAY SIZE MAX LOAD LG-CMBB-65 Ceiling Mount 200x200 to 42” to 65” 220 lbs (100 kg) 600x400 www.logicav.in...
- Page 2 Checklist Connecting Horizontal bracket x 2 Interface bracket x 4 W-A: Anchor bolt x 4 rod x 1 M-A: M8 X 65 x 2 M-A: M8 x 2 M-A: Metal M-A: Plastic washer x 4 washer x 4 M-B: M8 X 25 x 8 M-B: Metal M-C: M6 X 20 X 8 M-C: Metal...
-
Page 3: Product Dimension
1. Product Dimension Dimension in mm 2. Installation Choose below method for fixing projector mount. ATTENTION: Drilling the ceiling for the projector mount should be executed by a craftsperson only Exercise care to prevent any scar or damage to the wall. CAUTION : Wear safety glasses while operating power equipment. - Page 4 CEILING CEILING 2. Place the id rod and then insert the bolt nut. (Refer M-A in the check list) 3. Remove the nut from the horizontal bracket and place on the ceiling mount then insert the nut. 4. Place the interface bracket on the TV/ display and insert the washer and screw (Refer the checklist for the suitable screw and washer) www.logicav.in...
- Page 5 CEILING 6. Remove the clamp screw and place the TV/display on the ceiling mount CEILING 7. After placing the display insert screw to the clamp www.logicav.in...
- Page 6 Angle adjustment details 8. Slightly loosen the screw to adjust the angle 9. Slightly loosen the screw to adjust the angle www.logicav.in...
- Page 7 Angle adjustment details 10. Slightly loosen the screw to adjust the angle www.logicav.in...
- Page 8 CEILING Final view after installing the mounted Projector on the Ceiling www.logicav.in...
