Summary of Contents for Zumimall BF-A60

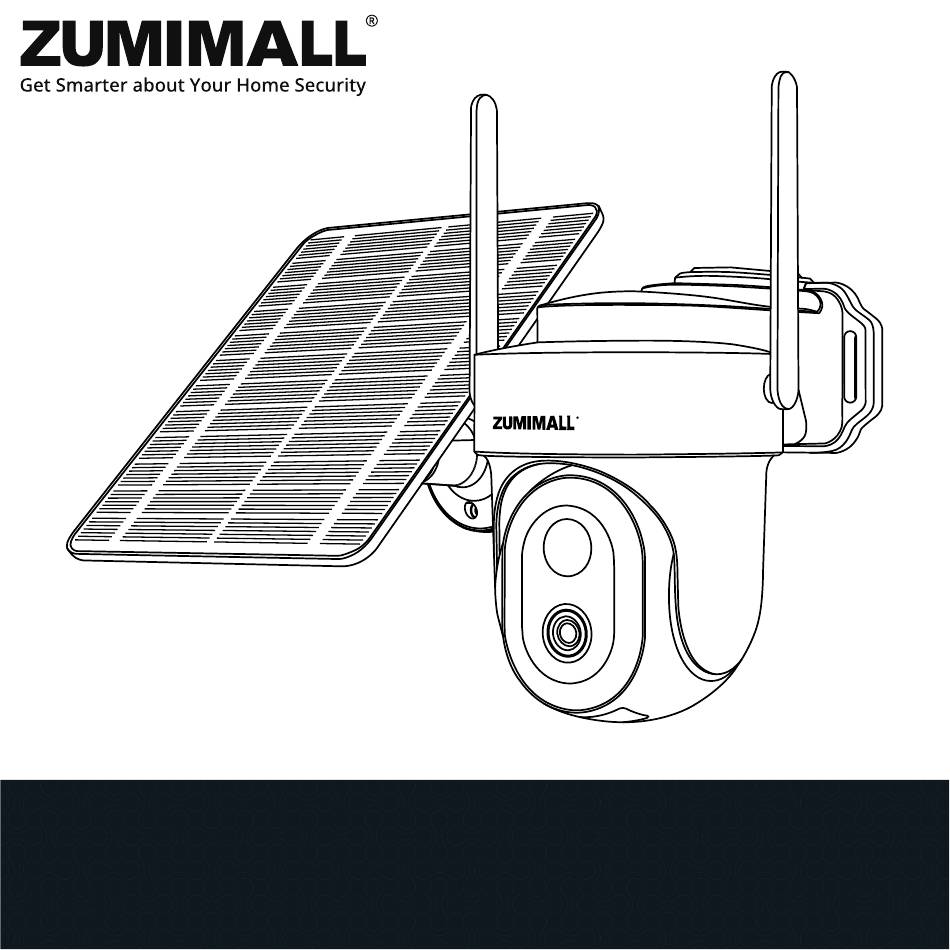

- Page 1 BF-A60 AOV Wireless Security Camera QUICK START GUIDE...
- Page 2 Brand Story Leading the Way in Affordable, Advanced Home Security. From our inception in 2008, Zumimall has been at the forefront of redefining home security. Our philosophy? Combine top-tier specifications with affordability. Our results? Over a million premium, yet affordable smart security products in homes and businesses worldwide.
-
Page 3: Warranty Service
In addition, Your advice and suggestions are always appreciated. How to Activate the Free 1-year Warranty Extension? Send us the order number and SN number via email. Please email us within 30 days of receiving the camera. Email: Support@zumimall.com Product Service Email: Support@zumimall.com Distributor: Distributor@zumimall.com... -
Page 4: Table Of Contents
CATALOGS PAGE 1. Package List - A60 ------------------------------------------------------------------------------P1 2. Product Diagram -------------------------------------------------------------------------------P2 3. Download and Install App --------------------------------------------------------------------P3 4. Accounts Registration ------------------------------------------------------------------------P4 5. How to Reset the Camera --------------------------------------------------------------------P5 6. Add Camera to App----------------------------------------------------------------------------P6 6.1 Preparations for Connection--------------------------------------------------------------P6 6.2 Adding Methods ----------------------------------------------------------------------------P7 Method 1: Bluetooth Setup(Recommend) -----------------------------------------------P7 Method 2: QR Device Code Setup----------------------------------------------------------P9 7. - Page 5 CATALOGS PAGE 9. Device Menu ------------------------------------------------------------------------------------P17 10. PIR Motion Detection ------------------------------------------------------------------------P18 10.1 Motion Detection Alarm Setting--------------------------------------------------------P18 10.2 Alarm Notification -------------------------------------------------------------------------P19 10.3 Arming Time --------------------------------------------------------------------------------P19 10.4 Record/Playback/Delete -----------------------------------------------------------------P20 11. Operating Mode (AOV) -----------------------------------------------------------------------P21 12. Storage Instructions --------------------------------------------------------------------------P22 13. Multi-Camera Management ----------------------------------------------------------------P23 14.
- Page 6 1. Package List - A60 Camera * 1 Bracket * 1 Manual * 1 Solar Panel * 1 Screw Pack * 2 NOTE: - Micro SD Card and power adapter are not included. - Micro SD references in the text are owned by SanDisk Corporation and are not intended for commercial use.
-
Page 7: Product Diagram
2. Product Diagram Antenna Power Button Reset Button Micro SD Card Slot Charging Indicator Status Light Speaker IR LED Floodlight LED USB-C Port Lens Microphone Power Port DC 5V±10% Power on/off Press power button for 3-5 seconds to turn on/off the camera Status Light Solid red light on: the camera is turning on or malfunctional Blinking red light: awaiting Wi-Fi connection (slowly blinking) -
Page 8: Download And Install App
3. Download and Install App Download ZUMIMALL App from Google Play™ or App Store™. Or scan the QR codes below with your smartphone. NOTE: Google Play™ is a trademark of Google Inc. App Store™ is a service mark of Apple Inc. -
Page 9: Accounts Registration
4. Accounts Registration New user needs to sign up ZUMIMALL App with an email address. Click "Sign up" to create a New Account and follow the steps to complete registration. Step 1 Step 2 Step 3 NOTE: ① Agree to Terms: Review and accept the User Agreement and Privacy Policy before proceeding. -
Page 10: How To Reset The Camera
5. How to Reset the Camera ① Go to the device homepage, select the camera that needs to be reset, and long press it to remove it from the app. ② Press the camera's reset button for 5-10 seconds until you hear the "Boogu" sound. -
Page 11: Add Camera To App
6. Add Camera to App 6.1 Preparations for Connection ① Insert a Micro SD Card: Insert a Micro SD Card into the camera to save video clips, or you can start the 7-day free cloud service. Without a Micro SD Card or cloud service, no video will be saved. -
Page 12: Adding Methods
6.2 Adding Methods Method 1: Bluetooth Setup(Recommend) ① On the homepage, tap "Add" or the "+" icon in the upper right corner, then tap "Add Device". ② If Bluetooth on your phone is not turned on, a pop-up will appear. Please allow it to turn on Bluetooth. - Page 13 ④ Select the 2.4GHz Wi-Fi network you want the camera to connect to and enter the password. When Bluetooth is on, the app will automatically show available 2.4GHz Wi-Fi networks. Note that 5GHz Wi-Fi networks will not be shown. If you can't find your Wi-Fi network, please contact your router provider to check the 2.4GHz Wi-Fi settings.
-
Page 14: Method 2: Qr Device Code Setup
Method 2: QR Device Code Setup ① Click "+", and then select "Scan Code" , and then scan the QR code on your device. QR Code ② Select the device you want to add. Check if your phone Wi-Fi is 2.4GHz, then click "Next". - Page 15 ③ Return to the "ZUMIMALL" application, select the Wi-Fi network and enter the password, then click "Next". NOTE: All routers, including those with 5G capability, also come with a 2.4G signal. Simply set a 2.4GHz Wi-Fi on router settings and select the 2.4G signal during configuration.
-
Page 16: Camera Installation
7. Camera Installation 7.1 Installation Preparation ① Surface Selection: Choose a clean, smooth, and dry surface for mounting the bracket. Avoid uneven surfaces like wood veneer or plaster walls. ② Bracket Mounting: Use the provided positioning stickers and screws to securely attach the bracket to the wall. -
Page 17: Mounting Position And Angle
7.2 Mounting Position and Angle ① Location: Ensure the camera is unobstructed and within Wi-Fi coverage. ② Mounting: Select an appropriate position on the wall to mount the camera. Indoor Outdoor... - Page 18 ③ Angle for Motion Detection: - Aim the camera to cover the lower two-thirds of the field of view, which is the most sensitive to motion. - For close monitoring (e.g., front door), mount the camera 7-10 feet (2-3 meters) high.
-
Page 19: Best Practices For Motion Detection
7.3 Best Practices for Motion Detection - Motion Path: Position the camera so that motion moves side-to-side across its view rather than directly toward or away from it. - Detection Range: Optimal motion detection occurs within 5 to 20 feet (1.5 to 6 meters) from the camera, though it can detect motion up to 33 feet (10 meters). -
Page 20: Solar Panel Installation
8. Solar Panel Installation 8.1 Installation Steps ① Mount the bracket using the mounting template and the screws provided in the package. ② Adjust the angle of the solar panel according to the actual environment, and ensure that the front of the panel is facing up (45° angle is the best inclination angle). -
Page 21: Installation Angle
8.3 Installation Angle - Ensure the solar panel is angled to receive direct sunlight. - Avoid installing the solar panel completely horizontally to prevent the accumula- tion of dust and debris. It is advised to install the solar panel at an angle for optimal sunlight exposure. -
Page 22: Device Menu
9. Device Menu 2025-04-03 11:58:01 AM 03 -26 -2024 12 : 56 :0 8 AM Add Device and Scan Code Two-Way Talk More Functions Select The Intercom Sound Real Time Record Live View Button Camera Name Preset Settings Turn on the Camera Light Device Homepage Siren Messages... -
Page 23: Pir Motion Detection
10. PIR Motion Detection 10.1 Motion Detection Alarm Setting Sensitivity Adjustment: Adjust motion detection sensitivity from 1 to 10. Refer to the image below for settings. Select "Alarm Select "Intelligent Tap on "Settings" Set it up Management" Detection" Sensitivity Detecting Distance 3.3~10ft（1~3m）... -
Page 24: Alarm Notification
10.2 Alarm Notification ① Recording Type This surveillance camera offers dual recording modes to ensure comprehensive coverage: - 24/7 Continuous Recording: Captures all activity non-stop for uninterrupted monitoring. - Intelligent event detection: Automatically trigger recording when human motion or vehicle motion is detected, ensuring that key events are captured effectively. ②... -
Page 25: Record/Playback/Delete
10.4 Record/Playback/Delete ① View Records: On the "MESSAGES" page, tap "Alarm Messages" to view all recorded events. ② Playback/Delete: Use the buttons provided to playback or delete recordings. ③ Save/Share: Screenshots and manually recorded videos from live, history, or cloud pages are saved in Pictures & Videos. These files can be stored in your phone's album or shared directly. -
Page 26: Operating Mode (Aov)
11. Operating Mode (AOV) ① AOV (Always On Vedio) Mode: Combines full frame rate with low frame rate during recording to achieve full day recording, while avoiding false alarms and missed alarms to a greater extent. The camera will continue to capture images at a low frame rate when no motion is detected, forming a video stream;... -
Page 27: Storage Instructions
12. Storage Instructions ① Manual Storage - Go to the live video feed and manually record by clicking the "Record" button to start or stop. - Recordings will be stored in your app's album. - Exiting the live view will automatically stop the recording. ②... -
Page 28: Multi-Camera Management
- However, a camera can be shared from account A to account B. Sharing Steps: ① B downloads the ZUMIMALL App on their phone and creates a new account.(the country selected during registration must be the same as your choice). - Page 29 On the camera's settings You have two ways to share: QR code The person being shared clicks on the Scan this QR code and enter your account number QR code on the "My" page page, tap Share Or enter the account number of the Customise the permissions of the View Shared Records Accepting sharing requests...
-
Page 30: How To Find The Sn Number
15. How to Find the SN Number? If you have any other questions, please send us the SN number of your camera and describe the problem you have encountered. We will resolve it as soon as possible. Email: Support@zumimall.com Click Settings Click Device Information View SN... -
Page 31: Faq
16. FAQ 16.1. Connection Issues Q1: Camera is Not Powering On A1: - Ensure the power switch is turned on. - Charge the battery using a DC 5V/2A adapter. The blue light indicates charging. Q2: Failed to Connect to Wi-Fi During Initial Setup A2: - Verify the correct Wi-Fi password and ensure you are using the 2.4GHz network. -
Page 32: Functionality Issues
Q4: Why Does the Camera Still Not Connect to Wi-Fi After Correctly Selecting 2.4GHz and Entering the Password? A4: - Ensure your camera and phone are on the same network. - Verify that DHCP is enabled on your router. - Confirm your network is 2.4GHz and that the Wi-Fi authentication method is set to WPA2-PSK or a similar method. -
Page 33: Device Setup Issues
Q8: Why Can't I Hear Any Sounds from My Camera? A8: - Ensure the sound icon is turned on for live audio. - Enable the microphone and speaker feature in the sound settings, and set a suitable volume. 16.3. Device Setup Issues Q9: Failed to Scan QR Code on the Phone (Battery is Fully Charged) A9: - Remove the protective film from the camera lens. - Page 34 FCC ID : 2AVKP-BF-A40 Made in China...
