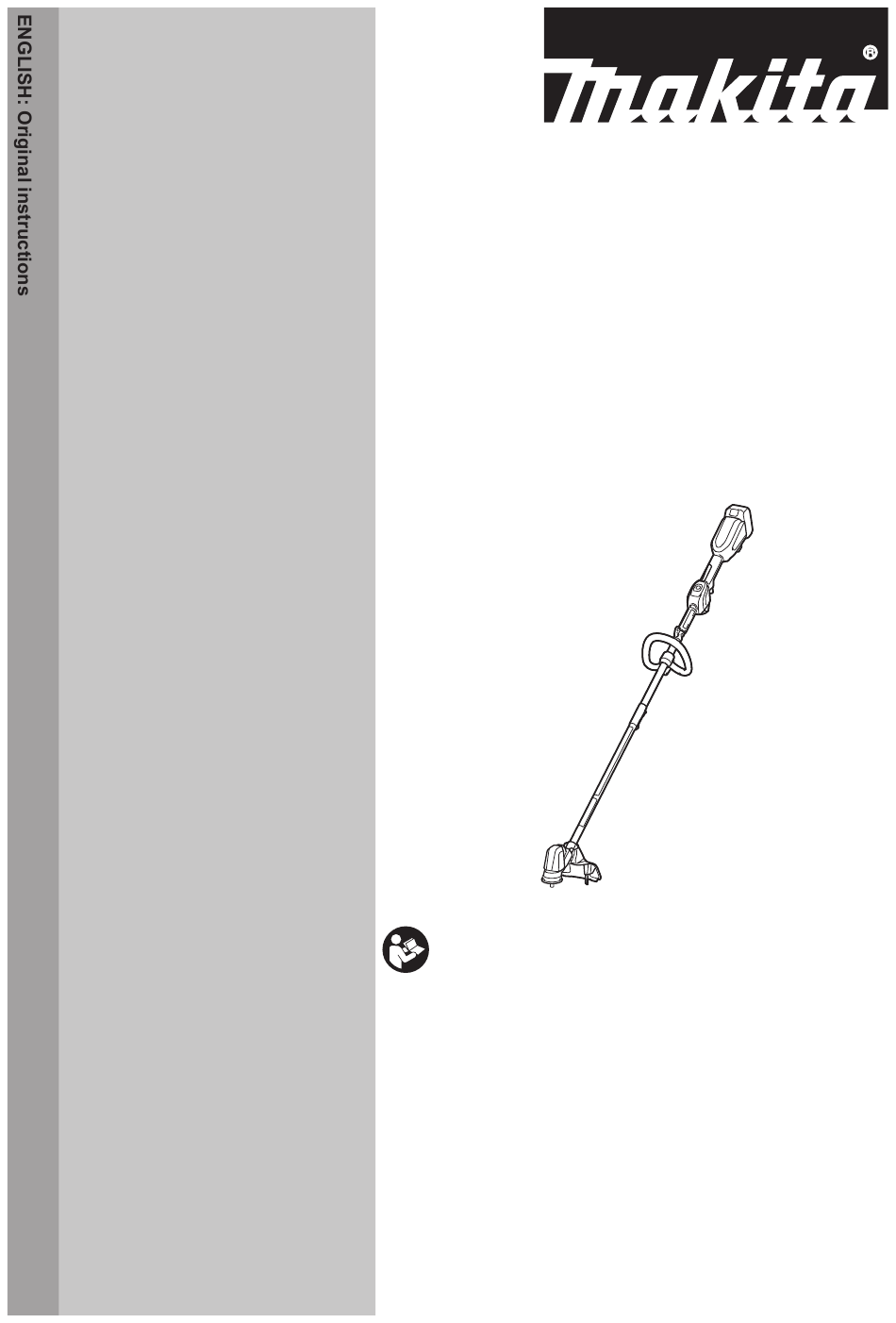

- Page 1 INSTRUCTION MANUAL Cordless Grass Trimmer DUR192L Read before use.
- Page 2 SPECIFICATIONS Model: DUR192L Type of handle Loop handle No load speed 2: 0 - 6,000 min 1: 0 - 4,500 min Overall length 1,670 mm (without cutting tool) Nylon cord diameter 2.0 mm Applicable cutting tool and Nylon cutting head 300 mm cutting diameter (P/N: 198893-8 / 191D89-4)
- Page 3 Save all warnings and instruc- Do not overreach. Keep proper footing and balance at all times. This enables better control tions for future reference. of the power tool in unexpected situations. The term "power tool" in the warnings refers to your mains-oper- Dress properly.
- Page 4 Keep cutting tools sharp and clean. Properly Important safety instructions for the tool maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. WARNING: Read all safety warnings and all Use the power tool, accessories and tool bits instructions.
- Page 5 Wear proper clothing and shoes for safe Recharge only with the charger specified by operation, such as a work overall and sturdy, the manufacturer. A charger that is suitable for non-slip shoes. Do not wear loose clothing or one type of battery pack may create a risk of fire jewelry. Loose clothes, jewelry or long hair can be when used with another battery pack.
- Page 6 During operation, use the shoulder harness if 23. Do not operate the tool in bad weather or if supplied with the tool. Keep the tool on your there is a risk of lightning. right side firmly. 24. Operate the tool only if you are in good phys- Do not overreach.
- Page 7 — Place of the accident 12. Use the batteries only with the products — What happened specified by Makita. Installing the batteries to — Number of injured persons non-compliant products may result in a fire, exces- sive heat, explosion, or leak of electrolyte. — Nature of the injury 13. If the tool is not used for a long period of time, —...
- Page 8 Makita warranty for the Makita tool and Charge the battery cartridge if you do not use charger. it for a long period (more than six months).
- Page 9 Tool / battery protection system FUNCTIONAL DESCRIPTION The tool is equipped with a tool/battery protection sys- tem. This system automatically cuts off power to the motor to extend tool and battery life. The tool will auto- WARNING: matically stop during operation and the indicator lamps Always be sure that the tool is light up if the tool is placed under one of the following switched off and the battery cartridge is removed conditions:...
- Page 10 Overheat protection for tool or battery Main power switch When the tool or battery cartridge is overheated, the Tap the main power button to turn on the tool. tool stops automatically and the indicator lamp lights To turn off the tool, press and hold the main power up in red. Let the tool and/or battery cool down before button until the indicator lamps go off.
- Page 11 To prevent the switch trigger from being accidentally pulled, a lock- Electronic function off lever is provided. To start the tool, depress the lock-off lever and pull the switch trigger. The tool speed increases by increasing Constant speed control pressure on the switch trigger. Release the switch trigger to stop. The speed control function provides the constant rota- tion speed regardless of load conditions.
- Page 12 Insert the upper pipe into the joint while holding Cut the cable tie (nylon fastener), and remove it down the stopper pin. Make sure that the pin pops up from the tool. through the stopper hole and securely locks the lower pipe. ► 1 . Cable tie Handle Loosen the hex socket head bolt on the handle.
- Page 13 Set the angle and position of the handle as shown Loosen the hex socket head bolt on the hanger. in the figure, and then tighten the bolt. Move the hanger to a comfortable working position and then tighten the bolt. ► 1 . Hanger 2. Hex socket head bolt Installing the protector WARNING: Never use the tool without the...
- Page 14 Makita. If you put on the shoulder harness included in the tool pack- age and the shoulder harness of the backpack-type power ► 1 .
- Page 15 Clasp the hook on the shoulder strap to tool's Correct handling of the tool hanger. WARNING: Always position the tool on your right-hand side. Correct positioning of the tool allows for maximum control and will reduce the risk of seri- ous personal injury.
- Page 16 Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the tool Clean the tool by wiping off dust, dirt, or cut off grass with a dry cloth or one dipped in soapy water and wrung out.
- Page 17 95-M10L 100 mm 80 mm 17 ENGLISH...
- Page 18 96-M10L 100 mm 18 ENGLISH...
- Page 19 TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Battery cartridge is not installed. Install the battery cartridge.
- Page 20 Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885822-920 www.makita.com 20200805...
