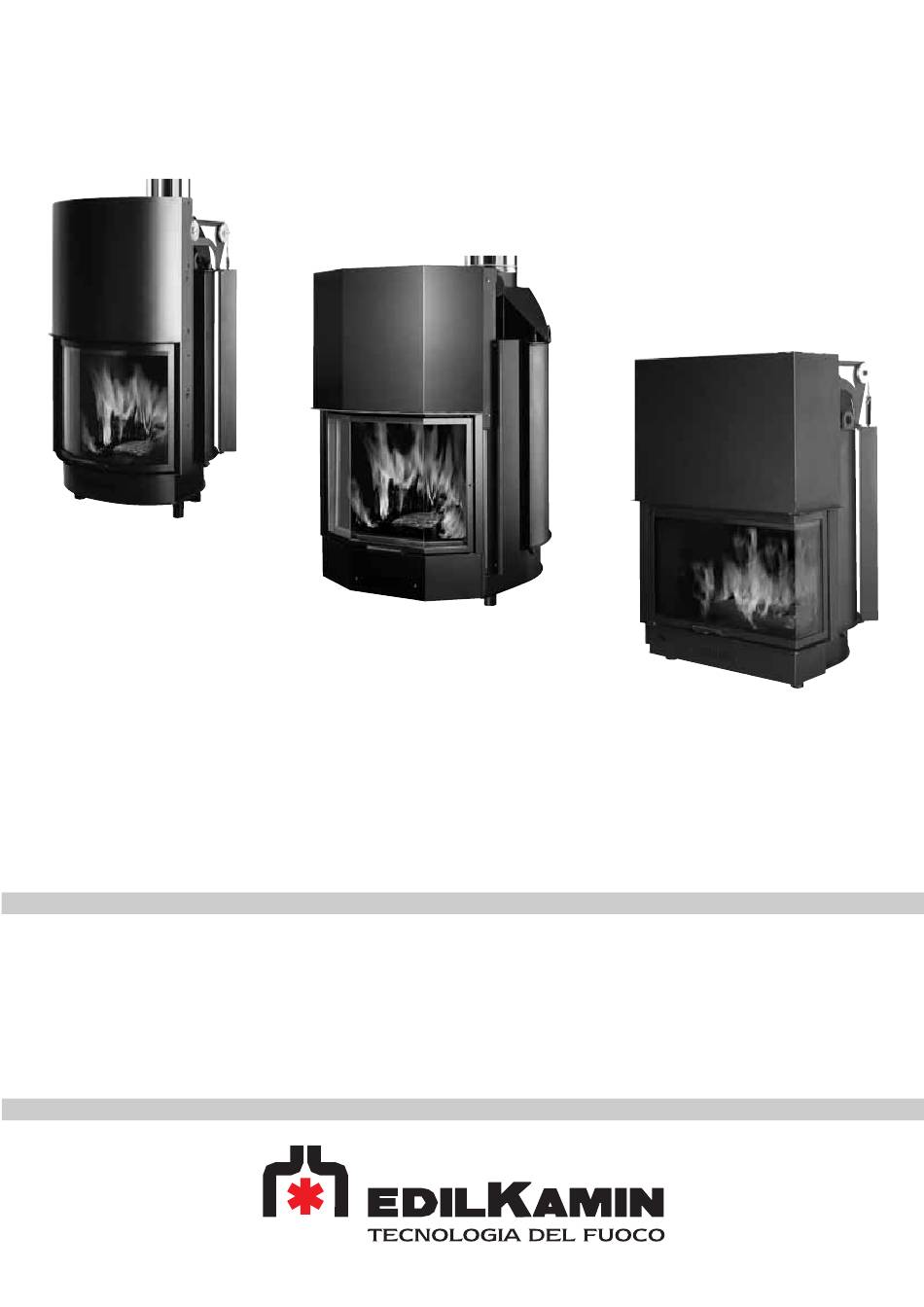

EdilKamin ACQUATONDO 22 Instructions For Installation, Use And Maintenance Manual

Hide thumbs

ACQUATONDO 22-29

ACQUATONDO 22

sfera

round

sphérique

curvo

sphärisch

bol

ACQUATONDO 22-29, Installazione, uso e manutenzione

ACQUATONDO 22-29, Installation, use and maintenance

ACQUATONDO 22-29, Installation, usage et maintenance

ACQUATONDO 22-29, Instalación, uso y mantenimiento

ACQUATONDO 22-29, Installations-, Betriebs- und Wartungsanleitung

ACQUATONDO 22-29, Installatie, gebruik en onderhoud.

ACQUATONDO 22-29

prismatico

prismatic

prismatique

prismático

prismaförmig

primavorming

ACQUATONDO 29

un lato aperto

glass on one side

un coté vitré

abierto un lado

mit einer verglasten seite

een zijkant in glas

pag. 2

pag. 18

pag. 34

pag. 50

pag. 66

pag. 82

Table of Contents

Need help?

Do you have a question about the ACQUATONDO 22 and is the answer not in the manual?

Questions and answers

Summary of Contents for EdilKamin ACQUATONDO 22

Page 1 ACQUATONDO 22-29, Installazione, uso e manutenzione pag. 2 ACQUATONDO 22-29, Installation, use and maintenance pag. 18 ACQUATONDO 22-29, Installation, usage et maintenance pag.
Page 2 Keep these instructions, the guarantee booklet and receipt of purchase, as they must be used when requesting information. Declaration of conformity The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20122 Milano - Italy - VAT T00192220192 Declares under its own responsability as follows:...
Page 3: Technical Data
TECHNICAL DATA Specifications Thermal output (burnt) Nominal power thermal insulation on the vaulted top (implemented by Power water 16,1 18,8 the client) Overall efficiency 78,4 Efficiency to the water ~ 70 ~ 70 Optimal wood consumption (min-max) kg/h 2,5/8,5 3/10 Total weight including the packaging (min-max) 234/254 302/319 ø...
Page 4: General Safety Regulations
1,5 bar • The glass can be cleaned when COLD with a suitable • The thermal relief valve (supplied by EDILKAMIN) must be connected to the product (e.g. GlassKamin) and a cloth. Do not clean cooling circuit with a minimum pressure of 1.5 bar.
Page 5 GENERAL SAFETY REGULATIONS OPEN TANK - The connections, commissioning and - In any case, the tank must be high - Connect the drains of the thermal relief enough to create a greater pressure than valve (TRV) and the safety valve (SV) verification of proper operation of the fi- that produced by the pump (circulator).
Page 6: Installation Instructions
- pilasters, painting, etc. are carried out, once the tests are comple- ted successfully. Consequently, EDILKAMIN does not accept responsibility for expenses deriving from demolition as well as construction even if either occurs as a result, after having repla- ced any damaged parts of the fireplace.
Page 7: Installation And Use Instructions
In addition to that mentioned above, During the combustion process please consider the indications stipula- If combining a prefabricated Edilkamin covering, If the water temperature exceeds 90° C becau- ted in the UNI 10683/2005 standard, to decide upon the exact positioning of the fire- se of too much wood being placed in the paragraphs 4.4 and 4.7: “insulation,...
Page 8 SYSTEM FOR AN OPEN TANK INSTALLATION KIT 1 USING AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE WITH HOT SANITARY WATER PRODUCTION ACS: Hot Sanitary Water Cold Water 3-way Solenoid Valve Flow Switch System Flow KIT 1 Normally Open Normally Closed Pump (circulator) Radiators...
Page 9 SYSTEM FOR AN OPEN TANK INSTALLATION KIT 2 USING AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE THAT DOES NOT PRODUCE HOT SANITARY WATER BUT HAS A WALL MOUNTED BOILER Cold Water Wall Mounted Boiler System Flow KIT 2 Pump (circulator) Radiators Electronic Regulator...
Page 10 SYSTEM FOR AN OPEN TANK INSTALLATION KIT 3 USING AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACEITH HOT SANITARY WATER PRODUCTION AND A WALL MOUNTED BOILER ACS: Hot Sanitary Water Cold Water Wall Mounted Boiler 3-way Solenoid Valve Flow Switch System Flow KIT 3...
Page 11 NB: insulating mats must be applied so that the components of the kit are well-protected from the heat radiation emitted by the fireplace. Components KIT N3 Heating system flow G 3/4” EDILKAMIN generator flow G 3/4” EDILKAMIN generator return G 3/4” Heating system return G 3/4” Cold sanitary water inlet G 1/2”...
Page 12 NB: insulating mats must be applied so that the components of the kit are well-protected from the heat radiation emitted by the fireplace. Components KIT N3 BIS Heating system flow G 3/4” EDILKAMIN generator flow G 3/4” EDILKAMIN generator return G 3/4” 11 11 11 11 Heating system return G 3/4”...
Page 13 SYSTEM FOR AN OPEN/CLOSED TANK INSTALLATION IDROKIT USING AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE THAT PRODUCES AND STORES HOT SANITARY WATER AND HAS A WALL MOUNTED BOILER ACS: Hot Sanitary Water IDROKIT Cold Water Water Mains Supply Filling/Top-Up Section Electronic Panel 3-way Solenoid Valve...
Page 14 SYSTEM FOR A CLOSED TANK INSTALLATION KIT 5 USING AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE - ONLY HEATING safety valve connection KIT 5 Water Mains Supply Filling/Top-Up Section 3-way Solenoid Valve Normally Open Normally Closed Filling unit Automatic Relief Valve Manual Relief Valve MAN:...
Page 15 SYSTEM FOR A CLOSED TANK INSTALLATION KIT 6 USING AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE WITH HOT SANITARY WATER PRODUCTION safety valve connection ACS: Hot Sanitary Water KIT 6 Cold Water Water Mains Supply Filling/Top-Up Section 3-way Solenoid Valve Normally Open Normally Closed...
Page 16 ELECTRONIC REGULATOR (KIT 1-2-3-5-6) The electric control regulator allows you to monitor the operating electronic regulator conditions and is equipped with: - MAN-OFF-AUTO selector (S) - temperature scale (ST) IMPORTANT ADVICE REGARDING THE INSTALLATION - acoustic alarm (AA) - 3-way valve opening setting (R) (KIT1-3) The connections, commissioning and verification of proper operation - circulators operation setting (R) (KIT2) of the fireplace must be carried out by qualified personnel, who can...
Page 17 It is easily installed on the flow pipe to the radiators, in the most suitable position according to the layout of the system. Alternatively, it can be purchased as part of installation KITS 1/3/6 offered by EDILKAMIN. This has the great advantage being removed maintenance replacement without affecting the thermo fireplace.
Page 18 ACQUATONDO 22 sfera...
Page 20 ACQUATONDO 22 prismatico...
Page 22 ACQUATONDO 29 prismatico...
Page 24 ACQUATONDO 29 un lato vetrato...
Page 26 w w w . e d i l k a m i n . c o m 645630 ..05.11/E...
Page 27 ISTRUZIONI PER UN CORRETTO BILANCIAMENTO DEL PORTELLONE (taratura solo in aumento) • Inserire la rondella di compenso (A) nella fune • Posizionare le rondelle di compenso (A) in dotazione, necessarie al bilanciamento del portellone • Fare attenzione ad inserire correttamente la rondella nella sede del gancio contrappeso N.B.: Verificare la corretta funzionalità...
Page 28 w w w . e d i l k a m i n . c o m...
