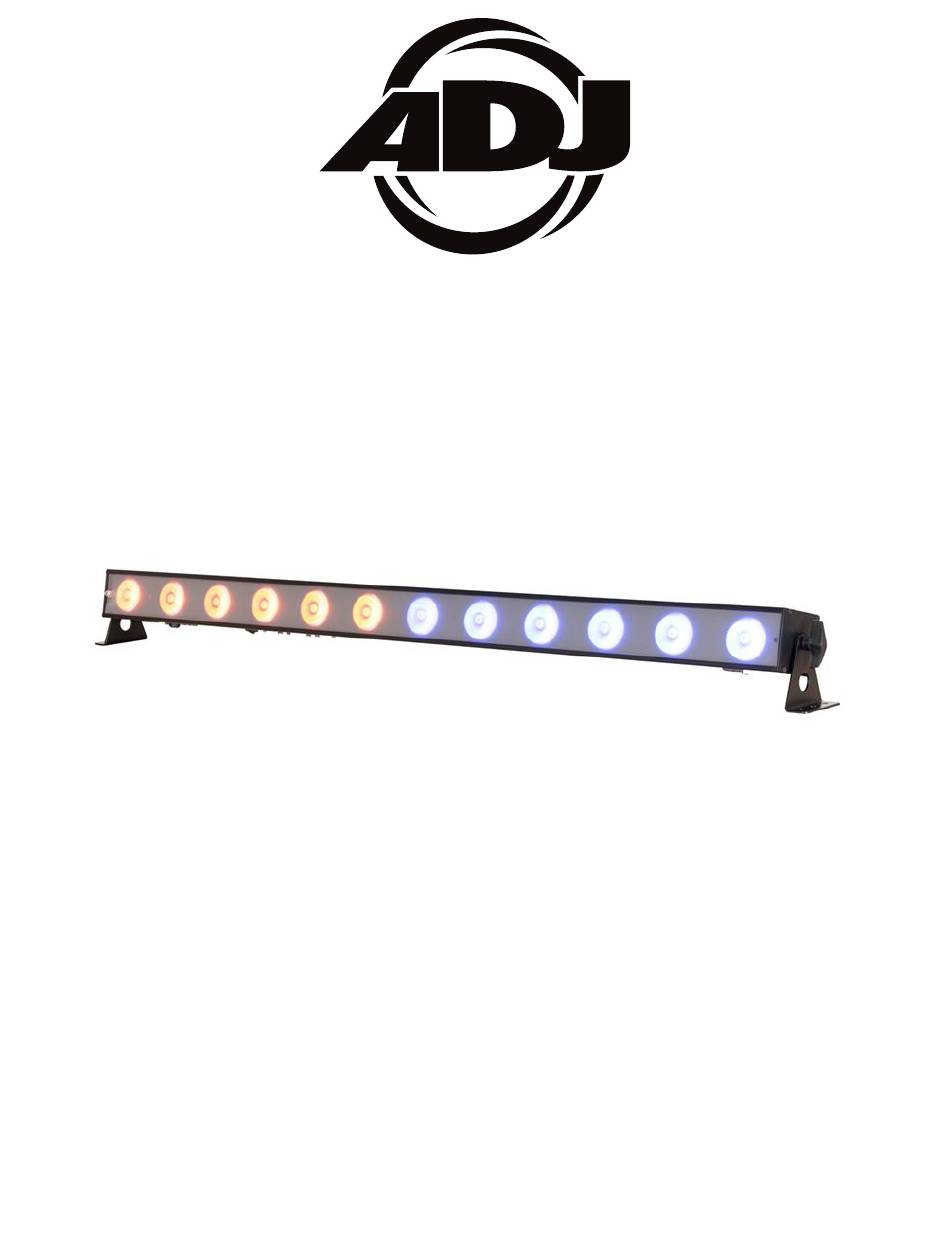

  • Page 1 UBL12HB User Instructions...

  • Page 2: Document Version

    ©2025 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Table Of Contents

    C O N T E N T S Introduction Limited Warranty (USA Only) Warranty Registration | Features Safety Precautions Battery Precautions Overview Installation Accessory Installation Wireless Operation IR Button Colors Remote Device Management (RDM) System Menu DMX Set Up DMX Traits Pixel Grouping Color Macros Chart Dim Speeds...

  • Page 4: Introduction

    I N T R O D U C T I O N Unpacking: Thank you for purchasing the UBL12HB by ADJ Products, LLC. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.

  • Page 5: Limited Warranty (Usa Only)

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Included Items

    WA R R A N T Y R E G I S T R AT I O N Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number.

  • Page 7: Safety Precautions

    S A F E T Y P R E C A U T I O N S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! FIXTURE EMITS HIGH INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER.
  • Page 8 S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.

  • Page 9: Battery Precautions

    B AT T E R Y P R E C A U T I O N S Do not short circuit the battery. Avoid subjecting the battery to a short circuit, as doing so generates a very high current, resulting in overheating, electrolyte gel leakage, harmful fumes, explosion risk, or other damage to the battery.

  • Page 10: Overview

    O V E R V I E W Power Bracket Adjustment Knob Fuse 250V 1.5A Mounting Bracket Power Switch Charging Indicator Enter Button Mode/ Button Display Screen Down Button Button Safety Cable Attachment Aria Point Indicator Power...

  • Page 11: Installation

    I N S TA L L AT I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations. When installing the unit, the trussing or area of installation must be able to hold 10 times the weight of the unit and any attached accessories without any deformation.
  • Page 12 I N S TA L L AT I O N CLAMP MOUNTING This fixture features two mounting brackets for the attachment of mounting clamps. When mounting the fixture to a truss or any other suspended structure, be sure to secure an appropriate rated clamp (not included) to each mounting bracket.
  • Page 13 I N S TA L L AT I O N The unit is fully operational in three different mounting positions: hanging upside-down from the ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decorations, etc).

  • Page 14: Accessory Installation

    A C C E S S O R Y I N S TA L L AT I O N DIFFUSION FILTER A removeable 20-degree diffusion filter is included with the fixture. To install this filter, simply remove the retaining screw on the side of the fixture’s lens and slide the diffusion filter into the slot located in front of the lens.

  • Page 15: Wireless Operation

    W I R E L E S S O P E R AT I O N To set up wireless control, follow the steps below: 1. Navigate to Personality > IR Remote in the system menu. Press ENTER to select this menu. 2.

  • Page 16: Ir Button Colors

    I R B U T T O N C O L O R IR DEFAULT VALUES BUTTON GREEN BLUE AMBER LIME EDITING IR BUTTON VALUES These fixtures allow the user to create custom RGBAL+UV values and assign them to the numbered keys (0-15) on the remote control.

  • Page 17: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 18: System Menu

    S Y S T E M M E N U This unit features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MODE/ESC button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the ENTER button to enter the sub-menu, then use the UP and DOWN buttons to scroll through sub-menu options.
  • Page 19 S Y S T E M M E N U OPTIONS/VALUES (Default settings in bold) SYSTEM MENU Address 001 - 512 11Ch 13Ch Ch. Mode 16Ch 36Ch DMX SET 43Ch 46Ch Hold Blackout No DMX Manual Programs Prim/Sec Mode Primary / Secondary DMX or Aria Signal Aria In / DMX Out...
  • Page 20 S Y S T E M M E N U OPTIONS/VALUES (Default settings in bold) SYSTEM MENU 000 - 255 Green 000 - 255 Blue 000 - 255 Button 0 Amber 000 - 255 Lime 000 - 255 000 - 255 000 - 255 Green 000 - 255...
  • Page 21 S Y S T E M M E N U OPTIONS/VALUES (Default settings in bold) SYSTEM MENU LED Temperature xxx° xxx F / xxx C RDM UID xxxxxx INFO Software Version x.xx Aria ID xx:xx:xx:xx:xx:xx Charging Time xx hours Current Life xxx% BATTERY Operation Mode...

  • Page 22: Dmx Set Up

    D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...

  • Page 23: Dmx Addressing

    2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior. DMX ADDRESSING.

  • Page 24: Dmx Traits

    D M X T R A I T S CHANNEL FUNCTION 11Ch 13Ch 16Ch 36Ch 43Ch 46Ch VALUES 000 - 255 All Red, 0% to 100% 000 - 255 All Green, 0% to 100% 000 - 255 All Blue, 0% to 100% 000 - 255 All Amber, 0% to 100% 000 - 255 All Lime, 0% to 100% 000 - 255 All UV, 0% to 100%...
  • Page 25 D M X T R A I T S CHANNEL FUNCTION 11Ch 13Ch 16Ch 36Ch 43Ch 46Ch VALUES 000 - 255 Color Macros, see Color Macros Chart 000 - 255 Color Temperature, 2300K - 9900K Linear Color Temperature Presets 000 - 010 No Function 011 - 026 2300K 027- 043 2700K 044 - 060 3000K...
  • Page 26 D M X T R A I T S CHANNEL VALUES FUNCTION 11Ch 13Ch 16Ch 36Ch 43Ch 46Ch Dim Mode 000 - 020 Default to Unit Setting 021 - 040 Standard 041 - 060 Stage 061 - 080 TV 081 - 100 Architectural 101 - 120 Theatre 121 - 140 Stage 2 140 - 160 Dim Speed, fast to slow (0.1s to 10s)

  • Page 27: Pixel Grouping

    P I X E L G R O U P I N G PIXEL FLIP OFF PIXEL FLIP ON...

  • Page 28: Color Macros Chart

    C O L O R M A C R O S C H A R T DMX VALUES COLORS DMX VALUES COLORS 000 - 003 128 - 131 G+B+L 004 - 007 132 - 135 G+B+A 008 - 011 Green 136 - 139 G+B+UV 012 - 015...

  • Page 29: Dim Speeds

    D I M S P E E D S DMX VALUES DELAY TIME 0.1 sec 0.2 sec 0.3 sec 0.4 sec 0.5 sec 0.6 sec 0.7 sec 0.8 sec 0.9 sec 1.0 sec 1.5 sec 2.0 sec 3.0 sec 4.0 sec 5.0 sec 6.0 sec 7.0 sec...

  • Page 30: Dim Modes

    D I M M O D E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default) Stage 1100...

  • Page 31: Primary-Secondary Set Up | Multi Unit Power Linking

    P R I M A R Y- S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs. Any unit can be configured to act as a Primary or as a Secondary, but only one unit in a given system can be programmed to act as the Primary.

  • Page 32: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

  • Page 33: Dimensional Drawings

    D I M E N S I O N A L D R AW I N G S 3.4 in (87mm) 3.0 in (75mm) 4.1 in (104mm) 3.0 in (76mm) 4.2 in (107mm) 3.5 in (89mm)

  • Page 34: Specifications

    S P E C I F I C AT I O N S Light Source: Battery: • 12 x 20W Ultra bright (Red, Green, Blue, • Rechargeable Lithium-ion Amber, Lime and UV) LEDs • Battery Capacity: 12,000mAh • Long Life LEDs (Rated at approximately •...

  • Page 35: Ordering Information | Fcc Statement

    O R D E R I N G I N F O R M AT I O N ORDER CODE (US) ORDER CODE (EU) DESCRIPTION UBL133 1226200081 ADJ UBL12HB UBL912 1x40° Linear Diffusion Filter F C C S TAT E M E N T Please note that changes or modifications of this product is not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
