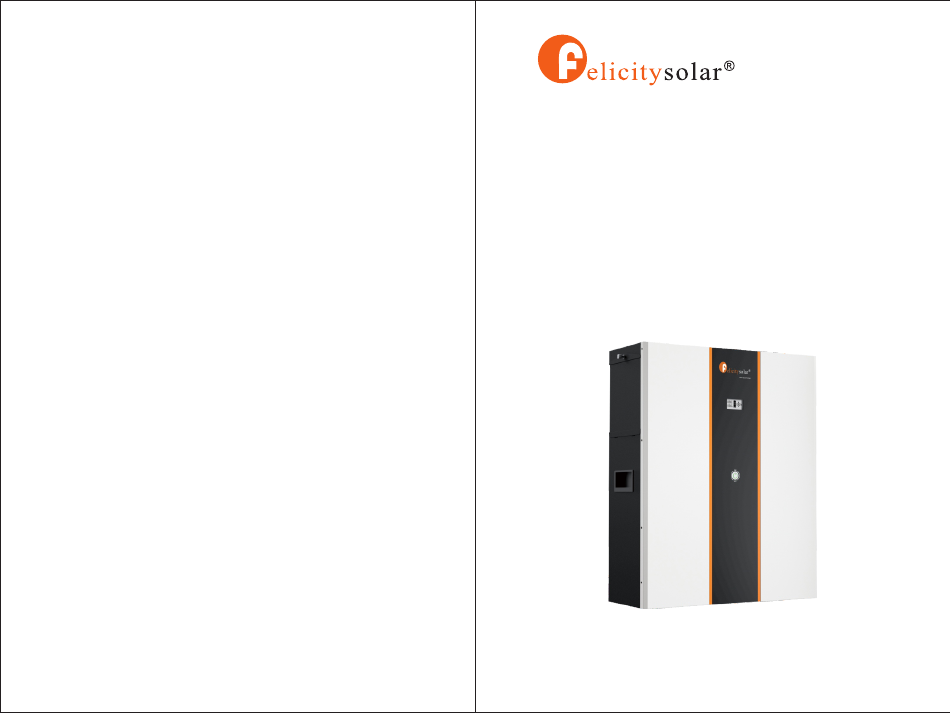

- Page 1 Make life full of hope USER GUIDE LiFePO4 Battery System for Households LiFePO4 Battery System for Households 358-010285-03...
- Page 2 Contents 5.4 Damaged Batteries ................10...
-
Page 3: About This Manual
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 1 ABOUT THIS MANUAL 2. INTRODUCTION The battery system main using Solar power system for Family house. It also have a with to controller the 1.1 Purpose battery easily and protect our Household application timely. This manual describes the introduction, installation, operation and emergency situations of the battery bank. -
Page 4: Specifications
LiFePO4 Battery System for Households LiFePO4 Battery System for Households 2.3 Specifications Model LPBF24250 LPBF24300 Capacity 6kWh 7.5kWh Battery Type LiFePO4 LiFePO4 Nominal Voltage 25.6V 25.6V Operating Voltage 24-28.8V 24-28.8V Recommend Charge/Discharge Current[1] ≤120A ≤120A Recommend Charge/Discharge Power[1] ≤3,000W ≤3,000W... - Page 5 LiFePO4 Battery System for Households LiFePO4 Battery System for Households Please follow below steps to implement battery connection: Assemble battery ring terminal based on recommended battery cable and terminal size. Note: if you need the battery wake-up when the grid back, connect the battery with grid use power adapter and communication line 1 shown in the package list.
- Page 6 Eg: Rated voltage is "25.6V"; model is "6KWH", Eg: "26.2V" / "2.40KW" / "70%" refers to battery voltage. "01"is the countdown. power and SOC. Eg:"26.2V" / "C09" / "70%" are battery voltage, fault Eg: "26.2V" / "60A" / "70%" refers to battery voltage. current and SOC.
-
Page 7: Emergency Situations
5. EMERGENCY SITUATIONS overtemperature Felicity cannot guarantee battery absolute safety. 5.1 Fire In case of fires, make sure that the following equipment is available near the system. • SCBA (self-contained breathing apparatus) and protective gear in compliance with the Directive on Personal Protective Equipment 89/686/EEC.
