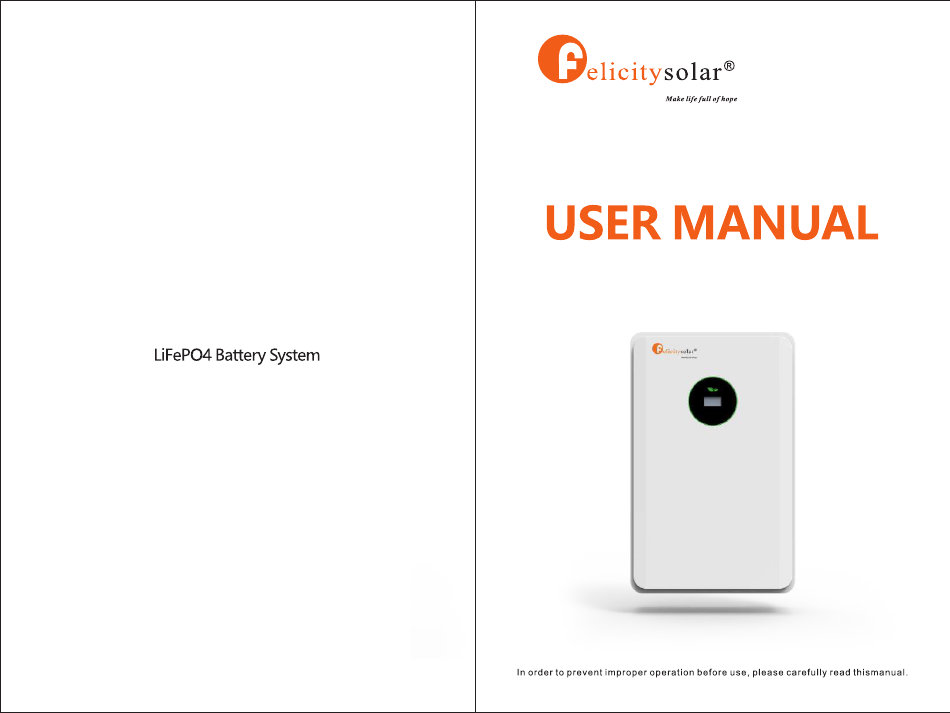

- Page 1 LiFePO4 Battery System for Households 358-010407-00...
-
Page 2: Table Of Contents
1 ABOUT THIS MANUAL ..................... 1.1 Purpose ........................1.2 Scope ........................1.3 Safety Instructions ....................1.4 Can be Connected in Parallel ................2.1 Features ........................2.2 Product Overview ....................2.3 Specifications ......................2.4 Recommended Settings ..................3. Installation Procedure ..................... 3.1 Setup Script ...................... -
Page 3: About This Manual
1 ABOUT THIS MANUAL 2. INTRODUCTION The battery system main using solar power system for family house. It also have a with to controller the 1.1 Purpose battery easily and protect our Household application timely. This manual describes the introduction, installation, operation and emergency situations of the battery bank. Please read this manual carefully before installations and operations. -
Page 4: Recommended Settings
Model FLA48200 Energy 10kWh Battery Type LiFePO4 Nominal Voltage 51.2V Operating Voltage 44.8-57.6V Recommend Charge/Discharge Current[1] ≤120A Recommend Charge/Discharge Power[1] ≤6,000W Maximum Charge/Discharge Current(15s) 150A Maximum Charge/Discharge Power(15s) 7,500W Depth of Discharge(DOD) ≥ 95% Scalability Up to 15 units in parallel(150kWh) -
Page 5: Installation Procedure
3.3 Floor Installation with Base 3. Installation Procedure Installation Location Requirements 3.1 Setup Script Make life full of hope Using wall mounted components, first fix the wall mounted components to the wall, and then lift the machine onto the wall mounted components to secure it Note:Do not use wall mounted components, place the chassis against the wall and secure it with fixing Make life full of hope components... -
Page 6: Installation
4. INSTALLATION 4.1 Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package. NAME SPECIFICATION PICTURE Battery terminal：5B6A RS485 cable PCS terminal：5B6A Used for product transportation and Lock wall components wall fixation... -
Page 7: Connection For Parallel Mode
4.3 Connection for Parallel Mode 5. OPERATION The FLA series battery support to be connected in parallel for expansion. If you need one more battery Once the batteries are connected well, close the breaker to the ON block, press On/Off button to enable the bank to work in parallel mode, connect the battery as shown in PIC 1. -
Page 8: Lcd Display Icons
5.2 LCD Display Icons Eg: Rated voltage is "51.2V"; model is "10KWH", Eg: "52.0V" / "3.90KW" / "70%" refers to battery voltage. "01"is the countdown. power and SOC. Function Description Eg: "52.0V" / "120A" / "70%" refers to battery voltage. Eg:"52.0V"... -
Page 9: Dip Switch Sw1-Sw4 Description
6. Configure Network Cell ovetemperature 6.1 Download APP Cell undertemperature Scan the QR Code on the right side and download the APP. 6.2 Connect to Built-in WIFI wireless network Configure the mobile phone WLAN to connect to the wireless network of the Built-in WIFI 1) Run the APP, enter the login page, click the [Setup network] button to enter the network configuration page. -
Page 10: Create The Plant
Please enter password I am an Installer/Dealer Obtain Verification code Remember Password Forget password? Please enter your password 4) Manage the device via a web browser, please refer to: https://shine.felicitysolar.com . Login Installer/Dealer Name Register Demo Read and Agree Next Register... -
Page 11: Emergency Situations
8. EMERGENCY SITUATIONS Felicity cannot guarantee battery absolute safety. 8.1 Fire In case of fires, make sure that the following equipment is available near the system. • SCBA (self-contained breathing apparatus) and protective gear in compliance with the Directive on Personal Protective Equipment 89/686/EEC.
