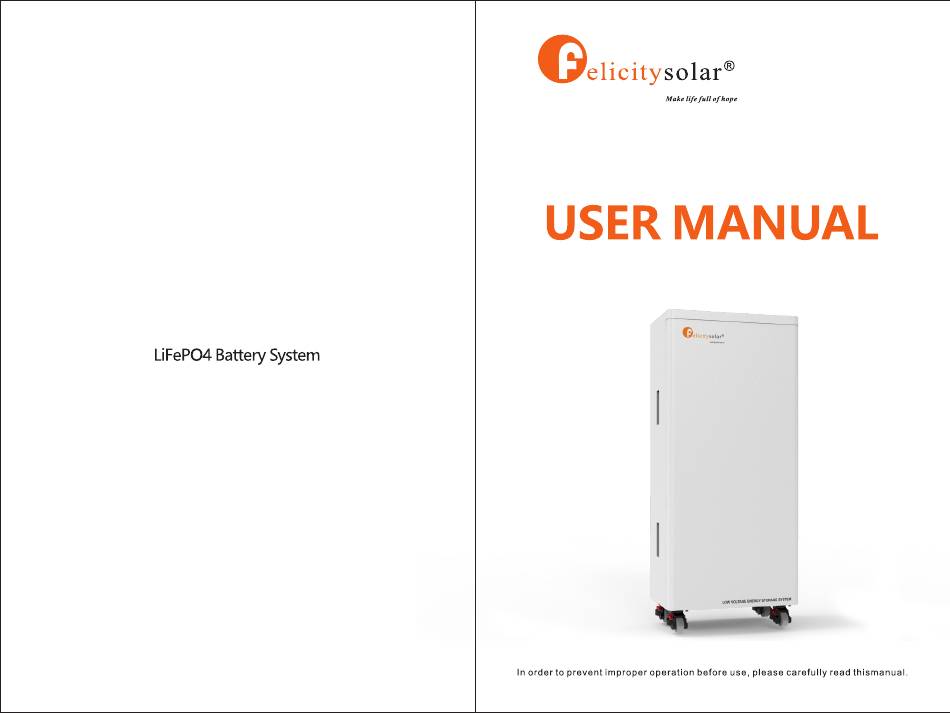

- Page 1 LiFePO4 Battery System for Households 358-010370-02...
-
Page 2: Table Of Contents
1 ABOUT THIS MANUAL ..................... 1.1 Purpose ........................1.2 Scope ........................1.3 Safety Instructions ....................1.4 Can be Connected in Parallel ................2.1 Features ........................2.2 Product Overview ....................2.3 Specifications ......................2.4 Recommended Settings ..................3. Installation Procedure ..................... 3.1 Tools ......................... -
Page 3: About This Manual
1 ABOUT THIS MANUAL 2. INTRODUCTION The battery system main using solar power system for family house. It also have a with to controller the 1.1 Purpose battery easily and protect our Household application timely. This manual describes the introduction, installation, operation and emergency situations of the battery bank. Please read this manual carefully before installations and operations. -
Page 4: Recommended Settings
Model FLA48300 Capacity 15kWh Battery Type LiFePO4 Nominal Voltage 51.2V Operating Voltage 44.8-57.6V Recommend Charge/Discharge Current[1] ≤150A Recommend Charge/Discharge Power[1] ≤7,500W Maximum Charge/Discharge Current(15s) 200A Maximum Charge/Discharge Power(15s) 10,000W Depth of Discharge(DOD) ≥ 95% Scalability Up to 15 units in parallel(225kWh) -
Page 5: Installation Procedure
3. Installation Procedure 3.3 Installation Environment 3.1 Tools Max.+50°C Min.-10°C RH.+5%~+95% 3.2 Floor Installation with Base Installation Location Requirements POWER... -
Page 6: Installation
4. INSTALLATION 4.3 Connection for Parallel Mode The FLA series battery support to be connected in parallel for expansion. If you need one more battery 4.1 Unpacking and Inspection bank to work in parallel mode, connect the battery as shown in PIC 1. Before installation, please inspect the unit. -
Page 7: Operation
5.2 LCD Display Icons 5. OPERATION Once the batteries are connected well, close the breaker to the ON block, press On/Off button to enable the output of the battery pack. Function Description current or watt Short press the switch button to switch watt and current Indicates battery level by 0-20%,21-40%, 41-60%61-80%,81-100%.(When 5.1 Switch On / Off... -
Page 8: Fault Code Table
Cell ovetemperature Eg: Rated voltage is "51.2V"; model is "15KWH", Eg: "52.0V" / "3.90KW" / "70%" refers to battery voltage. "01"is the countdown. power and SOC. Cell undertemperature Eg: "52.0V" / "120A" / "70%" refers to battery voltage. Eg:"52.0V" / "C09" / "70%" are battery voltage, fault current and SOC. -
Page 9: Configure Network
6. Configure Network 3)And then wait for the Built-in WlFl to connect to the router's wireless network, which will takesome time. Then you can use the diagnostic function of the APP or according to the fault appendix to troubleshoot 6.1 Download APP the problem. -
Page 10: Emergency Situations
• Changed, or attempted repairs and erasing of series number or seals; 4) Manage the device via a web browser, please refer to: https://shine.felicitysolar.com . • System design and installation are not in compliance with standards and regulations; • The product has been improperly stored in end user’s premises;...
