QUICK REFERENCE GUIDE
HI98198 Portable Dissolved Oxygen Meter
Dear Customer, thank you for choosing Hanna Instruments.
For more information about Hanna Instruments and our products,
visit www.hannainst.com or e-mail us at sales@hannainst.com. For technical
support, contact your local Hanna Instruments office or e-mail us at
tech@hannainst.com.
Please scan the QR code or use the link below
to download the user manual.
https://manuals.hannainst.com/HI98198
Package Contents
Each HI98198 is delivered in a rugged carrying case and supplied with:
• HI764113 Optical DO probe
• HI764113-1 Smart Cap with O-ring
• HI7040 Zero oxygen solution (120 mL)
• Calibration / storage vessel
• Protective sleeve
• 100 mL plastic beaker (2 pcs.)
• 6 g sachet with silicone grease
• Syringe
• Lens wipe
• 1.5V AA alkaline battery (4 pieces)
• USB cable
• Quality certificates (instrument, probe, DO Smart Cap)
• Quick reference guide
Key Features
• Built-in calculations
» Biological Oxygen Demand (BOD)
» Oxygen Uptake Rate (OUR)
» Specific Oxygen Update Rate (SOUR)
• Built-in barometer
» Automatic barometric pressure compensation with 1 point
calibration
• One or two-point calibration at 0 or / and 100% saturation
Hanna Instruments is committed to developing and deploying digital solutions
with a positive impact on the environment and climate.
All Hanna instruments conform to the CE European Directives
and our production facilities are ISO 9001 certified.
HI98198 is warranted for a period of two years (probe six months, Smart
Cap one year) against defects in workmanship and materials when used
for their intended purpose and maintained according to instructions.
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com
General Description
The HI98198 opdo ® meter is a rugged, portable, dedicated dissolved
oxygen (DO) meter, designed for fresh and saltwater measurements of
dissolved oxygen when using HI764113

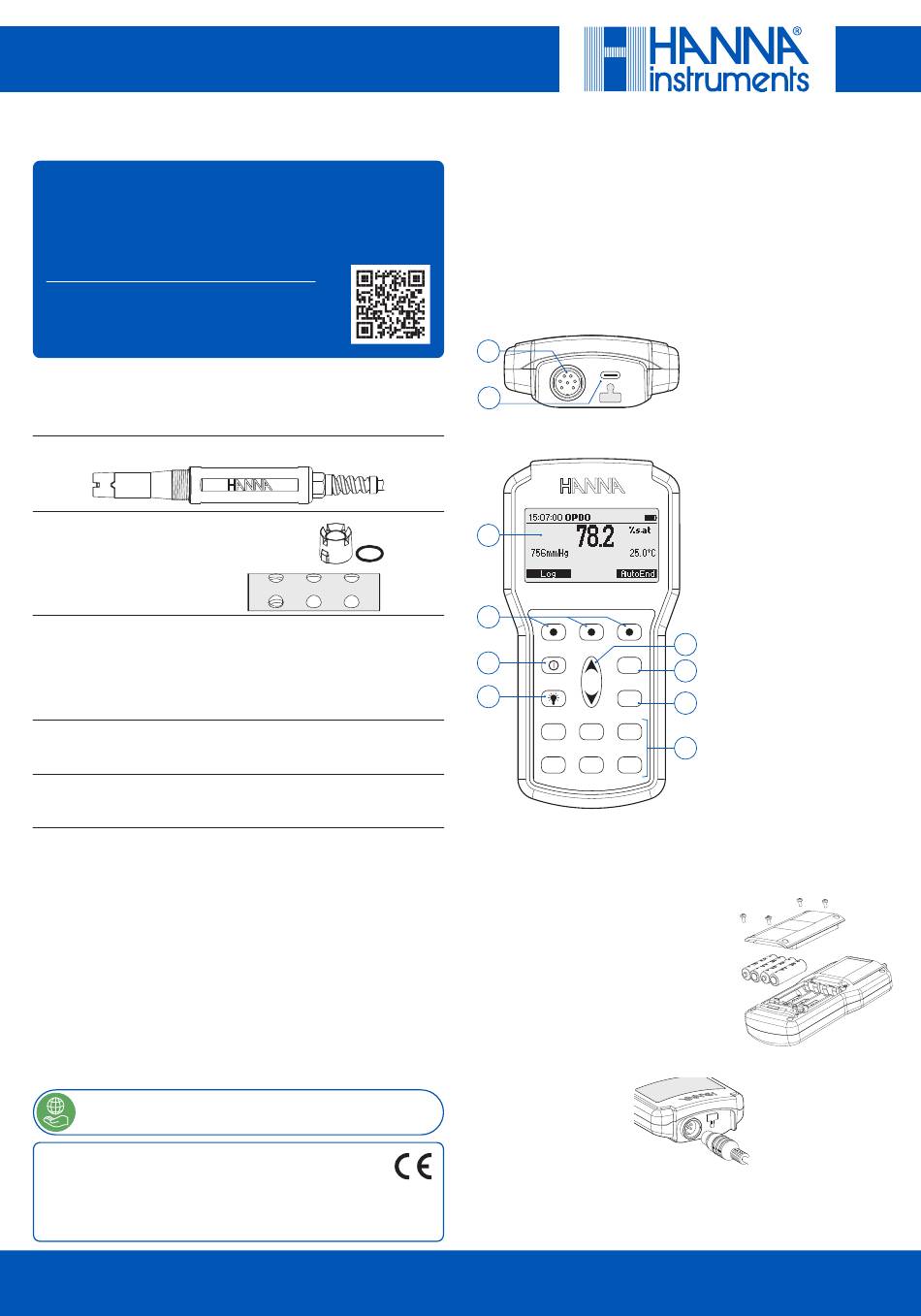

Functional & Keypad Description
1
2
3
HI98198
Dissolved Oxygen
4
5
ESC
6
HELP
CAL GLP RANGE
SETUP RCL MODE
Getting Started
• With the meter off, remove the four
screws to open the battery compartment.
Insert the four supplied 1.5V AA batteries
and replace the cover.
• Connect the probe to the quick connector.
Align the pins and key, then push the plug into the socket.
• Before measurement, complete Smart Cap hydration as well as probe
preparation and calibration.
digital probe.
1. Probe connector
2. USB connector and cover
3. LCD Display
4. Functional keys
Perform displayed function
5. Power On / Off key
6. Lamp key
Turn the backlight on / off
7. Arrow keys
Navigate menus / options
8. ESC key
7
Return to previous screen
8
9. HELP key
Context-sensitive help
9
10. CAL › enter calibration
SETUP › meter & meas. config.
10
GLP › probe calib. data
RCL › recall logged data
RANGE › measure range
MODE › measure mode
