QUICK REFERENCE GUIDE
HI98194 Portable pH / EC / Dissolved Oxygen Meter
Dear Customer, thank you for choosing Hanna Instruments.
For more information about Hanna Instruments and our products,
visit www.hannainst.com or e-mail us at sales@hannainst.com. For technical
support, contact your local Hanna Instruments office or e-mail us at
tech@hannainst.com.
Please scan the QR code or use the link below
to download the user manual.
https://manuals.hannainst.com/HI98194
Package Contents
Each HI98194 is delivered in a rugged carrying case and supplied with:
• HI7698194 Multisensor probe
• HI7698295 Short protective probe shield
• HI7698194-1 pH / ORP sensor
• HI7698194-2 Dissolved Oxygen sensor
• HI7698194-3 Conductivity sensor
• HI76981942 Probe maintenance kit
• HI7698290 Calibration beaker
• HI9828-20 Quick calibration standard solution (230 mL)
• HI920015 Micro USB cable
• 1.5V AA alkaline battery (4 pieces)
• Instrument and probe quality certificates
• Quick reference guide
Key Features
• Field-replaceable sensors with automatic recognition
• Tutorial mode for sensor operation and calibration
• PC connectivity
Hanna Instruments is committed to developing and deploying digital solutions
with a positive impact on the environment and climate.
All Hanna instruments conform to the CE European Directives
and our production facilities are ISO 9001 certified. HI98194 is
warranted for a period of two years (probe and sensors six months, Smart
Cap one year) against defects in workmanship and materials when used
for their intended purpose and maintained according to instructions.
Please retain for future use. QR98194 05/25
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com
General Description

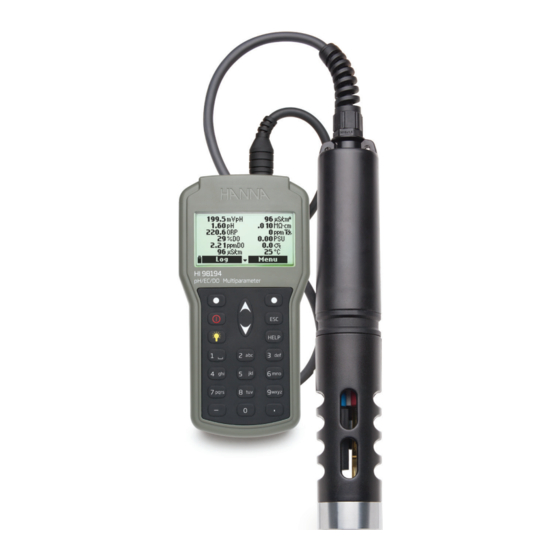

HI98194 is a portable multiparameter system that monitors up to
14 water-quality parameters using the
The probe has three sensor sockets marked with color-coded triangles:
connector 1 › HI7698194-0
 
connector 2 › HI7698194-2
 
connector 3 › HI7698194-3
 

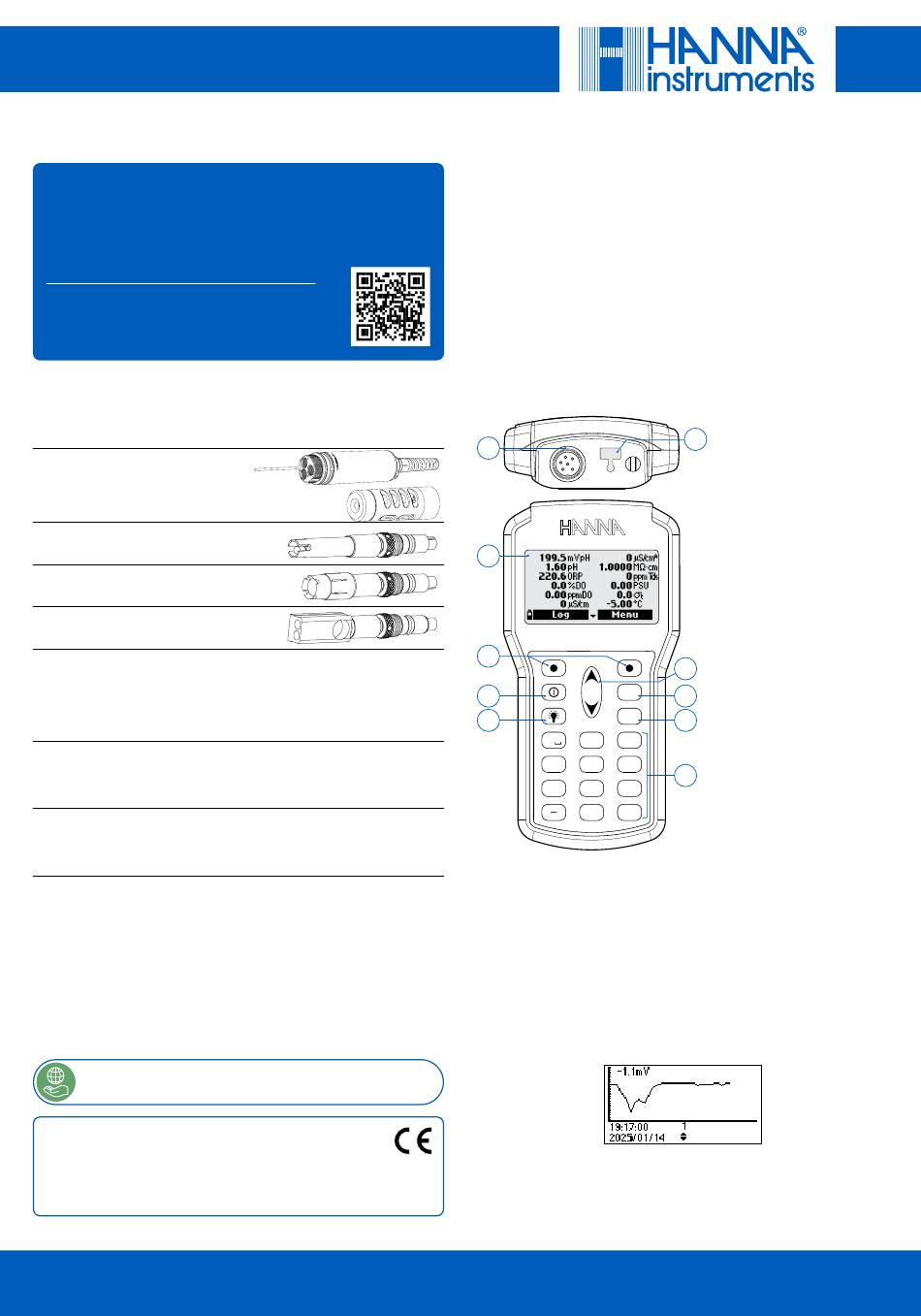

Functional & Keypad Description
1
3
HI98194
pH/EC/DO Multiparameter
4
5
ESC
6 HELP
3
1 2
abc def
4 6
ghi 5 jkl mno
7 9
pqrs 8 wxyz
tuv
.
0
System Overview
Hardware Flexibility
• Up to three sensors can be installed
• Inputs for PC and flash drive
User Interface
• Keys 1 through to 7 support selection of number of parameters to be
displayed at one time
• Data graphing
Measurement Flexibility
• Measured data displayed simultaneously for all enabled parameters
HI7698194 digital probe.
pH or HI7698194-1 pH / ORP sensor
Dissolved Oxygen sensor
Conductivity sensor
1. Probe connector
2
2. USB connector
3. LCD Display
4. Functional keys
Perform displayed function
5. Power On / Off key
6. Lamp key
Turn the backlight on / off
7
7. Arrow keys
8
Navigate menus / options
9
8. ESC key
Return to previous screen
9. HELP key
10
Context-sensitive help
10. Alphanumeric keypad
