Philips Sonicare FlexCare Platinum Manual

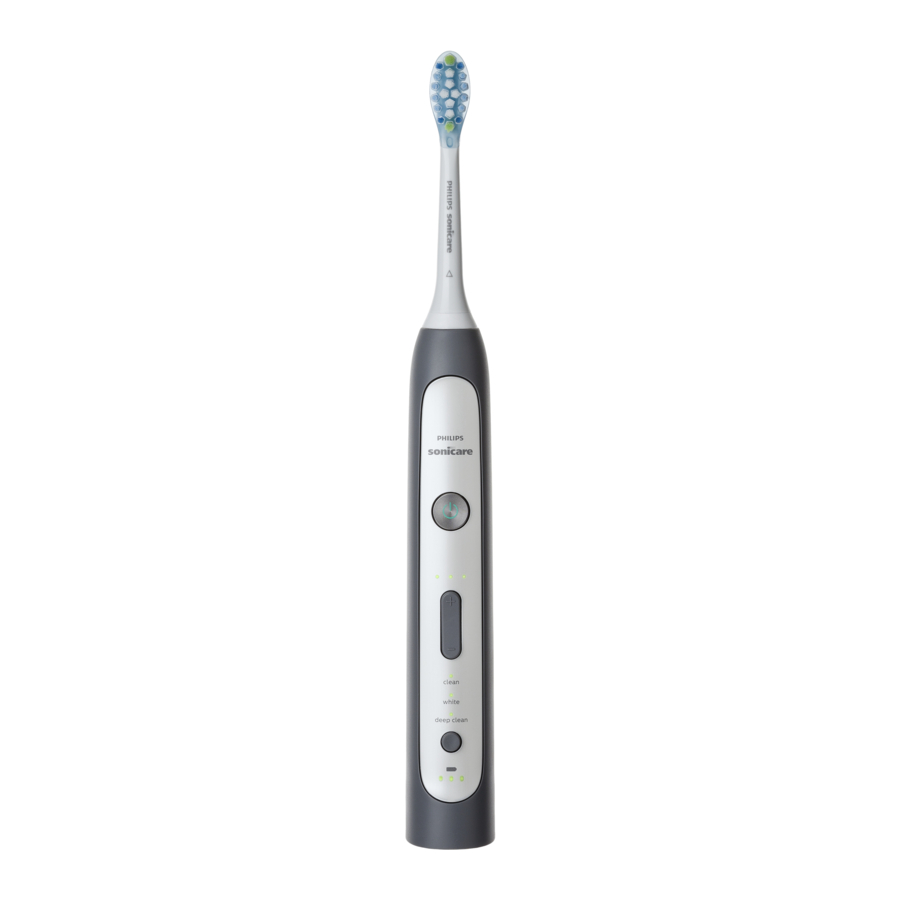

General description

(Fig. 1)

1. Hygienic travel cap
2. Brush head with unique identiier
3. Handle
4. Power on/off button
5. Intensity level indicator
6. Intensity level button (+ and -)
7. Brushing modes
8. Mode button
9. Battery level indicator
10. UV sanitiser and base with integrated charger and cord wrap *urgekÞe"v{rgu"qpn{+

• Not shown: UV light bulb
• Not shown: Sanitiser drip tray
• Not shown: Protective screen for UV light bulb

11. Mains cord with plug
12. Charger cover with brush head holders (speciic types only)
13. Travel charger

• Not shown: Travel case

Note: The contents of the box may vary based on the type purchased.

Preparing for use

Attaching the brush head

1. Align the brush head so the bristles face the front of the handle. (Fig. 2)

2. Firmly press the brush head down on the metal shaft until it stops.

Note: Sonicare Platinum brush heads come with easily identiiable icons to identify your brush head.

Charging the appliance

1. Put the plug of the charger or sanitiser in a wall socket.
2. Place the handle on the charger (Fig. 3).


The flashing light of the battery level indicator shows that the toothbrush is charging.

Note: It takes at least 24 hours to fully charge the battery.

Using the appliance

Brushing instructions

1. Wet the bristles (Fig. 4).

2. Apply a small amount of toothpaste on the bristles. (Fig. 5)

3. Place the toothbrush bristles against the teeth at a slight angle (45 degrees), pressing irmly to make the bristles reach the gumline or slightly beneath the gumline. A change in vibration (and a slight change in sound) alerts you when you apply too much pressure while brushing (Fig. 6).

   Note: Keep the centre of the brush in contact with the teeth at a all times.
4. Press the power on/off button to switch on the Sonicare (Fig. 7).

5. Gently keep the bristles placed on the teeth and in the gumline. Brush your teeth with small back and forth motions so the bristles reach between the teeth (Fig. 8).

   Note:The bristles should lare slightly. Do not scrub.
6. To clean the inside surfaces of the front teeth, tilt the brush handle semi-upright and make several vertical overlapping brushing strokes on each tooth (Fig. 9).
7. Begin brushing in section 1 (outside top teeth) and brush for 30 seconds (45 seconds in Deep Clean mode) before you move to section 2 (inside top teeth). Continue brushing in section 3 (outside bottom teeth) and brush for 30 seconds (45 seconds in Deep Clean mode) before you move to section 4 (inside bottom teeth). Brush section 4 for 30 seconds until the toothbrush switches off (Fig. 10).

Note: To make sure you brush evenly throughout the mouth, divide the mouth into 4 sections using the Quadpacer feature (see chapter Features ).

Note: After you have completed the brushing cycle, you can spend additional time brushing the chewing surfaces of your teeth and areas where staining occurs. You may also brush your tongue, with the toothbrush switched on or off, as you prefer (Fig. 11).

Your Sonicare is safe to use on:

• Braces (brush heads may wear out more quickly when used on braces).
• Dental restorations (illings, crowns, veneers, implants).

Brushing modes

1. Clean: For an exceptional everyday clean (default mode).
2. White: 2 minutes to remove surface stains and 30 seconds to brighten and polish your front teeth.
3. Deep Clean: Provides an invigorating 3 minutes of alternating cleaning and massaging to deliver an exceptionally clean experience. Your Sonicare comes with the Clean mode activated.

Note: When the toothbrush is switched on, you cannot toggle between modes.

1. Before you switch on the Sonicare, press the mode button to toggle between modes.

• The selected brushing mode lights up.
• Once a brushing mode has been selected, it remains active until you select another brushing mode.

Note: When the Sonicare is used in clinical studies, it must be used in the default 2-minute Clean mode at high intensity or in the Deep Clean mode at high intensity or in the Deep Clean mode at high intensity.

Intensity levels per mode

• Low: 1 LED indicator light.
• Medium: 2 LED indicator lights.
• High: 3 LED indicator lights.

Note: to adjust the intensity level to the next higher or lower level, you can press the + button to increase intensity or the - button to decrease intensity at any time during the brushing cycle.

Pressure Sensor

A change in vibration (and a slight change in sound) alerts you when you apply too much pressure while brushing. See chapter Features.

Battery status (when handle is not on charger)

• 1 yellow LED indicates a low charge.
• 3 green LEDs indicate a full charge.

Note: If you hear a long beep and the yellow LED of the battery level indicator lashes, your toothbrush is completely empty and switches off. Place the toothbrush on the charger to recharge it.

Note: To keep the battery fully charged at all times, you may keep your Sonicare on the charger when not in use.

Features

Pressure Sensor

This Sonicare type comes with the Pressure Sensor feature activated.

The Pressure Sensor works in all 3 modes and at all 3 intensity levels. To deactivate or reactivate the Pressure Sensor feature:

1. Place the handle with a brush head attached on the plugged-in charger or sanitiser.
2. Press and hold the power on/off button and the mode button for 2 seconds.

• You hear 1 beep to indicate that the Pressure Sensor has been deactivated
• You hear 2 beeps to indicate that the Pressure Sensor has been activated

Quadpacer

• The Quadpacer is an interval timer that has a short beep and pause to remind you to brush the 4 sections of your mouth. Depending on the brushing mode you have selected, the Quadpacer beeps at different intervals during the brushing cycle. The Quadpacer works in all 3 modes and at all 3 intensity levels (Fig. 10).


The Quadpacer feature on this type has been activated. To deactivate or reactivate the Quadpacer feature:

1. Place the handle with a brush head attached on the plugged-in charger or sanitiser.
2. Press and hold the mode button for 2 seconds.

• You hear 1 beep to indicate the Quadpacer has been deactivated.
• You hear 2 beeps to indicate the Quadpacer has been activated.

Smartimer

The Smartimer indicates that your brushing cycle is complete when it automatically switches off the toothbrush at the end of the brushing cycle. Dental professionals recommend brushing at least 2 minutes twice a day.

Easy-start

The Easy-start feature gently increases power over the irst 14 brushings to ease into the Sonicare experience. The Easy-start feature only works in the Clean mode and at the High intensity level.

This Sonicare type comes with the Easy-start feature deactivated.

To activate or deactivate the Easy-start feature:

1. Attach your brush head to the handle.
2. Place the handle on the plugged-in charger or sanitiser.
3. Activate or deactivate Easy-start:

• To activate Easy-start: Press and hold the power on/off button for 2 seconds. You hear 2 beeps to indicate that the Easy-start feature has been activated.
• To deactivate Easy-start: Press and hold the power on/off button for 2 seconds. You hear 1 beep to indicate that the Easy-start feature has been deactivated.

Note: Each of the irst 14 brushings must be at least 1 minute in length to properly move through the Easy-start ramp-up cycle.

Note: Using the Easy-start feature beyond the initial ramp-up period is not recommended and reduces Sonicares effectiveness in removing plaque.

Sanitising (speciic types only)

• With the UV sanitiser you can clean your brush head after every use (Fig. 12).


Unplug the sanitiser, discontinue use and call Consumer Care if

• The UV light bulb remains on when the door is open.
• The window is broken or missing from the sanitiser.
• The sanitiser gives off smoke or a burning smell while it is operating.

Note: UV light can be harmful to the human eye and skin. Keep the sanitiser out of the reach of children at all times.

1. After brushing, rinse the brush head for 15 seconds and shake off excess water.

Do not place the travel cap on the brush head during sanitisation.

2. Let the brush head to dry in open air for 2 minutes.
3. Place your inger in the door recess on top of the sanitiser and pull open the door (Fig. 13).

4. Place the brush head on one of the 2 pegs in the sanitiser with the bristles facing the light bulb. (Fig. 14)


Note: Only clean Sonicare snap-on brush heads in the sanitiser.

Note: Do not clean Sonicare for Kids brush heads in the sanitiser.

5. Put the plug of the sanitiser in the wall socket.
6. Close the door and press the green power on/off button once to select the UV clean cycle.

Note: You can only switch on the sanitiser if the door is closed properly.

Note: The sanitiser stops if you open the door during the sanitising cycle.

Note: The sanitiser cycle runs for 10 minutes and then shuts off automatically.

• The sanitiser is in operation when the light glows through the window.

Cleaning

Do not clean the brush head, the handle, the travel charger, the charger cover and the UV sanitiser in the dishwasher.

Toothbrush handle

1. Remove the brush head and rinse the metal shaft area with warm water (Fig. 15).


Do not push on the rubber seal on the metal shaft with sharp objects, as this may cause damage.

2. Use a damp cloth to wipe the entire surface of the handle.

Do not use isopropyl rubbing alcohol, vinegar, or essential oil based products to clean the handle or the brush head.

Brush head

1. Rinse the brush head and bristles after each use (Fig. 16).

2. Remove the brush head from the handle and rinse the brush head connection at least once a week with warm water.

UV sanitiser (speciic types only)

Do not immerse the sanitiser in water or rinse it under the tap.

Do not clean the sanitiser when the UV light bulb is hot.

For optimal effectiveness, it is recommended to clean your sanitiser weekly.

1. Unplug the sanitiser.
2. Pull the drip tray straight out of the sanitiser. Rinse the drip tray and wipe it clean with a damp cloth (Fig. 17).

3. Clean all interior surfaces with a damp cloth.
4. Remove the protective screen in front of the UV light bulb. (Fig. 18)

   To remove the screen, grasp the edges next to the snaps, gently squeeze and pull out the protective screen.
5. Remove the UV light bulb.
   To remove the light bulb, grasp it and pull it out of the metal clasp.
6. Clean the protective screen and the UV light bulb with a damp cloth.
7. Reinsert the UV light bulb. To reinsert the light bulb, align the bottom of the light bulb with the metal clasp and push the bulb into the clasp.
8. Reinsert the protective screen. To reinsert the screen, align the pegs on the screen with the slots on the relective surface near the UV light bulb. Push the screen straight into the slots on the sanitiser.

Storage

If you are not going to use the appliance for an extended period of time, remove the mains plug from the wall socket. Then clean the appliance and store it in a cool and dry place away from direct sunlight. You can use the cord wrap feature to store the mains cord neatly.

Replacement

Brush head
Replace Sonicare brush heads every 3 months to achieve optimal results.

Only use genuine Philips Sonicare replacement brush heads.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee lealet for contact details)

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the appliance.
Make sure the battery is completely empty when you remove it.

To remove the rechargeable battery, you need a lat-head (standard) screwdriver. Observe basic safety precautions when you follow the procedure described below. Be sure to protect your eyes, hands, ingers, and the surface on which you work.

1. Remove the toothbrush from the charger, switch it on and let it operate until it stops. Continue to switch on the Sonicare until the battery is completely empty.
2. Insert a lathead (standard) screwdriver into the slot located at the bottom of the handle. Turn the screwdriver anticlockwise to release the bottom cap. (Fig. 21)

3. Place the handle on a solid surface with the buttons facing up and lightly tap the housing 2.5cm from the bottom edge with a hammer.
4. Hold the handle upside down and push down on the shaft to release the internal components of the handle (Fig. 22).

5. Insert the screwdriver under the circuit board, next to the battery connections, and twist to break the connections. Remove the circuit board and pry the battery from the plastic carrier (Fig. 23).


Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee lealet.

The terms of the international guarantee do not cover the following:

• Brush heads.
• Damage caused by use of unauthorised replacement parts.
• Damage caused by misuse, abuse, neglect, alterations or unauthorised repair.
• Normal wear and tear, including chips, scratches, abrasions, discolouration or fading.
• UV light bulb.
