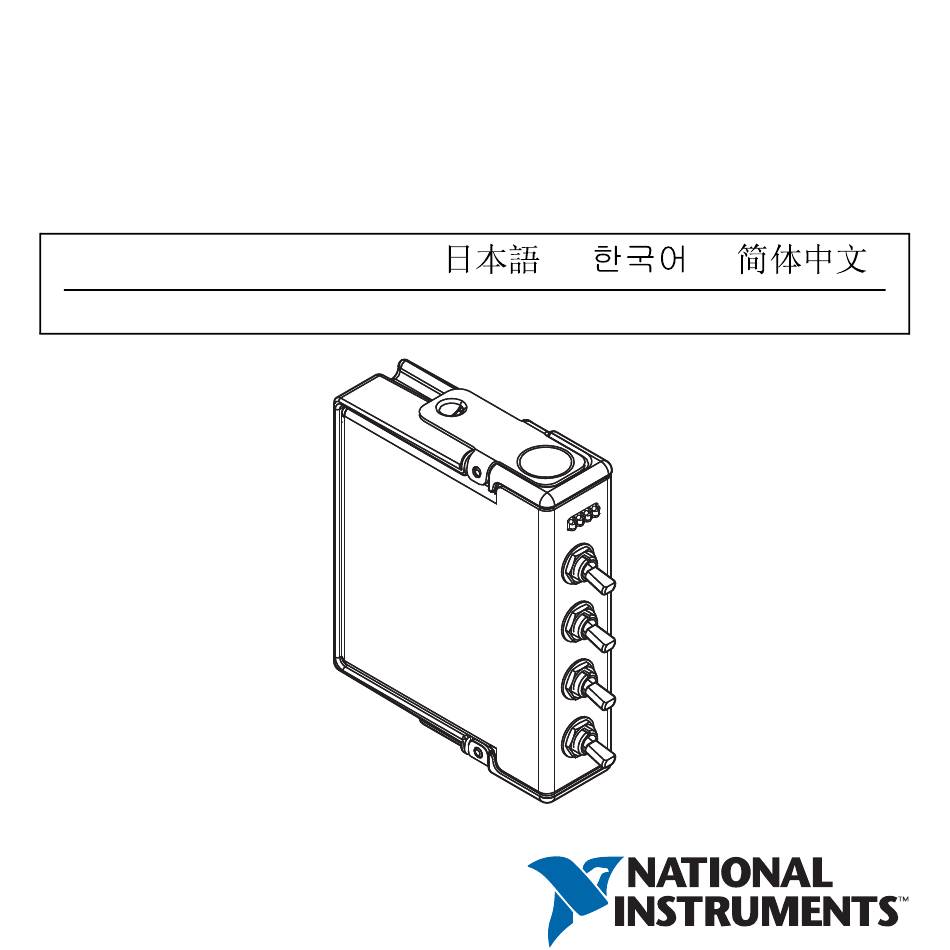

- Page 1 GETTING STARTED GUIDE NI 9344 4-Channel Switch Input and 4-Channel LED Output Module Français Deutsch ni.com/manuals...
- Page 2 Introduction The NI 9344 is a 4-channel switch input and 4-channel LED output module. This document describes how to use the NI 9344 and includes specifications for the NI 9344. The safety guidelines and specifications in this Note document are specific to the NI 9344. The other components in the system might not meet the same safety ratings and specifications.
-
Page 3: Related Information
You can compromise the safety protection built into the product if the product is damaged in any way. If the product is damaged, return it to National Instruments for repair. NI 9344 Getting Started Guide | © National Instruments | 3... -
Page 4: Safety Guidelines For Hazardous Locations
Safety Guidelines for Hazardous Locations The NI 9344 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4, and Ex nA IIC T4 hazardous locations; and nonhazardous locations only. -
Page 5: Special Conditions For Hazardous Locations Use In Europe
NI 9344 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, EEx nC IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment. -
Page 6: Electromagnetic Compatibility Guidelines
Furthermore, any changes or modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. 6 | ni.com | NI 9344 Getting Started Guide... -
Page 7: Special Guidelines For Marine Applications
In addition, take precautions when designing, selecting, and installing measurement probes and cables to ensure that the desired EMC performance is attained. NI 9344 Getting Started Guide | © National Instruments | 7... - Page 8 NI 9344 Front Panel The NI 9344 provides switches for four digital input channels and LEDs for four digital output channels. You can program the switches to control items in your software application. Figure 1. NI 9344 Front Panel User LED...
-
Page 9: Led Indicators
LED Indicators The NI 9344 has four user LEDs for digital output channels. You can program the user LEDs as indicators for your software application. You can program the LEDs and the switches independently. Figure 2. NI 9344 LEDs A User LED0... -
Page 10: Specifications
Power Requirements Power consumption from chassis Active mode ....... 145 mW max Sleep mode ......... 25 μW max Thermal dissipation Active mode ....... 145 mW max Sleep mode ......... 25 μW max 10 | ni.com | NI 9344 Getting Started Guide... -
Page 11: Physical Characteristics
Channel-to-channel ....None Channel-to-earth ground .... None Hazardous Locations U.S. (UL) .......... Class I, Division 2, Groups A, B, C, D, T4; Class I, Zone 2, AEx nA IIC T4 NI 9344 Getting Started Guide | © National Instruments | 11... - Page 12 UL 60079-0: Ed 5, UL 60079-15: Ed 3, • CSA 60079-0:2011, CSA 60079-15:2012 For UL and other safety certifications, refer to the Note Online Product Certification product label or the section. 12 | ni.com | NI 9344 Getting Started Guide...
-
Page 13: Electromagnetic Compatibility
Class A equipment is intended for use in commercial, light-industrial, and heavy-industrial locations. In Europe, Canada, Australia and New Zealand (per CISPR 11) Class A equipment is intended for use only in heavy-industrial locations. NI 9344 Getting Started Guide | © National Instruments | 13... -
Page 14: Online Product Certification
To obtain product certifications and the Declaration of Conformity (DoC) for this product, visit , search by ni.com/certification module number or product line, and click the appropriate link in the Certification column. 14 | ni.com | NI 9344 Getting Started Guide... -
Page 15: Shock And Vibration
Shock and Vibration To meet these specifications, you must panel mount the system. The switches will not self-toggle while the NI 9344 remains within the operating shock and vibration specifications. Operating vibration Random (IEC 60068-2-64)..5 g , 10 Hz to 500 Hz Sinusoidal (IEC 60068-2-6) .. -
Page 16: Environmental Management
......5,000 m Indoor use only. Environmental Management NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers. -
Page 17: Waste Electrical And Electronic Equipment (Weee)
WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/ environment/weee National Instruments (RoHS) National Instruments RoHS (For information ni.com/environment/rohs_china about China RoHS compliance, go to ni.com/ environment/rohs_china NI 9344 Getting Started Guide | © National Instruments | 17... -
Page 18: Worldwide Support And Services
(EMC) and product safety. You can obtain the DoC for your product by visiting . If your product supports calibration, ni.com/certification you can obtain the calibration certificate for your product ni.com/calibration 18 | ni.com | NI 9344 Getting Started Guide... - Page 19 United States, visit the Worldwide Offices section of to access the branch office ni.com/niglobal websites, which provide up-to-date contact information, support phone numbers, email addresses, and current events. NI 9344 Getting Started Guide | © National Instruments | 19...
- Page 20 Notice at ni.com/patents . You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data.
