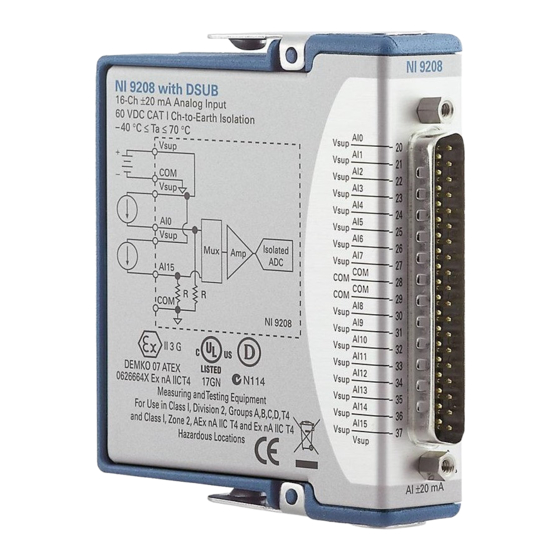

- Page 1 GETTING STARTED GUIDE NI 9208 16-Channel, ±20 mA, 24-Bit Analog Input Module...
-
Page 2: Safety Guidelines

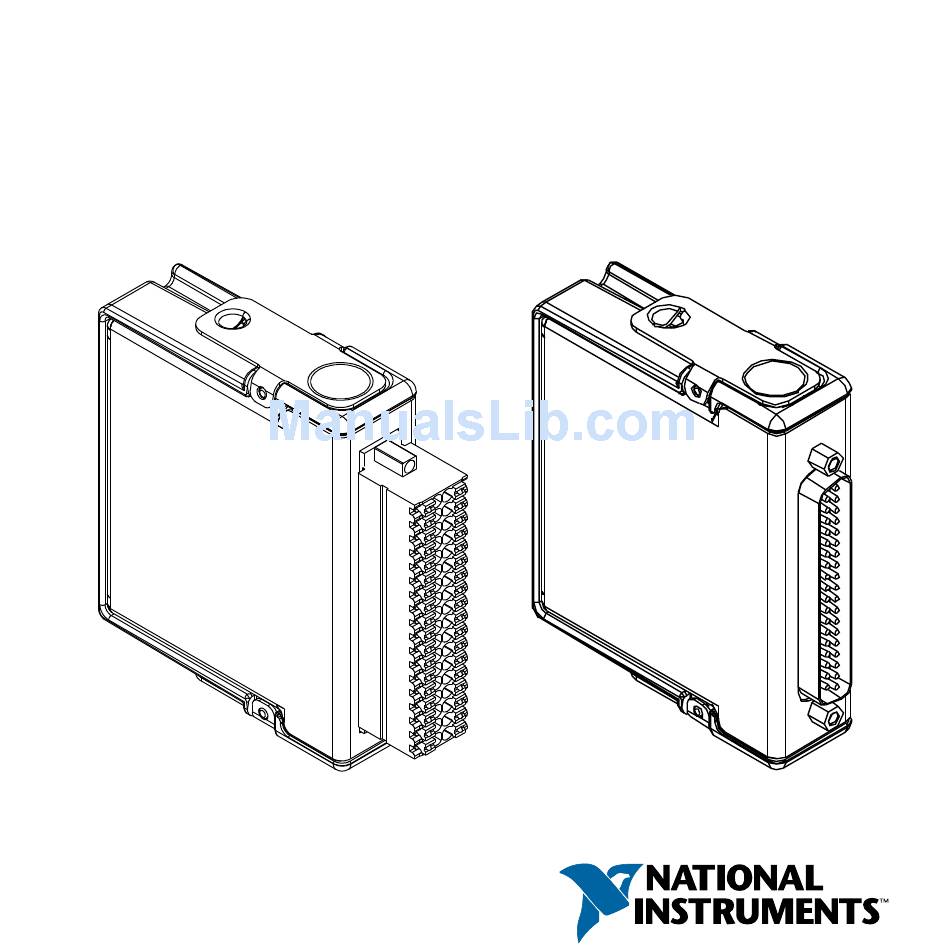

This document explains how to connect to the NI 9208. In this document, the NI 9208 with spring terminal and the NI 9208 with DSUB are referred to inclusively as the NI 9208. Before you begin, complete the software and... -
Page 3: Ni 9208 With Spring Terminal Safety Voltages
115 V for U.S. or 230 V for Europe. Do not connect the NI 9208 to signals or use Caution for measurements within Measurement Categories III or IV. NI 9208 Getting Started Guide | © National Instruments | 3... -
Page 4: Ni 9208 With Dsub Safety Voltages
This category is for measurements of voltages from specially protected secondary circuits. Such voltage measurements include signal levels, special equipment, limited-energy parts of equipment, circuits powered by regulated low-voltage sources, and electronics. 4 | ni.com | NI 9208 Getting Started Guide... -
Page 5: Safety Guidelines For Hazardous Locations
CAT III, or CAT IV. Safety Guidelines for Hazardous Locations The NI 9208 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4 and Ex nA IIC T4 hazardous locations; and nonhazardous locations only. - Page 6 II 3G and is suitable for use in Zone 2 hazardous locations, in ambient temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9208 in Gas Group IIC hazardous locations, you must use the device in an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
-
Page 7: Electromagnetic Compatibility Guidelines
(EMC) stated in the product specifications. These requirements and limits provide reasonable protection against harmful interference when the product is operated in the intended operational electromagnetic environment. NI 9208 Getting Started Guide | © National Instruments | 7... - Page 8 To ensure the specified EMC performance, Caution operate the NI 9208 with DSUB only with shielded cables and accessories. Do not use unshielded cables or accessories unless they are installed in a shielded...
-
Page 9: Special Conditions For Marine Applications
In addition, take precautions when designing, selecting, and installing measurement probes and cables to ensure that the desired EMC performance is attained. NI 9208 Getting Started Guide | © National Instruments | 9... -
Page 10: Preparing The Environment
Preparing the Environment Ensure that the environment in which you are using the NI 9208 meets the following specifications. Operating temperature -40 °C to 70 °C (IEC 60068-2-1, IEC 60068-2-2) Operating humidity 10% RH to 90% RH, (IEC 60068-2-78) noncondensing... - Page 11 NI 9208 Pinout AI10 AI11 AI10 AI12 AI11 AI12 AI13 AI13 AI14 AI14 AI15 AI15 NI 9208 Getting Started Guide | © National Instruments | 11...
-
Page 12: Connecting An External Power Supply
Voltage supply connection Connecting an External Power Supply You can connect an external power supply to the NI 9208. This power supply provides the current for the devices you connect to the module. Connect the positive lead of the power supply to a Vsup pin and the negative lead of the power supply to COM. -
Page 13: Connecting A Loop-Powered Current Transducer
Do not remove or insert modules if the Caution external power supply connected to the Vsup and COM pins is powered on. Connecting a Loop-Powered Current Transducer External Power Supply – Loop-Powered Current Transducer NI 9208 NI 9208 Getting Started Guide | © National Instruments | 13... -
Page 14: Connecting A Three-Wire Current Transducer
Connecting a Three-Wire Current Transducer External Power Supply – Three-Wire Current – Transducer NI 9208 14 | ni.com | NI 9208 Getting Started Guide... -
Page 15: Ni 9208 Connection Guidelines
NI 9208 Connection Guidelines • Make sure that devices you connect to the NI 9208 are compatible with the module specifications. • You must use 2-wire ferrules to create a secure connection when connecting more than one wire to a single terminal on the NI 9208 with spring terminal. -
Page 16: Where To Go Next
NI 9208 Datasheet NI 9208 Datasheet NI-RIO Help NI-DAQmx Help LabVIEW FPGA Help LabVIEW Help RELATED INFORMATION C Series Documentation Services & Resources ni.com/services ni.com/info cseriesdoc Located at ni.com/manuals Installs with the software 16 | ni.com | NI 9208 Getting Started Guide... -
Page 17: Worldwide Support And Services
You can obtain the DoC for your product by visiting ni.com/certification. If your product supports calibration, you can obtain the calibration certificate for your product at ni.com/calibration. NI 9208 Getting Started Guide | © National Instruments | 17... - Page 18 National Instruments Patent Notice at . You can find information about end-user ni.com/patents license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at for the NI ni.com/legal/export-compliance global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/ export data.
