Royalcraft TITAN-01 Assembly Instructions Manual

2.5/3m square gazebo
Hide thumbs

Advertisement

Table of Contents

The Gazebo should be assembled at the place intended for use.
Diagrams are for the understanding of the Assembly Purpose only;
And they may not represent the actual appearance accurately.
IMPORTANT, RETAIN FOR FUTURE REFERENCE
Produced in China for A. Mir & Co., Ltd.
© A. Mir & Co., Ltd.

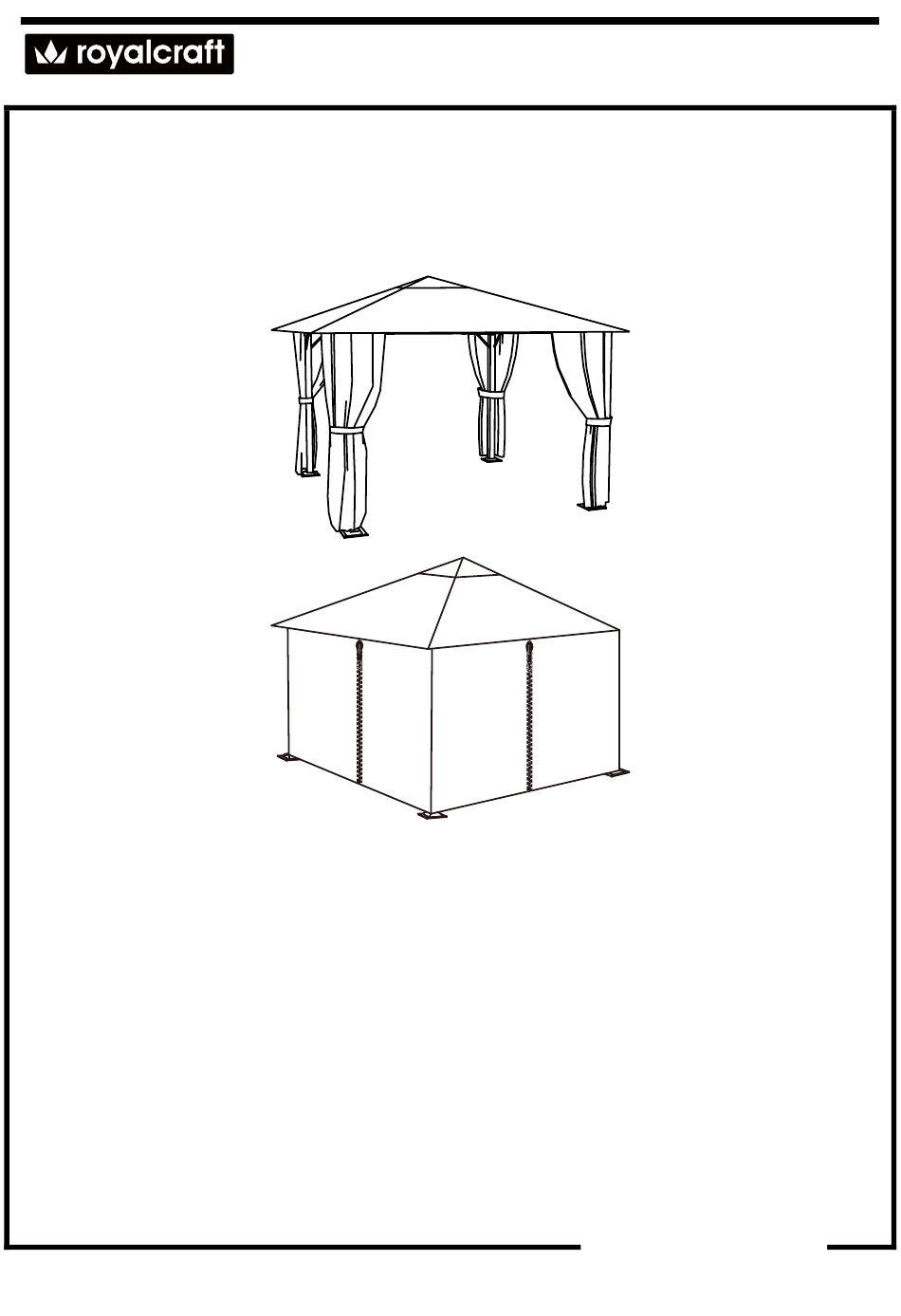

TITAN 2.5/3M SQUARE GAZEBO
Item Code: TITAN-01, TITAN-02
Assembly Instructions
Product size:
250 X 250 X H250 CM
300 X 300 X H250 CM
Note:
they are not drawn to the scale.
READ CAREFULLY
www.royalcraft.co.uk
1 / 10
