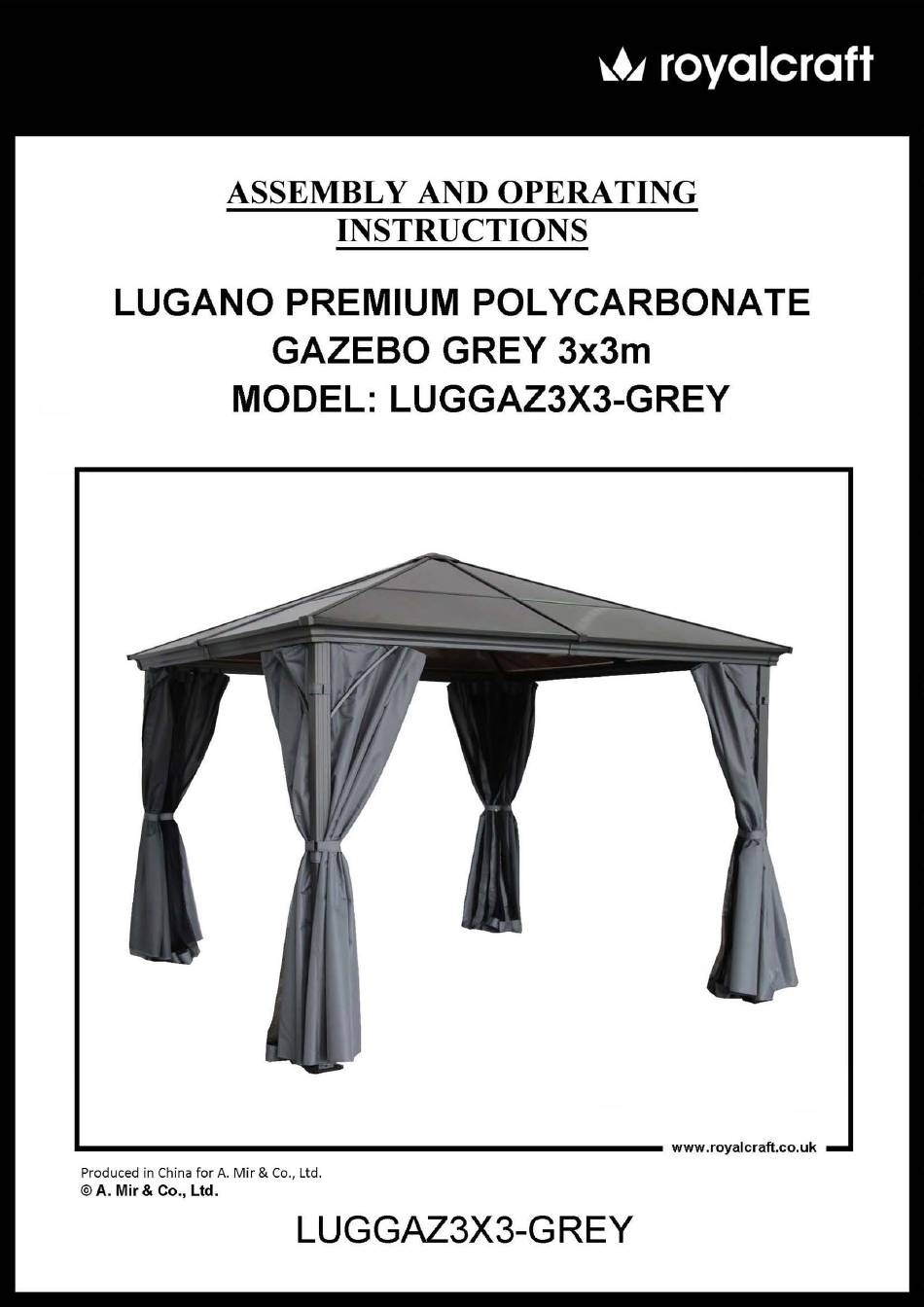

Summary of Contents for Royalcraft LUGANO PREMIUM POLYCARBONATE
- Page 2 1. In the event that your gazebo needs replacement parts, repairs or you require assistance with regards to assembly; please contact our customer sales team by email info@royalcraft.co.uk 2. For cleaning: Use a mild domestic soap or soft detergent and wash with warm water using a sponge or microfibre fabric.
- Page 3 - 3 -...
- Page 4 STEP ONE: BOLTS NEEDED: H1 CONNECT PART A WITH PART U STEP TWO: BOLTS NEEDED: H 2A. SLIDE 6 PART “O” INTO A1 AND 6 PART “O” INTO A2 2B. CONNECT A1 AND A2 USING PART K - 4 -...
- Page 5 STEP THREE: BOLTS NEEDED: H, H1, H2 3A. CONNECT PARTS A1 AND A2 TO PART A USING H2 SCREWS ON THE OUTSIDE AND H1 SCREWS ON THE INSIDE 3B. CONNECT PART L TO PART A AND A1 (A2) USING H SCREWS STEP FOUR: BOLTS NEEDED: H3, H REPEAT STEP 3 TO COMPLETE YOUR FOUR SIDES...
- Page 6 STEP FIVE: BOLTS NEEDED: H1 5A. CONNECT PART I TO PART C 5B. CONNECT PART G TO PART B 5C. CONNECT ALL PART C AND B TO PART F (TOP) & E (BOTTOM) ENSURING PART B IS IN ALL CORNERS STEP 6 BOLTS NEEDED: H1 CONNECT YOUR ROOF SECTION BUILT IN STEP 5 TO YOUR FRAME WITH PART B IN...
- Page 7 STEP 7 BOLTS NEEDED: H3, H4 7A. SLIDE PANEL 1 AND PANEL 2 INTO YOUR FRAME 7B. SLIDE PART C1 TO CONNECT TO PANELS 1 AND 2 7C. SLIDE PANELS 3 AND 4 INTO YOUR FRAME 7D. SLIDE D2 AND D1 BELOW PANELS 3 AND 4 AND SECURE THEM USING BOLT H4 7E.
- Page 8 STEP 8 8A. SLIDE PART X INTO THE INSIDE TRACK 8B. SLIDE PART W INTO THE OUTSIDE TRACK 8C. SECURE YOUR FRAME INTO THE GROUND USING PART Y (ONLY AVAILABLE FOR GRASS) IF YOU WISH TO SECURE TO CONCRETE YOU WILL NEED TO PURCHASE BOLTS FOR THIS.
