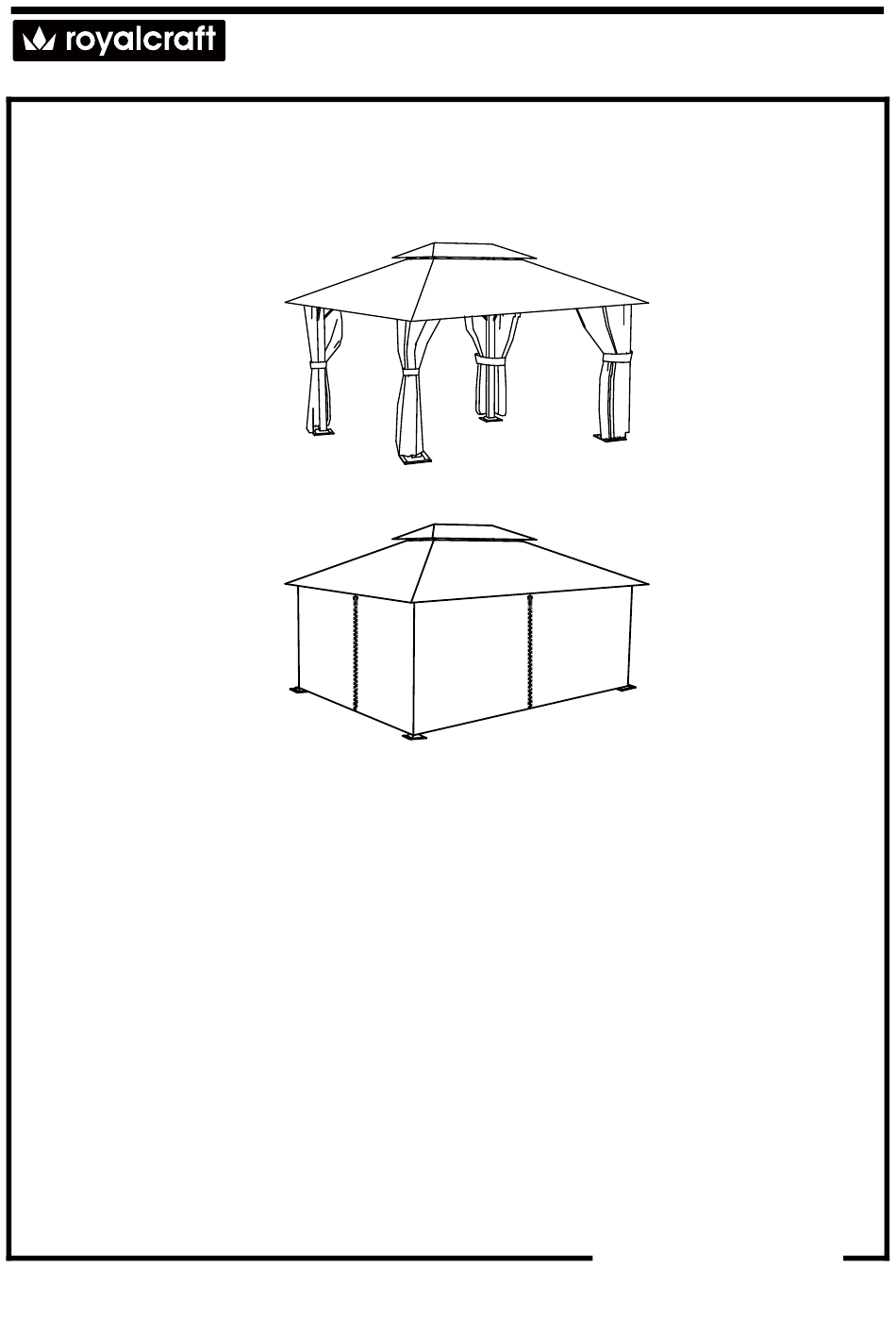

TITAN 4X3M RECTANGULAR GAZEBO
Item Code: TITAN-03
Assembly Instructions
Product size:
400 X 300 X H250 CM
The Gazebo should be assembled at the place intended for use.
Note:
Diagrams are for the understanding of the Assembly Purpose only;
they are not drawn to the scale.
And they may not represent the actual appearance accurately.
IMPORTANT, RETAIN FOR FUTURE REFERENCE
READ CAREFULLY
www.royalcraft.co.uk
Produced in China for A. Mir & Co., Ltd.
© A. Mir & Co., Ltd.
1 / 11
Advertisement
Related Manuals for Royalcraft TITAN-03
Summary of Contents for Royalcraft TITAN-03
- Page 1 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Assembly Instructions Product size: 400 X 300 X H250 CM The Gazebo should be assembled at the place intended for use. Note: Diagrams are for the understanding of the Assembly Purpose only; they are not drawn to the scale.
- Page 2 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Before you start Warnings IMPORTANT, RETAIN FOR FUTURE REFERENCE Select ideal location. Ideally, the gazebo READ CAREFULLY should be set up in the desired location to avoid moving it after assembly. See enclosed instructions for assembly, safety and care information.
- Page 3 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Do not sit or lean onto the rims of this product. Number of people required for assembly Do not use this product if parts are missing, damaged or worn. Minimum Two people required for safe assembly Never use scourers, abrasives or chemical cleaner.
-
Page 4: Maintenance
TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 use the structure as a support; a stepladder is recommended. D. Check all screws on a regular basis to maintain the solidity of the structure. E. Keep the instructions and parts list for further use. - Page 5 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Components, fixtures & fittings (not actual size) Parts List Part Part Diagram Qty. Diagram Qty. 4 PCS 2 PCS Pillar Horizontal Beam 3 PCS 1 PC Supporting Bar with Supporting Bar Adjustable End...
- Page 6 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 30 PCS 48 PCS M6*15mm M6*15mm Bolt Bolts and Washers 10 PCS 1 PC M6*35mm Bolts, Nuts, Washers and Caps Allen Key 1 PC 16 PCS Spanner Peg Stake Step by step assembly instructions Step One 1) Attach the U-Shaped Bracket (G) to the Top End of the Pillar (A) using Bolt (N15).
- Page 7 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Step Two 1) Attach the U-Shaped Bracket (G) to the Middle Part of the Horizontal Beam (B) using Bolt (N15). Repeat above assembly process for another Horizontal Beam. 2) Attach the U-Shaped Bracket (G) to the Beam (P) using Bolt (N15).
- Page 8 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Step Four Attach the Beam (P) and (Q) to the above Assembled Components using Bolts (W15). Repeat above assembly process for other Beams. 16 PCS Bolt and Washers (W15) are needed in this Step.
- Page 9 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Step Six Attach the 8 PCS Corner Supporting Bars (I) to the above Assembled Components using Bolts and Washers (W15). 16 PCS Bolts and Washers (W15) are needed in this Step. Step Seven Attach the Supporting Bar (C), Supporting Bar (E) and Supporting Bar with Adjustable End (D) to the Hubs (F).
- Page 10 TITAN 4X3M RECTANGULAR GAZEBO Item Code: TITAN-03 Step Eight Attach the Canopy Frame to the U-Shaped Bracket (G) using Bolts, Nuts, Washers and Caps (W35). Note: The Long Supporting Bars (C) shoud be positioned to the Gazebo Corner. 10 PCS Bolts, Nuts, Washers and Caps (W35) are needed in this Step.
-
Page 11: Care Instructions
Please ensure your frame is secured to the ground once built. It is advised to remove your canopy during high winds and winter months. Royalcraft recommends using Fabsil to protect your Gazebo roof canopies & curtains. It can also be used on cushions & parasols or any material that you leave outside in your garden.
