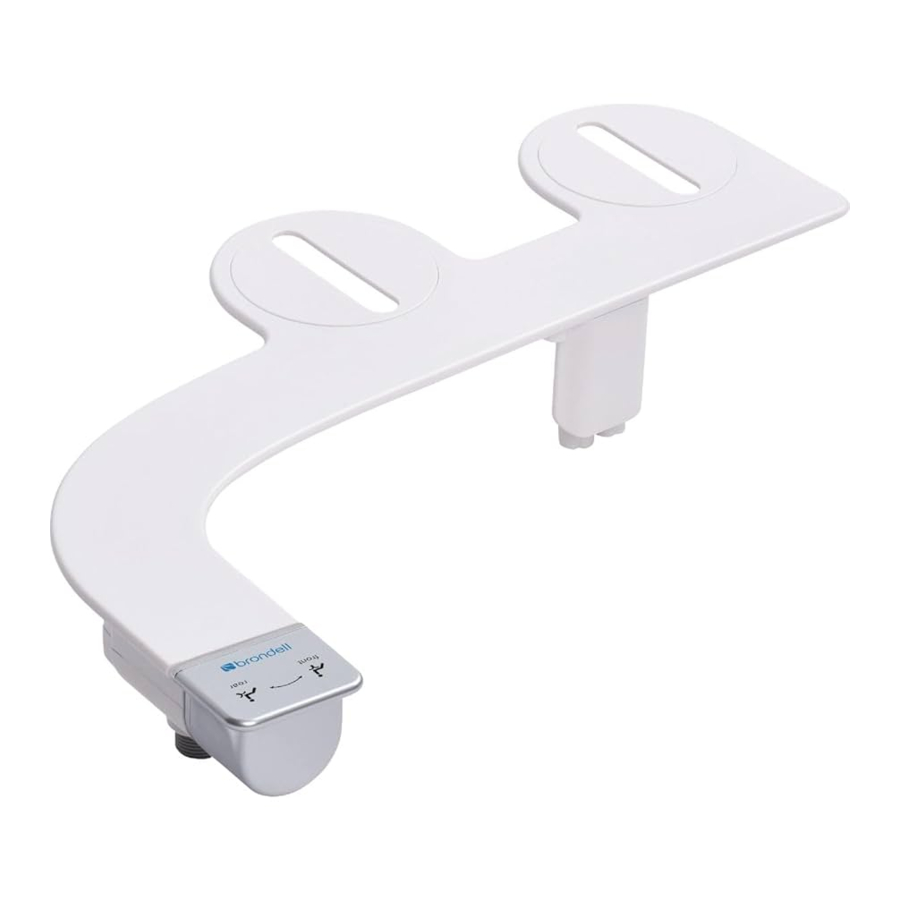

brondell SIMPLESPA SS-250 Manual

Product Features

• Separate Front (feminine) and Rear wash nozzles
• Hygienic retractable nozzles
• High-quality ABS material with full body panel
• Ambient temperature bidet wash
• Adjustable water pressure
• Ceramic-core internal valve
• High-quality metal ⅞" T-valve
• Durable braided metal cold water hose
• No electricity or batteries required
• Easy installation and adjustable toilet fit
• All accessories included for standard installation
• One-year warranty

Product Components

Product Dimensions

Installing the Bidet Attachment

1. Remove the existing toilet seat.
   1. Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen mounting bolts underneath the seat.
   2. Remove the toilet seat and set the seat, mounting bolts, and hardware aside.

2. Turn off water supply valve and flush toilet.
   1. Turn off water supply at the wall to stop flow of water.
   2. Flush toilet and hold down handle to completely empty toilet tank.
   3. Disconnect water supply hose from the fill valve under the toilet tank.

3. Connect ⅞" T-Valve to Water Supply Line and Fill Valve under Toilet Tank.
   1. Install the ⅞" T-valve with included rubber washer to the incoming water connection on the bottom of your toilet tank. Ensure the rubber washer is properly seated, tapered side up.

   2. Connect the cold water supply line coming from the wall to the bottom of the T-valve.


4. Connect the Bidet Hose to the T-Valve.
   1. The ends of the bidet hose are two different sizes. Determine which is the smaller of the two ends.
   2. Connect the smaller end of the braided metal bidet hose to the remaining open side of the installed T-valve.

5. Install Adjustable Mounting Brackets into the Bidet Attachment
   1. Line up the dots of one of the adjustable mounting brackets with the dots around one of the open mounting bracket holders.
   2. Push the bracket into the bracket holder until it snaps into place.
   3. Repeat Steps 1 and 2 to install the other adjustable mounting bracket.
6. Install Bidet Attachment on Toilet.
   1. Place bidet attachment on the toilet with the nozzles close to the back of the toilet, leaving a slight gap between the toilet and the nozzles. This will vary by toilet.

   2. Make sure the adjustable brackets line up with the holes in the toilet fixture. You may need to rotate the adjustable brackets accordingly to line up properly.

   3. Replace the toilet seat on top of bidet attachment and secure using original toilet seat hardware. Make sure to tighten so that the bidet attachment and seat do not move.

   4. Ensure the control knob is lying flat and isn't turned to one of the operating positions to prevent water from accidentally spraying out of the toilet bowl.

7. Connect the Bidet Hose to the Bidet Attachment Connect open end of bidet hose to the connection underneath the bidet attachment.

8. Turn on the Water Supply and check for leaks.
   1. Open the main water supply valve slowly and check for leaks.
   2. Wait 5-10 minutes, check again and if there are no leaks, continue.

NOTE: If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use the provided Teflon Tape (Plumber's Tape) for any leaking connections.

Use and Maintenance

Using the SimpleSpa
To activate a wash function, turn the control knob to the left for a Front (feminine) wash, or to the right for a Rear wash.

• The further the knob is turned, the higher the water pressure will be.
• To lower the water pressure, turn the knob back towards the center.
• To stop the flow of water, rotate the knob to center so it sits flat.

Cleaning the SimpleSpa
To clean the nozzles, open the Nozzle Guard door by pulling it gently open on the right side. With the nozzle revealed, pull down on the nozzle cap, and clean the spray holes and nozzle using a toothbrush or soft cloth and mild detergent (such as dish soap). When cleaning, be careful not to drop or flush the nozzle cap. Periodically tighten the cap so it doesn't become loose with use and cleaning.

To clean the SimpleSpa, use a mild cleaner such as Simple Green or Windex spray. Do not scrub or use harsh, abrasive products to clean the SimpleSpa, as they may scratch the product.

Short Term Non-Use
If the product will not be used for more than a few weeks, you may consider shutting the water supply off at the wall for extra precaution.

Contact:
Brondell, Inc.
PO Box 470085
San Francisco, CA 94147-0085
Phone: 1-888-542-3355
Email: support@brondell.com
Web: www.brondell.com
For questions, contact Brondell
Customer Service: 1-888-542-3355
