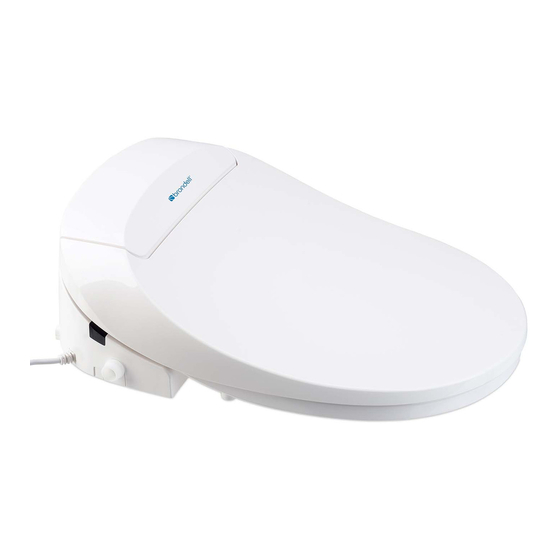

brondell Swash 300 Quick Start Manual

Toilet Fit Guide
You'll need to measure your toilet to determine:
- Whether a Brondell Swash will fit (the Swash fits most residential toilets)
- Whether you need an Elongated or Round Swash
Measure the distance between the bolt
holes to ensure the space is between
5¼ inches and 8 inches.
5¼" – 8"
Measure the distance from the bolt holes
to the front of the toilet bowl
if you have a round or elongated fixture.
ELONGATED
If your measurement is 18" – 19½"
Order an
ROUND
If your measurement is 16" – 17¾"
Order a
Do you have an unusual toilet or questions about your measurements?
Please contact Brondell Customer Service at 888-542-3355, or send us an email at support@brondell.com
for additional help.
to determine
18" – 19½"
Elongated Swash
16" – 17¾"
Round Swash
Measure the distance from the center of the
bolt holes to the toilet tank
proper clearance. The toilet will need at least
1½ inches of clearance.
≥ 1½"
Is the distance from the center of the bolt holes to
the toilet tank less than 2"?
The Swash may extend slightly over the
front edge of your toilet bowl.
≤ 20½"
If this measurement is less than 20½", consider purchasing
a Round size to reduce the amount the seat extends over
the front edge, even if your fixture is elongated.
The overall length of the Round Swash is 19.4".
A distance less than 19.4" from the tank to the front of the
toilet bowl will also cause overhang.
to determine
French
Curved
Tank
≥ 1½"
from center
Measure the distance from
the front of the toilet tank to
the front of the toilet bowl.
