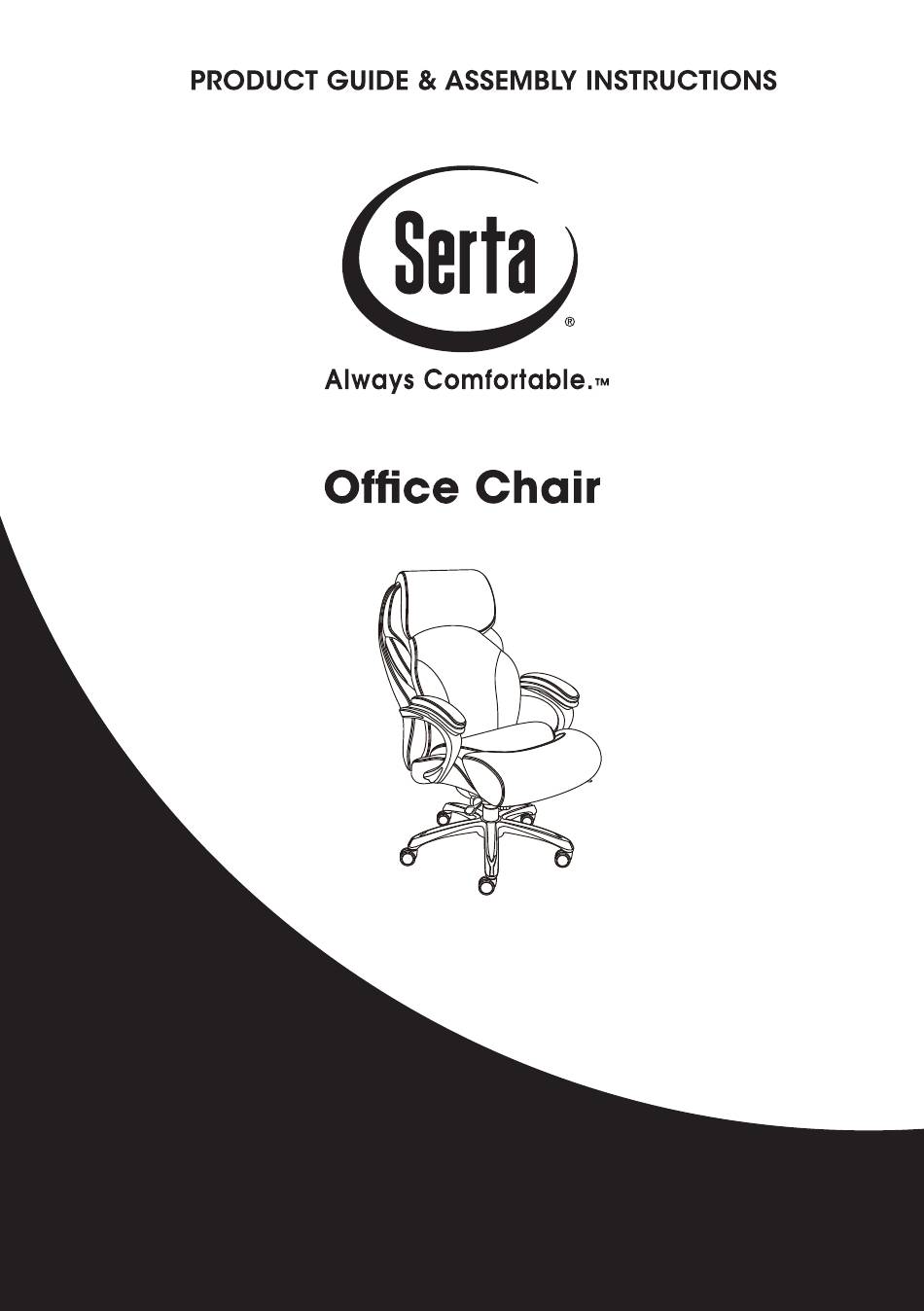

  • Page 1 So comfortable, you’ll feel the difference the moment you sit down.
  • Page 2 Should you prefer to speak with a customer service representative, you may call toll free: 1-855-372-2315...
  • Page 3 Guidelines FAILURE TO FOLLOW THESE WARNINGS WHEN IN USE COULD RESULT IN INJURY Do not stand on the item or use as a step ladder • Do not use this item unless all bolts and screws are • rmly secured and fastened. Check all bolts and screws every 90 days.
  • Page 4 WARNING: DO NOT LET CHILDREN PLAY IN OR AROUND THE UNIT DUE TO THE POSSIBLE RISK OF INJURY. Pre-Assembly Preparation: Please read through this instruction booklet before beginning assembly of this item. Two adults are recommended for assembly. Clear out the space for assembly and lay out all •...

  • Page 5: Parts List

    Parts List Casters (5) Star Base (1) Gas Lift with Telescoping Cover (1) Seat Plate (1) Left Arm (1) Right Arm (1) Seat Cushion (1) Back Cushion (1) Plastic Shroud (1)
  • Page 6 Parts List Screws (2) Screws (2) Screws (4) M8 x 25 M8 x 40 M8 x 35 Screws (4) Arm Inserts (2) Arm Inserts (2) M8 x 40 Allen Key (1)
  • Page 7 Step 1 1. Place the Star Base (B) upside down and insert 5 Casters (A) into the holes on the Star Base (B).
  • Page 8 Step 2 Turn the Star Base (B) over and insert the Gas Lift with Telescoping Cover (C) through the center hole on top of Star Base (B).
  • Page 9 Step 3 Attach Seat Plate (D) to the bottom of the Seat Cushion (F) (with the front of the seat plate facing the front of seat cushion). Attach by using M8 x 40 Screws (J) for the front holes of the Seat Plate (D) and M8 x 25 Screws (I) for the rear holes of the Seat Plate (D) and tighten screws.
  • Page 10 Step 4 Insert Levers (D1 & D2) of Seat Plate (D) to the pre-attached cable lever receivers on the underside of Seat Cushion (F) (with the front of the levers facing the front of seat cushion). Push down the key on the receivers to pull out the levers. *Note : Fix the cable for the seat plate into the plastic clips attached to the bottom of the seat cushion.
  • Page 11 Step 5 Align the Back Cushion (G) with the Seat Cushion (F) by positioning the back support plate over the Seat Plate (D) with M8 x 35 Screws (K). *Note : Do not tighten the screws completely.
  • Page 12 Step 6 Insert M8 x 40 Screws (L) into arm holes, attaching Arms (E1 & E2) (with the front of arms facing the front of seat cushion) to sides of Seat Cushion (F) and Back Cushion (G). *Note : Tighten all the screws completely. Remember to tighten the back support plate screws.
  • Page 13 Step 7 Put the Plastic Shroud (H) over the Seat Plate (D) (with front of plastic shroud facing the front of seat cushion). Align shroud posts to holes on bottom of Seat Cushion (F) and press into position.
  • Page 14 Step 8 Position the assembled chair upright with the seat plate facing down. Insert the Gas Lift with Telescoping Cover (C) into the center hole of the Seat Plate (D).
  • Page 15 Step 9 Place the Arm Inserts (M1 & M2 & N1 & N2) into arm grooves once all screws have been tightened.
  • Page 16 Step 10 Remove the Packing Material (P) placed between the back cushion and the air frame. The chair is now ready for use.
  • Page 17 Operating Instructions Function Instruction - 1 To Adjust Seat Height : While seated, lean forward and reach under the right side of the chair to find the lever. Lift the lever and raise your body up slightly to allow the chair to rise to the desired height. Once desired height is reached, release lever to lock chair at desired height.
  • Page 18 Operating Instructions Function Instruction - 2 To Operate Tilt Lockout : While seated, reach under the left side of the chair to find the lever. Push down the lever and lean back to allow the chair to tilt backwards. To lock the chair in the upright or vertical position, sit upright and pull the lever to the up position.
  • Page 19 Operating Instructions Function Instruction - 3 To Adjust Tension On The Tilt : Reach under the front center of the chair, grasp the round knob (R) and turn it counter- clockwise to stiffen the tilt mechanism for a heavier user. Turn the knob (R) clockwise to loosen the tilt mechanism for a lighter user.
  • Page 20 Operating Instructions Function Instruction - 4 About the breathability of the Air Lumbar Cushion : While seated, the open-air contours of the cushion which is designed to breathe and ex, can dynamically provide continuous support by connecting with your body’s natural movement.
  • Page 21 Operating Instructions Function Instruction - 5 About the Neutral Posture of the Air Lumbar Cushion : The AirTM chair has been shown to help the user achieve Neutral Posture. Neutral Posture has been shown to reduce back strain and increase long term seated comfort. *Provides constant support as you lean back and twist *Flexible lumbar pivots and conforms following your movement *Continuous proper lumbar support helps keep...

  • Page 22: Limited Warranty

    Limited Warranty The manufacturers products are warrantied against defects in material and workmanship while owned by the “Original Purchaser”. The term “Original Purchaser” is de ned as the party or entity which purchases this manufacturer’s furniture from an authorized retailer as shown by the original sales receipt.
