OPERATOR'S
MANUAL
Congratulations on owning a Scag RC Extreme Slope Mower! This manual
contains the operating instructions and safety information for your Scag remote
controlled mower. Reading this manual can provide you with assistance in
maintenance and adjustment procedures to keep your machine performing at
maximum efficiency. The specific models that this book covers are listed on the
inside cover. Before operating your machine, please read all the information
enclosed.
© 2025
Scag Power Equipment
Division of Metalcraft of Mayville, Inc.

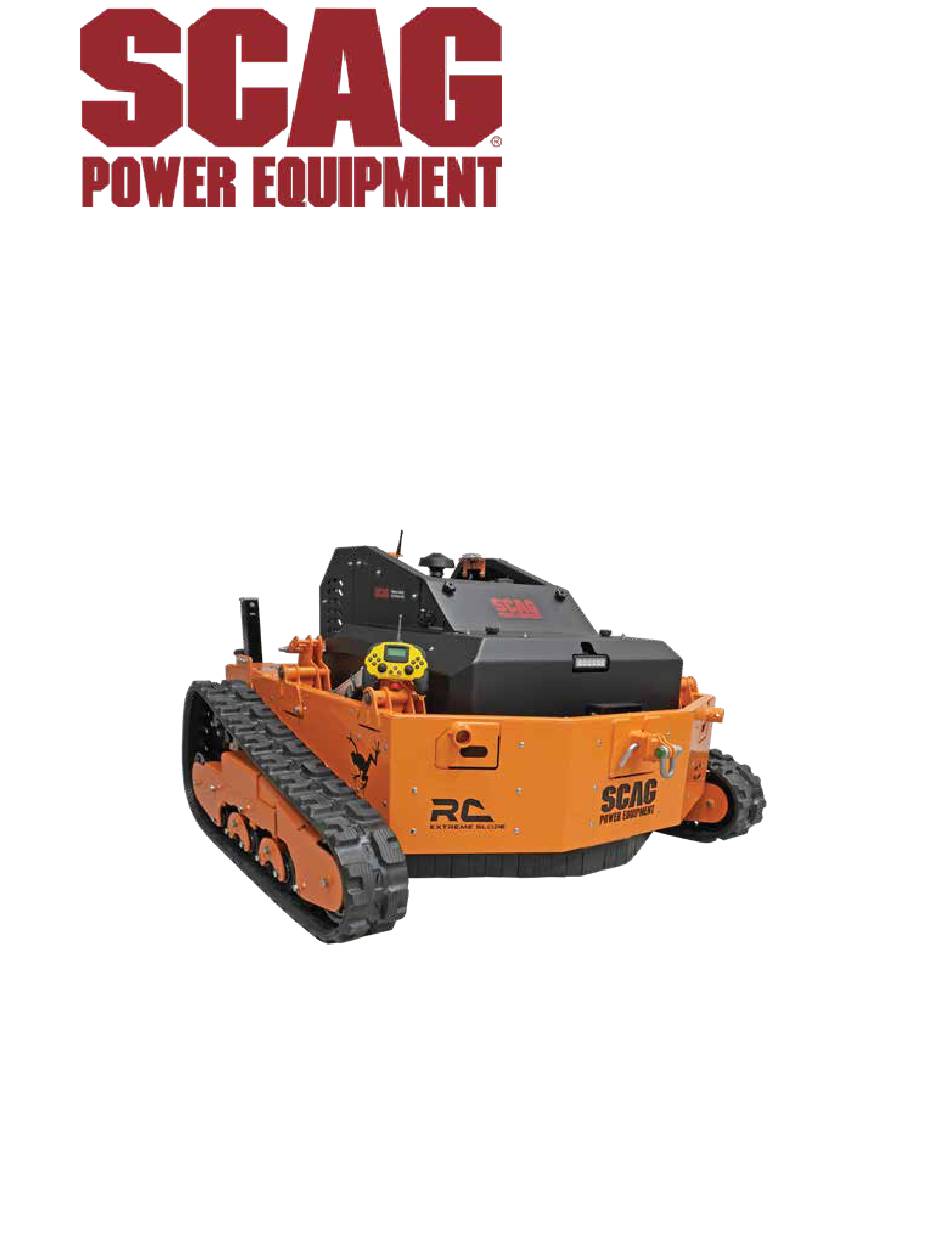

RC Extreme
Slope Mower
Model:
SRC-52D-37BV-EFI
PART NO. 03596
PRINTED 4/2025
PRINTED IN USA
