AUSTRALIAN MONITOR XR10 Brochure

Features:

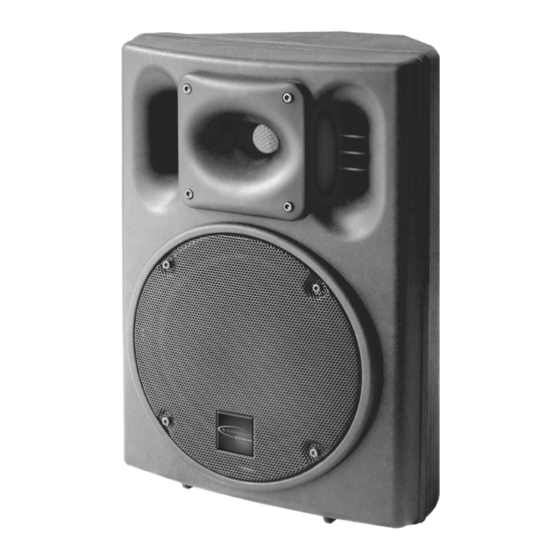

Two-way passive speaker with one 10" woofer
and one 1.5" driver
Highly durable poly propylene injection
molded cabinet.
Voice coil in the 10" woofer is made from
copper cladding aluminium ribbon wire.
Heavy duty protective grille.
High frequency driver protection.
Rotatable 90∞ x 60∞ (HxV) dispersion horn for
horizontal or vertical mounting.
Pole mount or eye bolt installation points.
www.audiotelex.com.au
Distributed by Audio Telex Communications Pty Ltd
SYDNEY (NSW & ACT SALES) MELBOURNE (VIC & TAS SALES)
Phone: (02) 9647 1411 Phone: (03) 9890 7477
Email: nsw@audiotelex.com.au Email: vic@audiotelex.com.au
XR10
75mm
Model: XR10
Technical Specifications
System:
Two Way Full Range Speaker With Built-in Crossover
Drivers:
Frequency Response(-3dB):
Frequency Response(-10dB):
Sensitivity(dB/1M/1W):
Impedance:
Recommendatory Power(RMS/W):
Max Sound Level(dB/1M):
Dispersion(HxV) Rotatable:
Harmonic Distortion:
Connectors:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/pcs):
BRISBANE (QLD SALES) ADELAIDE (SA & NT SALES)
Phone: (07) 3852 1312 Phone: (08) 8352 4444
Email: qld@audiotelex.com.au Email: sa@audiotelex.com.au
XR10
10" x 1
1x 34mm Driver
55Hz-18KHz
50Hz-20KHz
95 dB
8 Ohm
250 W
119dB
0
90 x60
2xNL4
321X321X464mm
375X355X535mm
10Kg
12.0Kg
PERTH (WA SALES) AUCKLAND (NZ SALES)
Phone: (08) 9228 4222 Phone: (09) 415 9426
Email: wa@audiotelex.com.au Email: audiotlx@nznet.gen.nz
ABN 78001345482
0
1%
Incorporated in NSW
