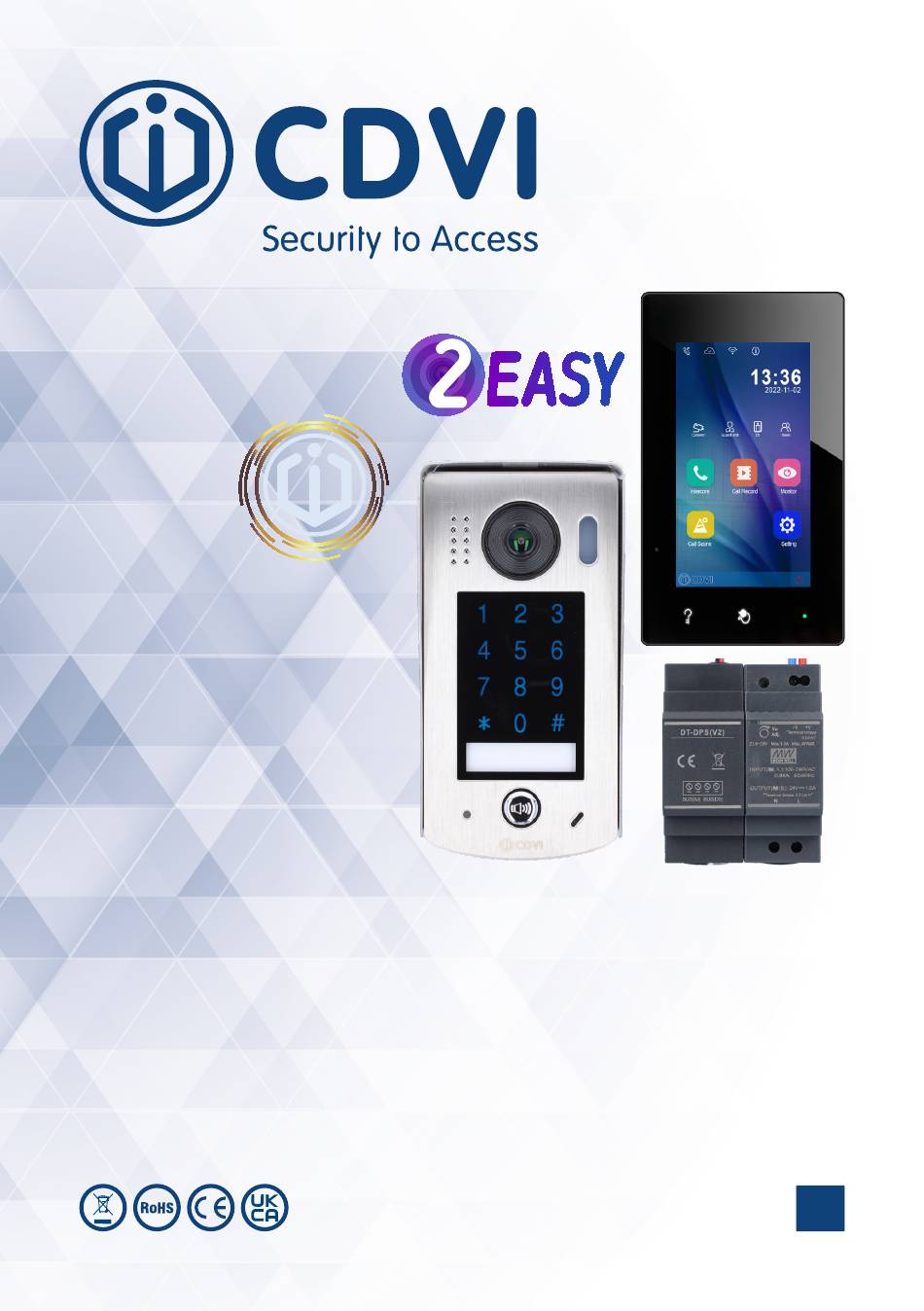

- Page 1 YEAR WARRANTY CDV-4796KPA-DXB, CDV-4796KPA-DXW 2EASY 2-Wire, 1-Way Kit, Black or White Monitor...
-
Page 2: Table Of Contents
• This manual is limited in information. This manual gives basic installation requirements of the CDV-4797KPA-DX kit. For advanced features, see the devices’ full manuals on the CDVI UK website: www.cdvi.co.uk. • For WiFi setup of the kit, see the CDV-470DX manual. -
Page 3: Package Contents
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor 2] PACKAGE CONTENTS SD card Door Internal Power/ Bus 145mm DIN Kit Manual Station Monitor Combiner Rail 1 2 3 4 5 6 3] CDV-97KP DOOR STATION - PARTS AND FUNCTIONS [1] Camera lens [2] Camera LED [3] Speaker... -
Page 4: Installation
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor Installation The recommended installation height for the door station is 145-160cm. Name label placement Use a screwdriver to remove the screw holding the panel in place. Slide out the name label as shown. -
Page 5: Cdv-Pc7 Power/Bus Combiner - Parts And Functions
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor 4] CDV-PC7 POWER/BUS COMBINER - PARTS AND FUNCTIONS The CDV-PC7 is a power/bus combiner unit, which is designed for the CDV 2EASY 2-Wire system to supply power for the external station, internal monitor and other accessories on the bus. -
Page 6: Cdv-470Dx Monitor - Parts And Functions

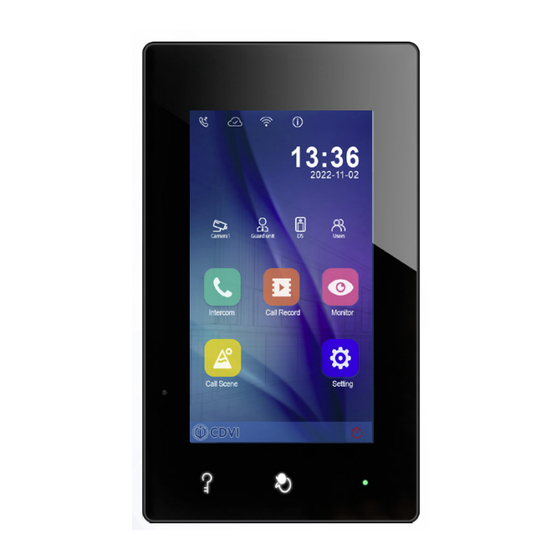

CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor 5] CDV-470DX MONITOR - PARTS AND FUNCTIONS Terminal Description MicroSD [10] [11] Item Description Digital LCD touch screen next page for details. Display the visitor's image. Power/ Do Not Disturb Shows the power status of the system. Shows the Do Not Disturb status. -
Page 7: Installation
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor Installation Mounting box The unit Mounting screw x 2(included) 2 wire cable Mounting bracket The installation height is suggested as 145 to 160cm. 1. Use screws to fasten the mounting bracket to the wall with a standard single gang flush lightswitch box. - Page 8 Use to change the indoor monitor’s corresponding items. settings. Intercom icon Logo Allows you to call other indoor Shows the company brand CDVI by monitors. default. Call Record icon Close icon Allows you to view the call record. Touch to turn off the screen.
-
Page 9: Settings
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor Settings Unlock Mode & Timing 1. From the main menu, tap the Settings icon. - A list of available settings is displayed. 2. Select Installer, and then tap Parameters. 3. Enter 66666666. Parameters Installer 66666666... -
Page 10: Address Setup
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor Address Set-up 1. From the main menu, tap the Settings icon. - A list of available settings is displayed. 2. Select Installer, and then tap Call_Nbr. 3. Input the room number. Call_Nbr Installer Installer... -
Page 11: System Wiring And Connections
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor 6] SYSTEM WIRING AND CONNECTIONS Single Door Station System Wiring 100-240VAC Multi Door Stations System Wiring (4 max*) Camera #4 Camera #3 Camera #2 Camera #1 (Device Address: 3) (Device Address: 2) (Device Address: 1) (Device Address: 0) 100-240VAC... -
Page 12: Multi Monitors System Wiring
• For the last monitor connected to the system, DIP6 should be set to 100-240VAC *IMPORTANT: Subject to cable type. Please see cable distance chart page 15. For further help, call CDVI Technical Support on +44 (0) 1628 531300 or visit the CDVI Support Centre. - Page 13 CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor Star topology wiring with CDV-DBC4A1 100-240VAC The system can be extended by up to 3 slave monitors for each monitor. We recommend you use the CDVI distributor CDV-DBC4A for the extension.
-
Page 14: Electric Lock Connections
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor Electric Lock Connections Door lock controlled with internal power Notes: This mode only supports fail secure (power on to unlock) Strikes. The door lock is limited to 12V, and holding current must be less than 250mA. The door lock control is not timed from the exit button (EB). -
Page 15: Cable Requirements
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor Cable Requirements The maximum distance of the wiring is limited in the 2EASY system. Using different cables may also affect the maximum distance which the system can reach. Two to four monitors from outputs A, B, C & D of DBC4A 100-240VAC Recommended cable: 16AWG, Belden 8471... -
Page 16: Precautions
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor 7] PRECAUTIONS • Please clean the unit with soft cotton cloth, don’t use any wet wipes, cloth, or chemical cleaning agent. If necessary, use a little pure water or diluted soapy water to clean the dust. •... -
Page 17: Product Specifications
CDV-4796KPA-DXB, 2EASY 2-Wire, 1-Way Kit, Black or White Monitor 8] PRODUCT SPECIFICATIONS CDV-96KP Door Station Feature Description Power Supply 24 Vdc Power Consumption Standby: 15mA Working: 105mA Camera Color CMOS, 2.0 mega pixel 1/2.7’’ fisheye camera, 170° wide angle Lock Power Supply 12 Vdc, 280mA (internal power) Relay Circuits 2 (the second lock requires external device support) - Page 18 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI NORDICS [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
