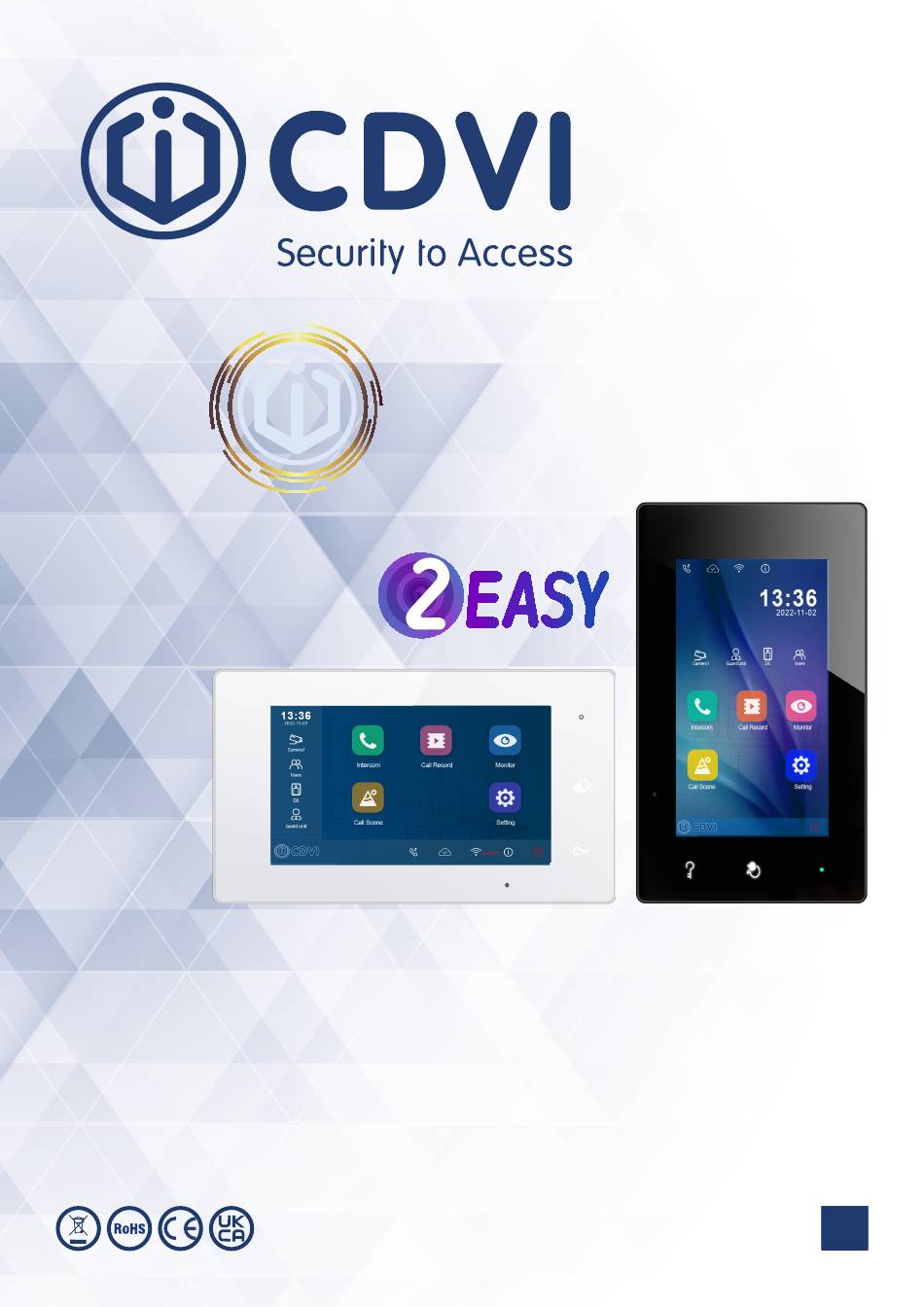

- Page 1 YEAR WARRANTY CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting...
-
Page 2: Table Of Contents
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 1] CONTENTS Title Page 2] PARTS AND FUNCTIONS 3] MOUNTING 4] MAIN MENU 5] ANSWERING A CALL 6] MONITORING 7] CALLING FUNCTIONS 8] VIEW CALL RECORDS 9] DO NOT DISTURB FUNCTION... -
Page 3: Parts And Functions
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 2] PARTS AND FUNCTIONS MicroSD [10] [11] Item Description Digital LCD touch screen next page for details. Display the visitor's image. Power/ Do not Disturb Shows the power status of the system. -
Page 4: Mounting
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 3] MOUNTING Mounting box The unit Mounting screw x 2(included) 2 wire cable Mounting bracket The installation height is suggested as 145~160cm. 1. Use screws to fasten the mounting bracket to the wall with standard single gang flush lightswitch box. -
Page 5: Status Bar Icons
Use to change the indoor monitor’s corresponding items. settings. Intercom icon Logo Allows you to call other indoor monitors. Shows the company brand CDVI by default. Call Record icon Close icon Allows you to view the call record. Touch to turn off the screen. - Page 6 CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting How to switch viewing orientation Follow the steps below to switch the menu from horizontal viewing to vertical viewing: Input installer PWD Input installer PWD Input installer PWD 66666666...
-
Page 7: Pip View
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting PIP View Note: This function requires the system to access the cameras or set the camera proxy settings. The picture-in-picture (PIP) display allows the user to see two images from different sources at the same time during the call. -
Page 8: Answering A Call
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 5] ANSWERING A CALL When you receive a call, the indoor station rings. The image is displayed on the screen. 1. Touch the icon or press the button. TALK/MON •... -
Page 9: Calling Functions
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting Functions available during monitoring: • Door release. • Manual recording. Note: Tap the monitor’s quick actions to monitor a corresponding camera directly (if the monitor quick actions is set up in the shortcut windows). -
Page 10: View Call Records
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 8] VIEW CALL RECORDS The monitor records information about calls you have answered, missed, and made, and saves it in the call record. Follow these steps to view the call record: 1. -
Page 11: Do Not Disturb Function
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 9] DO NOT DISTURB FUNCTION If you don't want to be disturbed, you can activate DND mode. 1. From the main menu, tap the Call Scene icon. 2. Select the desired option. -
Page 12: Settings
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 11] SETTINGS 1. From the main menu, tap the Settings icon. The settings list will be displayed. 2. Select the desired settings category. 3. Select the desired sub-setting. 4. Change the settings as desired. -
Page 13: General Settings
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting General settings This section contains the general settings and device information. General 01/02 Call Tune Date and time 1. From the main menu, tap the Setting icon. General Language... - Page 14 CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting Monitor time The monitor time is set to 30s as default. You can update the time if needed and choose between the following options: 30s, 60s, 90s, 120s, 150s, 180s, 210s, 240s, 270s, 300s.
-
Page 15: Address Set Up
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting Screen on divert When the monitors are set to Divert call always mode in default mode, the monitors don’t display any images when receiving a call. This setting can be changed. The monitors can turn on at the same time when the call is being diverted. -
Page 16: Upgrade
2. SD card Copy upgrade firmware before upgrade. Contact CDVI Technical Support to obtain the code then select Download code and enter the given code when the device needs to be updated. Touch Check to load the upgrade information from the source. -
Page 17: Reboot, Back And Restore
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 14] REBOOT, BACKUP AND RESTORE Reboot You can reboot or auto-reboot your device as follows: Installer Installer Call Tune Call Tune Call_Nbr [05] Call_Nbr [05] General General Parameter Parameter... -
Page 18: Download & Setup Vdp Connect App
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 1. Touch to restore all settings on “SIP config” and create 2 SIP accounts: one for the DX monitor and one for the VDP Connect app. The server restores the two accounts’... -
Page 19: Surveillance Door Station Via Vdp Connect App
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 17] SURVEILLANCE DOOR STATION VIA VDP CONNECT APP On the VDP Connect app, press on the icon and wait for a few seconds. If the system has multiple door stations, you can switch to view the door station you want. - Page 20 CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting Add IPC manually: Add the IP camera manually. IPC Monitor IPC login List ..IPC IP address 192.168.243.10X Add By Search User name admin Add By Manual User PWD...
-
Page 21: Specifications
CDV-470DX 2-Wire WiFi Monitor, Black or White, Vertical or Horizontal Mounting 19] SPECIFICATIONS Feature Power supply 20-28Vdc Power consumption Standby: 1.7W Working: 8.2W Monitor screen 7-inch IPS full view angle digital color TFT Display resolutions 1024 x 600 pixels (R, G, B) Operating temperature - 10 to 50°C... - Page 22 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI NORDIC [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
