Summary of Contents for CDVI 2EASY CDV-470IP

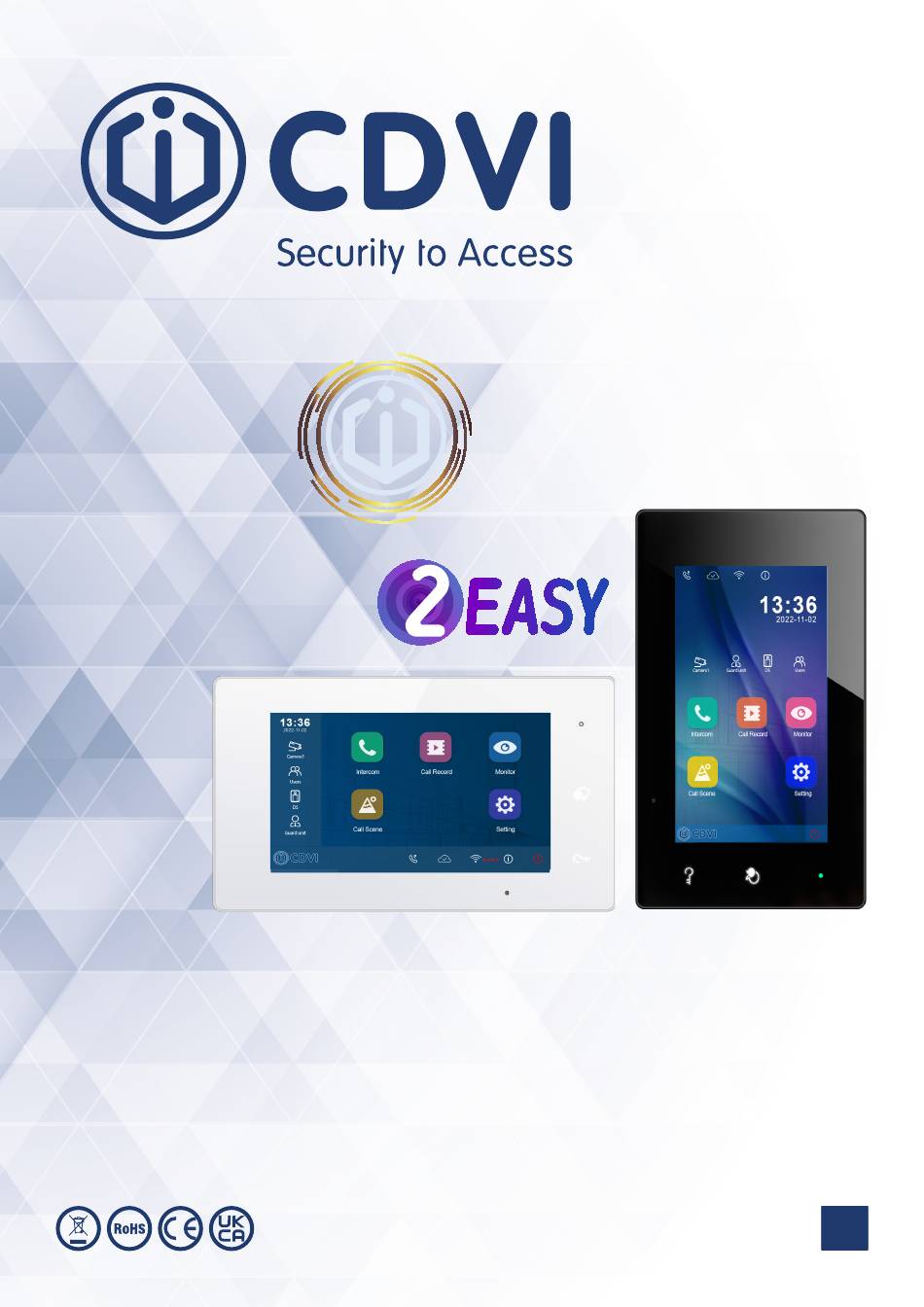

- Page 1 YEAR WARRANTY CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting...
-
Page 2: Table Of Contents
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 1] CONTENTS Title Page 2] PARTS AND FUNCTIONS 3] MOUNTING 4] MAIN MENU 5] ANSWERING A CALL 6] MONITORING 7] CALLING FUNCTIONS 8] VIEW CALL RECORDS 9] DO NOT DISTURB FUNCTION 10] DIVERT CALL 11] SETTINGS 12] ADDRESS SET UP... -
Page 3: Parts And Functions

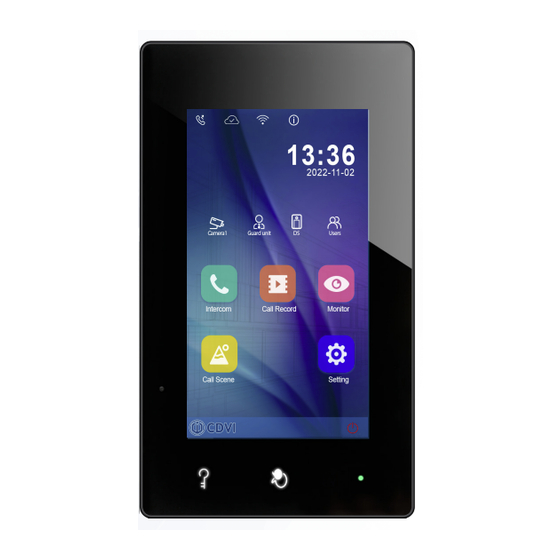

CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 2] PARTS AND FUNCTIONS [10] Item Description LCD screen Displays the visitor's image. Unlock button Press to release the door. Talk/Mon button Touch to communicate hands-free with visitors. Touch to view through the door station camera in standby mode. Power/ Do Not Disturb Shows the power status of the system. -
Page 4: Mounting
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 3] MOUNTING Mounting box The unit Mounting screw x 2(included) Cat-5e/Cat-6 cable Mounting bracket The recommended installation height is 145-160cm. 1. Use screws to fasten the mounting bracket to the wall with a standard single gang flush lightswitch box. -
Page 5: Status Bar Icons
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting Status bar Monitor icon Displays icons that indicate the indoor Allows you to monitor the door stations monitor’s status (see Status bar icons and cameras. below). About icon Call Scene icon Allows you to view information about Allows you to activate the No Disturb the device. - Page 6 CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting How to switch viewing orientation Follow the steps below to switch the menu from horizontal viewing to vertical viewing: Input installer PWD Input installer PWD Input installer PWD 66666666 66666666 66666666 Input installer PWD...
-
Page 7: Pip View
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting PIP View Note: This function requires the system to access the cameras or set the camera proxy settings. The picture-in-picture (PIP) display allows the user to see two images from different sources at the same time during the call. -
Page 8: Answering A Call
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 5] ANSWERING A CALL When you receive a call, the indoor station rings. The image is displayed on the screen. 1. Touch the icon or press the button. TALK/MON •... -
Page 9: Calling Functions
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting Functions available during monitoring: • Door release. • Manual recording. Note: Tap the monitor’s quick actions to monitor a corresponding camera directly (if the monitor quick actions is set up in the shortcut windows). 7] CALLING FUNCTIONS You can call other residences, common area phones, facility staff offices, and even other rooms in your own residence. -
Page 10: View Call Records
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 8] VIEW CALL RECORDS The monitor records information about calls you have answered, missed, and made, and saves it in the call record. Follow these steps to view the call record: 1. -
Page 11: Do Not Disturb Function
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 9] DO NOT DISTURB FUNCTION If you don't want to be disturbed, you can activate DND mode. 1. From the main menu, tap the Call Scene icon. 2. Select the desired option. -
Page 12: Settings
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 11] SETTINGS 1. From the main menu, tap the Settings icon. The settings list will be displayed. 2. Select the desired settings category. 3. Select the desired sub-setting. 4. Change the settings as desired. 5. -
Page 13: Date And Time Settings
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting Date and time settings 1. From the main menu, tap the Settings icon. - A list of settings is displayed. 2. Select General, and then tap Date and time. - The date and time interface is displayed. -
Page 14: Address Set Up
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 12] ADDRESS SET UP 1. From the main menu, tap the Settings icon. - A list of available settings is displayed. 2. Select Installer, and then tap Call_Nbr. Input the password if required (66666666 by default). Input installer PWD Installer Call Tune... -
Page 15: Upgrade
3. SD card Copy upgrade firmware before upgrade. Contact CDVI Technical Support to obtain the code then select Download code and enter the given code when the device needs to be updated. Touch Check to load the upgrade information from the source. -
Page 16: How To Add An Ip Camera To An Ip Monitor
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting Important: Aside from firmware upgrades, the device will upgrade automatically. Do not power off the device during upgrades. 14] HOW TO ADD AN IP CAMERA TO AN IP MONITOR Preparation Select the appropriate IP camera to access the system on demand and set parameters for the IP camera. -
Page 17: Download & Set Up Vdp Connect App
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting select: ROOM1 “WLAN IPC camera”to add select: select: “IPC camera”to add “WLAN IPC camera”to add Cloud Cloud DHCP Router DHCP Router select: “IPC camera”to add Wireless connection 2. Add camera by search or manually. 3. -
Page 18: Viewing Door Station Via Vdp Connect App
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 3. On the VDP Connect app touch the 4. After logging into the SIP account ‘Scan’ symbol as shown below. Scan the onthe VDP Connect app, check the status QR code shown on the monitor. -
Page 19: Specifications
CDV-470IP IP WiFi Monitor, Black or White, Vertical or Horizontal Mounting 17] SPECIFICATIONS Feature Description Power Source PoE (IEEE 802.3af Class 0) LAN Interface 10 BASE-T / 100 BASE-TX Ethernet (RJ-45) Monitor Screen 7-inch digital colour TFT Display Resolution 1024 x 600 Wire Type Cat-5e or Cat-6 Wiring Distance... - Page 20 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI NORDIC [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
