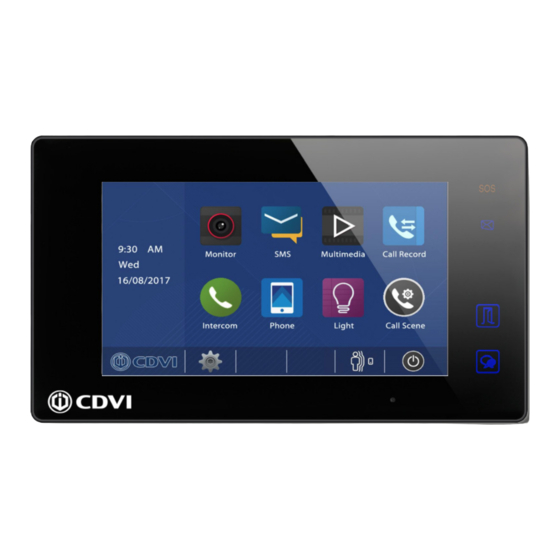

- Page 1 YEAR WARRANTY CDV-47 2EASY 2-Wire TFT Monitor, Black or White...
-
Page 2: Table Of Contents
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 1] CONTENTS Title Page 2] PARTS AND FUNCTIONS 3] MOUNTING 4] MAIN MENU 5] ANSWERING A CALL 6] PANVIEW & ZOOM 7] DOOR RELEASE 8] CALL ANOTHER ROOM OR APARTMENT (INTERCOM) 9] MONITORING 10] RECORDING 11] VIEW CALL RECORDS 12] LEAVE &... -
Page 3: Parts And Functions
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 2] PARTS AND FUNCTIONS SD card [10] 1 2 3 4 5 6 Item Description Digital LCD touch screen next page for details, Display the visitors’ image Emergency button Touch & hold for 3s to send SOS message to mobile phone. The function is supported by the GSM unit. -
Page 4: Mounting
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 3] MOUNTING Mounting box (size:86x86mm) The unit Mounting screw x 2(included) 2 wire cable Mounting bracket The installation height is suggested as 145~160cm. 1. Use screws to fasten the mounting bracket to the wall with standard single gang flush lightswitch box. -
Page 5: Answering A Call
CDV-47 2EASY 2-Wire TFT Monitor, Black or White While talking to a door station Shows status of talking, Displays which door unlocking etc. station is calling. Flashed while recording. Displays talking 00:10 DS-1 time. 5-direction pad button, zoom, pan & tilt the picture. - Page 6 CDV-47 2EASY 2-Wire TFT Monitor, Black or White 1. Receiving a call while talking with a door station • A call from different door station is not possible as the system is busy. • End current call to answer the new call-in. 2.
- Page 7 CDV-47 2EASY 2-Wire TFT Monitor, Black or White Monitoring cameras while being called/talking It’s possible to select cameras to monitor while being called. Max. 16 cameras can be selected to monitor. 4 cameras is default the default setting. Follow these steps: 00:10 DS-1 00:10...
-
Page 8: Panview & Zoom
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 6] PANVIEW & ZOOM Note: this function is only supported by a fisheye camera door station (170°- camera lens) and allows the user to to adjust the display mode. If detailed viewing is desired, of visitors is required, move to the desired position by touching on the screen to... -
Page 9: Monitoring
CDV-47 2EASY 2-Wire TFT Monitor, Black or White Calling monitors in the same room 1. Touch [Inner Broadcast] icon on one of the monitors, all other monitors set to the same address will allow an open audio broadcast without answering the call. Note that all other monitors will not turn on the screen. - Page 10 CDV-47 2EASY 2-Wire TFT Monitor, Black or White Monitoring door stations/cameras DS1~4 and CAM1~4 can be selected to monitor individually if the system installs multi door stations/cameras.See the following steps: 00:10 DS-1 00:10 DS-1 Monitor Select DS-1 DS-2 DS-3 DS-4 CAM-1 CAM-2 •...
-
Page 11: Recording
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 10] RECORDING Video and still images can be recorded automatically or manually. Video will only be recorded if a Micro SD card is installed. Blinks Automatic recording 00:10 DS-1 • Recording starts 3 seconds after receiving a call. -
Page 12: View Call Records
CDV-47 2EASY 2-Wire TFT Monitor, Black or White View recordings The recorded images/videos can be played back on the monitor: • On main menu page, touch [Multimedia]->[Graphics Playback] icon, the most recent recordings are displayed (If a micro SD card is inserted, playback will be video.Otherwise, playback will be images). -
Page 13: Leave & View Messages
CDV-47 2EASY 2-Wire TFT Monitor, Black or White Call Record Call Record 01/05 01/05 Playback caller's image When touch Jim Roberts 06-23 15:22 Calo.Liu 06-23 15:22 Calo.Liu the item," >> Delete the selected recording Edward Collins 06-18 20:54 Smith 06-18 20:54 Smith "... - Page 14 CDV-47 2EASY 2-Wire TFT Monitor, Black or White View visitor messages All visitor messages from door stations will be recorded and can be reviewed afterwards. To support this function, the Call Scenario mode should be set to “Leave a Message,Immediately” or “Leave a Message,If No Answer”. Please refer to the above in detail.
-
Page 15: Do Not Disturb Function
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 13] DO NOT DISTURB FUNCTION If you don't want to be disturbed,for example,at night. Activating the mute function is necessary for you. Follow the steps: 00:10 DS-1 Call Scenario Normal Do Not Disturb Leave a Message,Immediately Leave a Message,If No Answer Divert, Simultaneously... -
Page 16: Sms Function
CDV-47 2EASY 2-Wire TFT Monitor, Black or White Available functions during transferring at this mode: • Pantilt & zoom • Adjusting images(image scale/bright/color/contrast) • Door release • Volume control • Automatic recording • Manual recording 2. Divert, If No Answer: If the call is not answered within 30s of receiving a call from a door station it will be diverted the phone. -
Page 17: Staircase Light Function
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 3. Writing a message: On main menu page, touch [SMS]->[Write a SMS] icon, and then select the sending address. Write a message by touching the on-screen keypad. Up to 78 characters can be entered per message. -
Page 18: Motion Detect Function
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 17] MOTION DETECT FUNCTION This function is available only if the setting of Motion Detect Enable is selected. This function will only operate when a door station with motion detection is installed. 00:10 DS-1 •... -
Page 19: Settings
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 18] SETTINGS Date & time settings You can correct the current date and time at any time by following the procedure below. 1.On main menu page, touch settings icon ->[Date&Time]. Or directly touch current date and time area in shortcut to enter Date&Time setting page. -
Page 20: Sd Card Settings
CDV-47 2EASY 2-Wire TFT Monitor, Black or White Ring volume settings The day/night ring volume can be set individually. The setting range is 0~9. • On main menu page, touch settings icon ->[Sounds]. • Select the Volume setting item, touch icon to adjust the levels. -
Page 21: Naming Door Station & Camera
CDV-47 2EASY 2-Wire TFT Monitor, Black or White When a ‘beep beep/ can heard along with a a blue screen display, formatting is complete. It may take some time until formatting has completed. Copying recordings to SD card Recordings (videos/images) stored in the built-in memory can be copired to a SD card. •... -
Page 22: Monitor & Intercom Functions
CDV-47 2EASY 2-Wire TFT Monitor, Black or White Current renamed door station Current name displayed here. Keypad type abc- Alphabet keypad DOOR1 RENAME 123-Number keypad DS1_ Edit box Delete the last character Save the setting Switch the keypad between alphabet and numbers Space key Exit current page... -
Page 23: Screen Display Language
CDV-47 2EASY 2-Wire TFT Monitor, Black or White Intercom function enabled/disabled You can enable or disable the intercom function for this monitor. 1. On main menu page, touch settings icon ->[More...]. 2. Select Intercom Enable option to enable this function. Default Setting = ‘Intercom Disable’. -
Page 24: Installer Setup & System Configuration
CDV-47 2EASY 2-Wire TFT Monitor, Black or White About Local Address 00.00 Video Standard AUTO System Verson 00.01.00 Display Driver Font Logo icon • Touch [Logo] icon to enter About page in shortcut. • If restoring to default is completed, a beep will be heard. 19] INSTALLER SETUP &... -
Page 25: Address Settings Page
CDV-47 2EASY 2-Wire TFT Monitor, Black or White Code Description Code Description 2412 Reset to Default Setting 8018-8020 Video Display Standard 2499 Format Memory 8040-8050 LED Color Setting For Calling 2810 MCU Code Update 8051-8055 LED Color Setting For Standby 2811 TFT,UI Code Update 8300-8301... - Page 26 CDV-47 2EASY 2-Wire TFT Monitor, Black or White Slave monitor panel on In default mode, when receiving a call, the master and slave monitors will ring at the same time, only the master monitor will display the image; the slave monitors will not. The settings can be changed to allow the master monitor and all the slave monitors to show the image at the same time when being called.
- Page 27 CDV-47 2EASY 2-Wire TFT Monitor, Black or White Manual Input Address The address can also be entered manually. A total of 32 numbers can be set, from 00~31. When multiple monitors are installed in one apartment, the monitors should be set to thsame user code and the master/slave mode should be set on the monitor.
-
Page 28: Download & Setup Vdp Connect App
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 20] DOWNLOAD & SETUP VDP CONNECT APP 2. Permit “VDP Connect” with permissons, 1. Scan the following QR code and download VDP Connect app, or search on DX monitor, tap “SIP Server” icon on main menu, and keep in “SIP config”, “VDP Connect”... -
Page 29: Specifications
CDV-47 2EASY 2-Wire TFT Monitor, Black or White 22] SPECIFICATIONS Feature Power supply DC 20~28V Power consumption Standby 0.3W; Working 7W Monitor screen 7 Inch digital color TFT Display Resolutions 800*3(R, G, B) x 480 pixels Video signal 1Vp-p, 75Ω, CCIR standard Wiring 2 wires, non-polarity Dimensions... - Page 30 +39 (0) 321 90 573 www.cdvi.it CDVI MAROC +212 (0) 5 22 48 09 40 www.cdvi.ma CDVI SWEDEN [SWEDEN - DENMARK - NORWAY - FINLAND] +46 (0) 31 760 19 30 www.cdvi.se CDVI UK [UNITED KINGDOM - IRELAND] +44 (0) 1628 531300 www.cdvi.co.uk...
