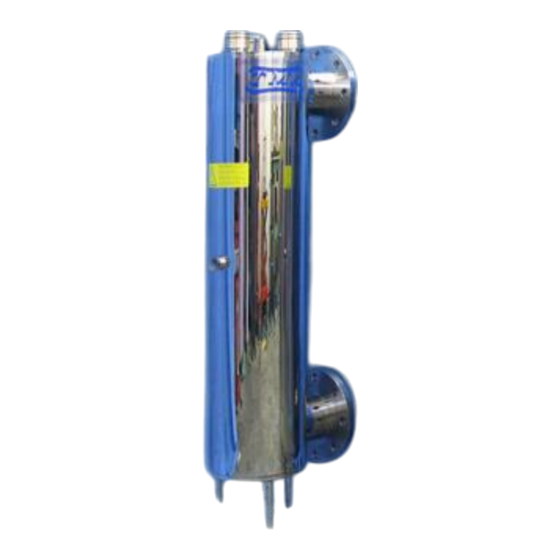

- Page 1 WATER UV STERILIZERS WATER STERILIZERS TYPE: TM0; TM1; TM2; TM3; TM4; TM5; TM6; TM8; TM10; TM12; TM14 MANUAL Patent No. 204935 - December 2022 -...
- Page 2 TM0-TM14 TABLE OF CONTENTS 1. INTRODUCTION ..........................5 2. APPLICATIONS ..........................5 3. TECHNICAL SPECIFICATIONS ......................6 4. DESCRIPTION ..........................8 4.1. LEADING OUT THE ALARM SIGNAL IN TM0,TM1 MODEL ............8 4.2. CONNECTION OF SOLENOID VALVE IN TM0,TM1 MODEL ............. 8 4.3.
- Page 3 Noncompliance with the precautions listed hereon might expose personnel to serious bodily harm (damage to human skin from UV radiation), or damage to the device alone. The manufacturer, TMA, is not responsible for damage to the device caused by improper installation, maintenance and operation.
- Page 4 Thank you and congratulations on your purchase of TMA manufactured UV sterilization product. Sterilizers made by TMA are made from highest quality stainless steel. The thickness of the chamber wall guarantees high factor of safety in operation. All the raw materials and components are of best quality and were processed or manufactured in the EU countries.
- Page 5 TM0-TM14 INTRODUCTION The device delivered to you is disassembled and shall be protected from severe shocks and drops, as the quartz sleeve and lamps are brittle and fragile. The sterilizer shall be exclusively transported in horizontal position. The manufacturer is not responsible for damage arising from the conditions of transport.
- Page 6 TM0-TM14 3.TECHNICAL SPECIFICATIONS www.tma.pl PRODUCENT WATER STERILIZERS- SERIES TM e-mail: biuro@tma.pl Białostoczek 26; gm. Zabłudów, Model: TM0; TM1; TM2; TM3; TM4; TM5 NIP: 542-000-84-13 15-592 Białystok WYLOT WLOT TECHNICAL SPECIFICATIONS: Model Power Supply ~220V-240V 50-60Hz Safety Class IP 66 Chamber Material...
- Page 7 PRODUCENT: www.tma.pl TM0-TM14 WATER STERILIZERS- SERIES TM TMA Białostoczek 26; e-mail: biuro@tma.pl gm. Zabłudów, Model: TM6; TM8; TM10; TM12; TM14 NIP: 542-000-84-13 15-592 Białystok ELECTRICAL ENCLOSURE WORKING HOURS COUNTER SYSTEM INDICATOR LAMP ALARM INDICATOR LIGHTS /RED/ POWER INDICATOR LIGHT /GREEN/...
- Page 8 TM0-TM14 Standard features: Sterilizer chamber made from stainless steel ( AISI 316), Electrical enclosure, with control system, Set of quartz sleeves Set of UV lamps Set of O-rings + backup set of O-rings Terminals for connecting electromagnetic valve shutting off flow in case of power or lamp failure Optional Accessories: UV intensity sensor...
- Page 9 TM0-TM14 REMOTE-CONTROLLED ON/OFF SWITCH IN TM0,TM1 MODEL 4.3. After removing the bridge, it is possible to connect remote-controlled switch to the ON/OFF terminals /caution: voltage 230V!/. Contacts closed - sterilizer on Contacts open - sterilizer off ELECTRICAL ENCLOSURE POWER LINE ELECTRONIC PLATE IN AM1 MODELS...
- Page 10 TM0-TM14 REMOTE-CONTROLLED ON/OFF SWITCH IN TM2-TM14 MODELS 4.6. After removing the bridge, it is possible to connect remote-controlled switch to the terminals 3 & 4 /caution: voltage 230V!, I=0,2A/. Contacts closed - sterilizer on Contacts open - sterilizer off ...
- Page 11 TM0-TM14 INSTRUCTION FOR INSTALLATION AND OPERATION CHAMBER ASSEMBLY 5.1. Vertical Horizontal Podpory Forbidden a) Device assembles in either vertical or horizontal position. Temperature range for installation is from 0.1 to 35 C. DO NOT ALLOW THE CHAMBER TO FREEZE. b) Correct assembly shall prevent the creation of air gap in the chamber. c) By-pass installation is recommended.
- Page 12 TM0-TM14 QUARTZ SLEEVES ASSEMBLY 5.2. Slide in gently through the nipple the quartz QUARTZ SLEEVE sleeves; continue through sleeve guides onto nests at the bottom. Place the o-ring over quartz sleeve and against the lip of the nipple. Next place the washer over WARNING!! QUARTZ SLEEVE IS WERY the o-ring, screw the muff onto this assembly...
- Page 13 TM0-TM14 Tightest seal around quartz sleeve shall be PROVIDET TOOL created with largest possible O-RING ON MUFF deformation of o-ring. MUFF O-ring is visible through WASHER sleeve. Tighten O-RING O-RING BEFORE MUFF TIGHTENED muff with the provided /SMALL DEFORMATION OF O-RING/ QUARTZ SLEEVE tool, as seen.
- Page 14 TM0-TM14 STRAIN RELIEF STRAIN RELIEF LAMP HOOD LAMP HOOD SOCKET PLACE LAMP HOOD OVER MUFF PLACE SOCKET ON LAMP END WITH FOUR PINS CENTERING RING SOCKET CENTERING RING INSERT UV LAMP UV LAMP UV LAMP INTO QUARTZ SLEEVE MUFF O-RING ON MUFF WASHER O-RING QUARTZ SLEEVE...
- Page 15 TM0-TM14 Solenoid shut-off valve serves the purpose of preventing unsterilized fluid entering the installation downstream of the sterilizer in the case of power interruption or lamp failure. MOUNTING TEMPERATURE SENSOR (MODELS TM3-TM14) 5.4. a) Choose temperature sensor cord (ended with strain relief PG11). ELECTRICAL b) Loosen the cable gland ENCLOSURE...
- Page 16 TM0-TM14 DESCRIPTION OF ALARMS IN ELECTRICAL CABINET / TM0,TM1 / Display indications Cause Solving the problem HOLD 3 s. PRZYTRZYMAĆ 3 s. - 7 days left to the end of life time of UV lamp - Blinking digit 7 on the display. - change UV lamp after 7 Hold left button more than 3 - An intermittent sound signal...
- Page 17 TM0-TM14 RESSETING COUNTER IN ALARM SYSTEM / TM0,TM1/ COUNTER IN THE ALARM SYSTEM SHOULD BE RESSETED EACH TIME THE UV LAMP IS REPLACED a) Disconnect from power supply /neutral and life/. b) Replace UV Lamp – see p. 9. INSTRUCTION FOR REPLACEMENT OF UV LAMP c) Connect device to Power supply (power switch should be turned off) d) Hold the right button under display..
- Page 18 TM0-TM14 MAINTENANCE UV radiation is harmful to eyes and skin. It is forbidden to directly observe UV lamp (radiator) during operation. It is recommended to check cleanness of the quartz sleeve whenever the UV lamp is replaced. If any sediment is noticed on the surface of the quartz sleeve, it is recommended to immediately clean the sleeve.
- Page 19 TM0-TM14 Using faulty or post end of life UV lamps / operating time above their durability period / can lead to damage to electronic ballast located In the electrical enclosure. When replacing the UV lamp, protective gloves should be worn. Excessive humidity and water inside the quartz sleeve can cause damage to the power supply of the UV lamp.
- Page 20 TM0-TM14 INSTRUCTION FOR REPLACEMENT OF UV LAMP (GRAPHICAL INSTRUCTIONS AT THE END) In order to replace the UV lamp one shall: a) Disconnect from power supply /neutral and life/, Replacing the radiator does not require shutting off the water flow through the chamber. b) Put on protective gloves, preferably made of cotton, c) Take off plastic hood, d) Slide out the UV lamp from the quartz sleeve,...
- Page 21 TM0-TM14 TROUBLE SHOOTING Problem Cause Action Burned out UV Lamp Muff not tightened sufficiently. Take quartz sleeve out, dry interior, Water inside the quartz Worn out o-ring. change o-ring, and assemble sleeve - . short circuit – open back. Tighten muff. If device does circuit on circuit breaker not work –...
- Page 22 TM0-TM14 DIAGRAM - DIMENTIONS ULTRAVIOLET WATER STERILIZER TM0-TM14 DWG# TM0-TM14 - GENERAL DIMENSIONS TITLE ELECTRICAL ENCLOSURE WORKING HOURS COUNTER SYSTEM INDICATOR LAMP ALARM INDICATOR LIGHTS /RED/ POWER INDICATOR LIGHT /GREEN/ POWER SWITCH SOLENOID VALVE CORD POWER CORD UV LAMP CORDS MODEL AM10 DIMENSIONS MODEL...
- Page 23 TM0-TM14 DIAGRAM – SPARE PARTS LIST ULTRAVIOLET WATER STERILIZER TM0-TM14 DWG# STERILIZER ORIENTATION DIAGRAM TITLE MODEL TM1 TM0, PART SYMBOL TM10 TM12 TM14 STRAIN RELIEF 02.01 1 pcs 2 pcs 3 pcs 4 pcs 5 pcs 6 pcs 8 pcs 10 pcs 12 pcs 14 pcs...
- Page 24 TM0-TM14 HYGIENIC CERTIFICATE Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
- Page 25 TM0-TM14 DECLARATION OF CONFORMITY Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
- Page 26 TM0-TM14 GRAFICAL MOUNTING INSTRUCTION Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
- Page 27 TM0-TM14 Assemble of TM sterilizer Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
- Page 28 18. WARRANTY UV sterilizers are exclusively for treatment of water/liquids which content is known. The manufacturer of the UV sterilizers - the TMA company guarantees efficient operation of the equipment covered by this warranty card. In order to obtain warranty service during the warranty period it is essential to: ...
- Page 29 If during the warranty period the device is changed / repaired by persons not authorized by the manufacturer of the equipment - the TMA company If the unit is powered by voltage of character and value other than defined in the manual.
- Page 30 TM0-TM14 Warranty and post warranty repairs Receive date Type of failure and repair procedure End date of repair Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
