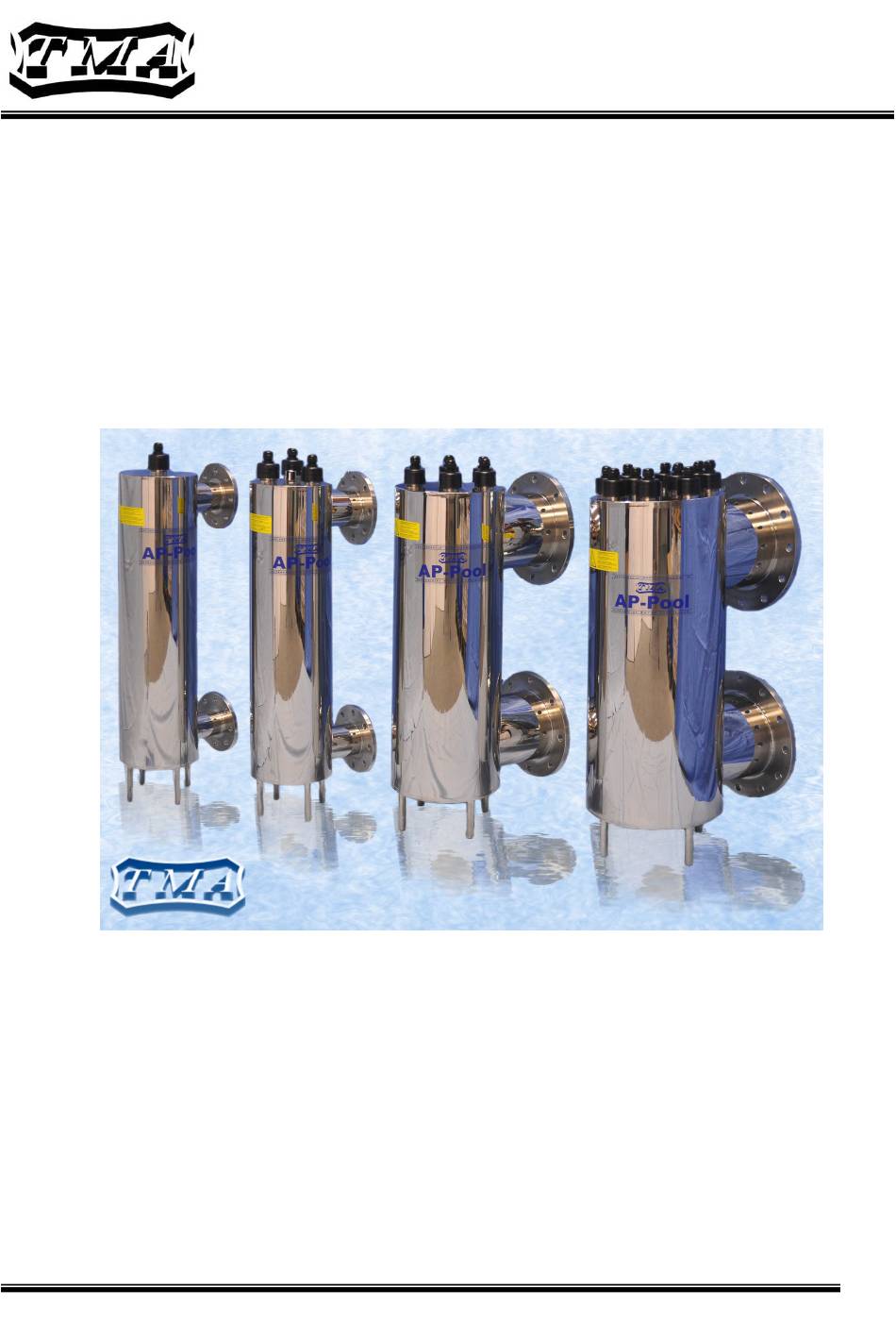

- Page 1 WATER UV STERILIZERS Made in Poland WATER UV STERILIZERS AP-POOL-N SERIES MANUAL Patent No. 204935 - October 2023 -...
-
Page 2: Table Of Contents
MANUAL – AP-POOL-N SERIES TABLE OF CONTENTS 1. GENERAL INFORMATION ....................... 4 2. APPLICATIONS ........................5 3. TECHNICAL SPECIFICATIONS ....................6 4. TECHNICAL DESCRIPTION ...................... 8 4.1. LEADING OUT THE ALARM SIGNAL IN AP-POOL-N 0,AP-POOL-N 1 MODEL ....8 4.2. CONNECTION OF SOLENOID VALVE IN AP-POOL-N 0,AP-POOL-N 1 MODEL ..... 9 4.3. -
Page 3: Read The Manual
TMA devices are equipped with lamps that emit UV radiation, light sources that contain mercury. The owners of waste lamps containing mercury are obliged to collect them separately for further re-use and disposal. -
Page 4: General Information
A breakthrough in the technique of UV disinfection of swimming pool water. Thank you and congratulations on your purchase of TMA manufactured UV sterilization product. Sterilizers made by TMA are made from highest quality stainless steel. The thickness of the chamber wall guarantees high factor of safety in operation. -
Page 5: Applications
MANUAL – AP-POOL-N SERIES 2. APPLICATIONS Disinfection with UV radiation is a reliable, simple and inexpensive method of sterilization. The use of this method is warranted every time microbiological risk exists. Following applications might be listed, among many others: - Water in swimming pools... -
Page 6: Technical Specifications
MANUAL – AP-POOL-N SERIES 3. TECHNICAL SPECIFICATIONS www.tma.pl PRODUCENT WATER STERILIZERS- SERIES AP-POOL-N e-mail: biuro@tma.pl Białostoczek 26; gm. Zabłudów, Model: AP-POOL-N 0 - AP-POOL-N 5 NIP: 542-000-84-13 15-592 Białystok WYLOT WLOT TECHNICAL SPECIFICATIONS: Model AP-POOL-N0 AP-POOL-N1 AP-POOL-N2 AP-POOL-N3 AP-POOL-N4 AP-POOL-N5... - Page 7 MANUAL – AP-POOL-N SERIES www.tma.pl PRODUCENT: WATER STERILIZERS- SERIES AP-POOL-N TMA Białostoczek 26; e-mail: biuro@tma.pl gm. Zabłudów, Model: AP-POOL-N 6 - AP-POOL-N 14 NIP: 542-000-84-13 15-592 Białystok WYLOT WLOT TECHNICAL SPECIFICATIONS: Model AP-POOL-N6 AP-POOL-N8 AP-POOL-N10 AP-POOL-N12 AP-POOL-N14 Power Supply ~220V-240V 50-60Hz...
-
Page 8: Technical Description
MANUAL – AP-POOL-N SERIES Standard features: · Sterilizer chamber made from stainless steel (AISI 316/316L), · Electrical enclosure, with control system, · Set of quartz sleeves · Set of UV lamps · Set of O-rings + backup set of O-rings ·... -
Page 9: Connection Of Solenoid Valve In Ap-Pool-N 0,Ap-Pool-N 1 Model
MANUAL – AP-POOL-N SERIES 4.2. CONNECTION OF SOLENOID VALVE IN AP-POOL-N 0,AP-POOL-N 1 MODEL There is possible to connect solenoid valve [max. 2A] to the terminals 1 & 2 /neutral/ on the electronic plate in electrical enclosure. The contacts 1 and 2 operate with a preset delay of about 2-3 minutes - this is the time to reach the full efficiency of the device. -
Page 10: Leading Out The Alarm Signal In Other Models
MANUAL – AP-POOL-N SERIES 4.4. LEADING OUT THE ALARM SIGNAL IN OTHER MODELS Connect the alarm signal wires to the terminals 1 & 2 /neutral/ on the terminal blocks in electrical enclosure /in the right bottom corner/. The contacts 1 and 2 operate with a preset delay of about 2-3 minutes - this is the time to reach the full efficiency of the device. -
Page 11: Instruction For Installation And Operation
MANUAL – AP-POOL-N SERIES ELECTRICAL ENCLOSURE POWER LINE REMOVE DOORS OF THE ELECTRICAL ENCLOSURE SOLENOID VALVE OUTLET CORD SOLENOID VALVE 12 3 4 5 6 7 8 PE UV STERILIZER To the terminals 1 & 2 /neutral/ on the terminal blocks in electrical enclosure/ solenoid valve type NZ (normally closed) max. - Page 12 MANUAL – AP-POOL-N SERIES Vertical Horizontal Supports Horizontal Supports Supports Horizontal Forbidden Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
-
Page 13: Localization Of Dispensers In The Installation
MANUAL – AP-POOL-N SERIES 5.2. LOCALIZATION OF DISPENSERS IN THE INSTALLATION Incorrect placement of dispensers in the installation!!! NaOCl DOSAGE H2SO4 DOSAGE CONCENTRA TED NaOCl LOCA TIONS OF DAMAGE CONCENTRA TED LOCA TIONS NaOCl OF DAMAGE O-RING STAINLESS STEEL FLANGE... - Page 14 MANUAL – AP-POOL-N SERIES Incorrect placement of dispensers in the installation!!! NaOCl DOSAGE H2SO4 DOSAGE CONCENTRA TED NaOCl LOCA TIONS OF DAMAGE CONCENTRA TED LOCA TIONS NaOCl OF DAMAGE O-RING STAINLESS STEEL FLANGE UV METER CONCENTRA TED NaOCl LOCA TIONS OF...
- Page 15 MANUAL – AP-POOL-N SERIES correct placement of dispensers in the installation NaOCl DOSAGE H2SO4 DOSAGE MIN. 150cm UV STERILIZER THE ONLY POSSIBLE DIRECTION OF FLO W FOR DOSED CHEM ICALS IF THE DISTANCE BETWEEN THE DISPENSERS IS LESS THAN 150 cm, THERE IS A RISK OF RELEASE OF CHLORIN E GAS INTO THE INSTALLATION AND IN TO THE BASKET.
-
Page 16: Quartz Sleeves Assembly
MANUAL – AP-POOL-N SERIES 5.3. QUARTZ SLEEVES ASSEMBLY (GRAFICAL MOUNTING INSTRUCTION AT THE END) QUARTZ SLEEVE Slide in gently through the nipple the quartz sleeves; continue through sleeve guides onto nests at the bottom. WARNING!! QUARTZ SLEEVE IS WERY BRITTLE AND FRAGILE. -
Page 17: Uv Lamps And Electrical Enclosure Assembly
MANUAL – AP-POOL-N SERIES !!! ATTENTION !!! Tightening the MUFF when installing the QUARTZ SLEEVE incorrectly may damage them. Place the O-ring over quartz sleeve and against the lip of the nipple. Next place the washer over the O-ring, screw the muff onto this assembly with the provided tool. - Page 18 MANUAL – AP-POOL-N SERIES STRAIN RELIEF STRAIN RELIEF LAMP HOOD LAMP HOOD PLACE LAMP HOOD SOCKET OVER MUFF PLACE SOCKET ON LAMP END WITH FOUR PINS CENTERING RING SOCKET CENTERING RING INSERT UV LAMP UV LAMP INTO QUARTZ UV LAMP...
-
Page 19: Mounting Temperature Sensor (Models Ap-Pool-N2- Ap-Pool-N14)
MANUAL – AP-POOL-N SERIES ATTENTION! In case of installing solenoid shut-off valve ( terminals 1 & 2) upstream /or downstream/ of the sterilizer, tripping alarm or power interruption causes immediate shutting off of fluid flow to the chamber of the sterilizer / Section 4.3-4.6/. Terminals 1 & 2 are neutral. -
Page 20: Description Of Alarms In Electrical Cabinet/Ap-Pool-N0,Ap-Pool-N1
MANUAL – AP-POOL-N SERIES 6. DESCRIPTION OF ALARMS IN ELECTRICAL CABINET/AP-POOL-N0 AP-POOL-N1 / Display indications Cause Solving the problem HOLD 3 s. PRZYTRZYMAĆ 3 s. - 7 days left to the end of life time of UV lamp - Blinking digit 7 on the... -
Page 21: Resseting Counter In Alarm System / Only Model Ap-Pool-N0, Ap-Pool-N1
MANUAL – AP-POOL-N SERIES 7. RESSETING COUNTER IN ALARM SYSTEM / ONLY MODEL AP-POOL-N0, AP-POOL-N1/ COUNTER IN THE ALARM SYSTEM SHOULD BE RESSETED EACH TIME THE UV LAMP IS REPLACED a) Disconnect from power supply /neutral and life/. b) Replace UV Lamp – see p. 9. INSTRUCTION FOR REPLACEMENT OF UV LAMP c) Connect device to Power supply (power switch should be turned off) d) Hold the right button under display. -
Page 22: Maintenance
MANUAL – AP-POOL-N SERIES 9. MAINTENANCE UV radiation is harmful to eyes and skin. It is forbidden to directly observe UV lamp (radiator) during operation. It is recommended to check cleanness of the quartz sleeve whenever the UV lamp is replaced. -
Page 23: Instruction For Replacement Of Uv Lamp
MANUAL – AP-POOL-N SERIES Using faulty or post end of life UV lamps / operating time above their durability period / can lead to damage to electronic ballast located in the electrical enclosure. When replacing the UV lamp, protective gloves should be worn. -
Page 24: Replacement And Clearing Of The Quartz Sleeve
MANUAL – AP-POOL-N SERIES e) Remove sockets from connectors of the UV Lamp, f) Remove old UV lamp from the quartz sleeve, g) Carefully place the new UV lamp in the sleeve, h) Reverse the remaining steps. ATTENTION! In model AP-POOL-N sterilizers UV lamps must have special centering ring at both ends. -
Page 25: Troubleshooting
MANUAL – AP-POOL-N SERIES 12. TROUBLESHOOTING Problem Cause Action Take quartz sleeve out, dry Burned out UV Lamp interior, change O-ring, and Muff not tightened Water inside the quartz assemble back. Tighten muff. If sufficiently. sleeve - . short circuit –... -
Page 26: Transport
MANUAL – AP-POOL-N SERIES e. Reboot the unit and check the UV radiator and alarm system (in this case, the alarm system should indicate failure of all sections that are not connected to the UV radiators). Wait 2-3 minutes for UV radiator to warm up. -
Page 27: Diagram - Dimensions
MANUAL – AP-POOL-N SERIES 14. DIAGRAM – DIMENSIONS UV WATER STERILIZER AP-POOL-N SERIES DWG# TITLE AP-POOL-N SERIES – GENERAL DIMENSIONS ELECTRICAL ENCLOSURE WORKING HOURS COUNTER SYSTEM INDICATOR LAMP ALARM INDICATOR LIGHTS /RED/ POWER INDICATOR LIGHT /GREEN/ POWER SWITCH SOLENOID VALVE CORD... -
Page 28: Diagram - Spare Parts List
MANUAL – AP-POOL-N SERIES 15. DIAGRAM – SPARE PARTS LIST UV WATER STERILIZER AP-POOL-N SERIES DWG# TITLE AP-POOL-N SERIES – SPARE PARTS LIST AP-POOL-N PART SYMBOL STRAIN RELIEF 02.01 1 pcs. 2 pcs. 3 pcs. 4 pcs. 5 pcs. 6 pcs. -
Page 29: Hygienic Certificate
MANUAL – AP-POOL-N SERIES 16. HYGIENIC CERTIFICATE Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413... -
Page 30: Declaration Of Conformity
MANUAL – AP-POOL-N SERIES 17. DECLARATION OF CONFORMITY Białostoczek, 2022-04-01 Deklaracja zgodności TMA/01/04/2022 Declaration of conformity Producent wyrobu / The manufactured of the product: Białostoczek 26, gm. Zabłudów 15-592 Białystok Polska / Poland Zakład produkcyjny: Białostoczek 26, gm. Zabłudów 15-592 Białystok Polska / Poland Deklaruje, że produkty / Hereby declares that the sterilisers:... -
Page 31: Grafical Mounting Instruction
MANUAL – AP-POOL-N SERIES 18. GRAFICAL MOUNTING INSTRUCTION Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413... - Page 32 MANUAL – AP-POOL-N SERIES Assemble of AP-POOL-N sterilizer Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
-
Page 33: Graphic Instructions For Installing The Radiator And Grounding
MANUAL – AP-POOL-N SERIES 19. GRAPHIC INSTRUCTIONS FOR INSTALLING THE RADIATOR AND GROUNDING Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413... -
Page 34: Warranty
20. WARRANTY UV sterilizers are exclusively for treatment of water/liquids which content is known. The manufacturer of the UV sterilizers - the TMA company guarantees efficient operation of the equipment covered by this warranty card. In order to obtain warranty service during the warranty period it is essential to: Possess a document confirming the purchase of the equipment (purchase invoice, ·... - Page 35 If during the warranty period the device is changed / repaired by persons not · authorized by the manufacturer of the equipment - the TMA company If the unit is powered by voltage of character and value other than defined in the ·...
- Page 36 MANUAL – AP-POOL-N SERIES Warranty and post warranty repairs Receive End date of Type of failure and repair procedure date repair Białostoczek 26,gm.Zabłudów,15-592 Białystok; Poland ; Tel. +48 857431246; VAT EU PL5420008413...
