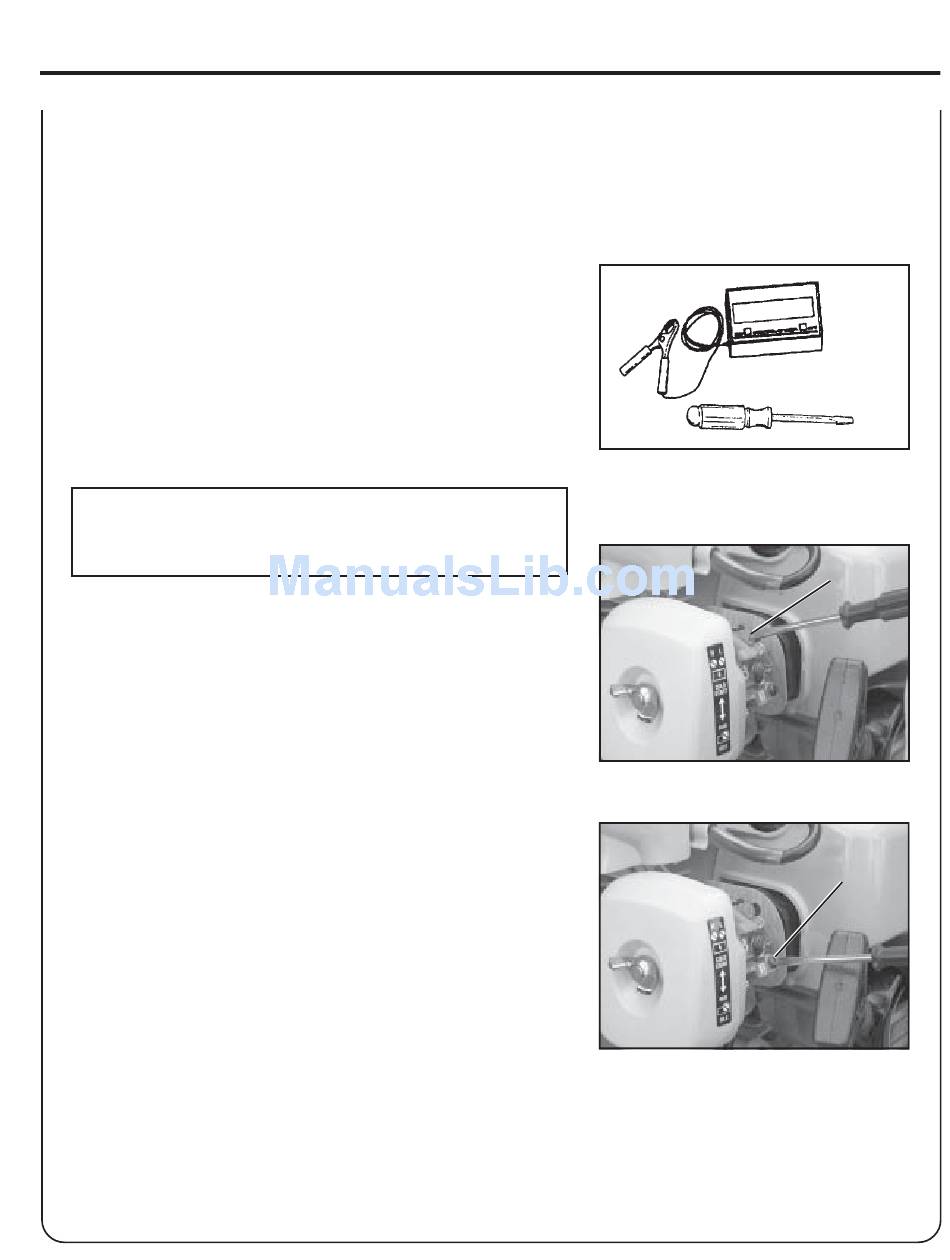

Carburetor Adjustment - Echo ES-210 - SERIAL NUMBER 07001001-07999999 Operator's Manual

CARBURETOR ADJUSTMENT

Engine Break-In
New engines must be operated a minimum duration of two tanks of fuel
break-in before carburetor adjustments can be made. During the break-in
period your engine performance will increase and exhaust emissions will
stabilize. Idle speed can be adjusted as required.
High Altitude Adjustment
High altitude adjustment is not required for proper operation of this
engine.
Level 2.
Tools required: Screwdriver, tachometer (Echo P/N 99051130017)
Parts required: None.
NOTE
Every unit is run at the factory and the carburetor is set in compli-
ance with emission regulations. This carburetor does not have
acceleration adjustment needle.
1. Before adjusting the carburetor, clean or replace the air filter and
spark arrestor screen and install blower pipes.
2. Start engine and run for several minutes to reach operating
temperature.
3. Stop engine. Turn red HI speed needle (A) CCW (counter
clockwise) to stop.
4. Idle Speed Adjustment with tachometer.
•Start engine and turn "idle" speed adjustment screw (B) to idle
RPM found on page 8 "Specifications" section of this manual.
5. Accelerate to full throttle for 2-3 seconds to clear excess fuel from
engine then return to idle. Accelerate to full throttle to check for
smooth transition from idle to full throttle. If engine stops or stalls
after full warm up, return the unit to your authorized ECHO dealer
for repair.
6. Check HI speed RPM at W.O.T. (Wide Open Throttle). HI speed
RPM should be set to specifications found on page 8 "Specifica-
tions" of this manual.
7. Check idle speed and reset if necessary.
