- Page 1 LIULBS001_eng-01 Instruction Manual for the use and the maintenance of battery and Battery Charger Original instructions Part E: LBM02MH rechargeable battery LBC230A battery charger LBC825A (80-250V ) battery charger LBC825A (110V ) battery charger LBC930D battery charger...
- Page 3 Autec Radio Remote Control and all of its components are done solely and completely in accordance with this Manual, and with all local applicable laws, safety rules and standards (all of the foregoing referred to herein as “Laws,...
- Page 4 It is also the responsibility of the Manufacturer and of the design professionals of the Machine on which the Autec Radio Remote Control is to be installed and used to be certain that the structure, condition, organization and markings of the Machine as installed at the facility is appropriate for and will allow for the safe and reliable use and control of the Machine through the Autec Radio Remote Control interface.
- Page 5 Laws, Regulations and Standards, even local, and that such Users and other Persons do in fact at all times operate or work with the Autec Radio Remote Control safely and ONLY in compliance with Autec instructions and warnings and with all applicable Laws, Regulations and Standards, even local.
-
Page 6: Table Of Contents
Conformity with standards ................11 Contacts and useful addresses ..............12 Warranty ..................... 12 Technical assistance and spare parts ............12 LBM02MH rechargeable battery ................. 13 Technical data ..................... 13 Plate ......................13 Warnings for battery usage ................14 First aid ....................... 15 Instructions for use .................. -
Page 7: Information On The Use Of Instructions
(Part A) of the Manual provided with the Radio Remote Control. Structure of the Instruction Manual The Manual for the use and maintenance of Autec Radio Remote Controls consists in different parts, that altogether form the Manual; the Manual must be read carefully, understood and applied by the Radio Remote Control's Owner, User and by all those Persons that, for any reasons, may operate with the Radio Remote Control or with the Machine where it is installed. - Page 8 Receiving Unit. Usage and maintenance instruction as a whole are to be considered as an integral part both of the Autec Radio Remote Control and of the Machine, system, device or Machinery system where the Radio Remote Control is installed.
-
Page 9: Caption And Terminology
Information on the use of instructions Caption and terminology Contact Autec if any of the instructions, symbols, warnings or images are not clear and understandable, or if you have doubts or questions. In this part of the Manual, the terms listed below have the same meaning explained in the... -
Page 10: To Whom The Instructions Are Addressed
Regulation for the storage of instructions are described in the paragraph with the same title in the general part: please refer to that part. Intellectual property Restrictions connected to intellectual property are described in the paragraph with the same title in the general part: please refer to that part. LIULBS001_eng-01 AUTEC -... -
Page 11: Brief Product Presentation
Brief product presentation Battery and Battery Charger The object of this part of the Manual is the LBM02MH battery, that is meant to be used inside an Autec Radio Remote Control's Transmitting Unit, and the related LBC230A, LBC825A (110V ), LBC825A (80-250V ) and LBC930D battery chargers, that are needed to recharge it. -
Page 12: Contacts And Useful Addresses
Brief product presentation Contacts and useful addresses The Radio Remote Controls are produced by Autec srl – Via Pomaroli, 65 – 36030 Caldogno (VI) – ITALY. You can find contacts for Autec, its distributors, dealers and authorized service centres on the website www.autecsafety.com. -
Page 13: Lbm02Mh Rechargeable Battery
LBM02MH rechargeable battery LBM02MH rechargeable battery The LBM02MH rechargeable battery is used to provide power to Autec Transmitting Units with compatible battery housing (please check this in "Part C" of the Instruction Manual). Contacts Technical data plate Technical data Type/voltage/capacity ................ NiMH/2.4V/1600mAh Max. -
Page 14: Warnings For Battery Usage
LBM02MH rechargeable battery Warnings for battery usage Use only original Autec batteries and recharge them only with the suitable Battery Charger, which is provided by Autec. Never use damaged batteries (e.g. crushed, punctured, swollen or leaking batteries). Never use batteries if they have been dropped even just once, as their internal components may have been damaged, even though this cannot be seen from the outside. -
Page 15: First Aid
Autec cannot be held responsible for any use that does not comply with the provisions and directions provided in the Manual, and for any damage that may result from improper, incorrect or irrational use of the battery. -
Page 16: Instructions For Use
LBM02MH rechargeable battery Instructions for use Charge the battery before first use. The use of altered batteries or batteries that are not the original ones will void any warranty both of the battery and of the Transmitting Unit. In order to ensure the maximum battery life over time, please respect the following preventive... -
Page 17: Battery Disposal
LBM02MH rechargeable battery Battery disposal Do not dispose of batteries with domestic trash and do not burn them as they may explode. Batteries may contaminate the environment due to toxic or harmful substances that can be dangerous for humans, animals and the vegetation. For this reason, they must not be disposed of as unsorted household waste. -
Page 18: Lbc230A, Lbc825A (80-250V ) And Lbc825A (110V ) Battery Chargers

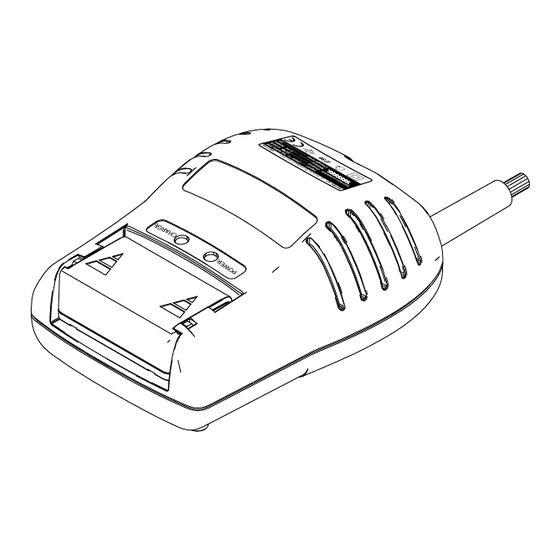

LBC230A, LBC825A (80-250V ) and LBC825A (110V ) battery chargers LBC230A, LBC825A (80-250V ) and LBC825A (110V ) battery chargers are used to charge the LBM02MH rechargeable battery that is used in Autec Radio Remote Сontrols. Power supply cable Contacts... -
Page 19: Electrical Connection
Leave at least 5cm (1.97In) room above and around the Battery Charger. Do not set any objects on the battery charger when it is connected to the AC mains socket. Do not in any case perforate, modify or tamper with the Battery Charger. AUTEC - LIULBS001_eng-01... - Page 20 The LBC230A, LBC825A (80-250V ) and LBC825A (110V ) battery chargers are generally used horizontally, but they can also be mounted vertically by using the appropriate holes on its case and fixing them with screws (max. 4mm/0.16In diameter). 109.5mm (4.311in) LIULBS001_eng-01 AUTEC -...
-
Page 21: Warnings For Battery Charger Usage
Battery Charger, because they can compromise its use and safety. Autec cannot be held responsible for any use that does not comply with the provisions and directions provided in the Manual, and for any damage that may result from improper, incorrect or irrational use of the Battery Charger. -
Page 22: Instructions For Use
The battery is not inserted. … on with steady light. The battery is being recharged. 4.6.2 Recharge procedure Follow this procedure to recharge batteries. Connect the battery charger to the AC mains socket (the POWER LED turns on with steady light) LIULBS001_eng-01 AUTEC -... - Page 23 If you leave the battery in the battery charger after charging has been completed, the battery charger can start recharging again. This compensates self-discharge (if any). Do not, in any case, leave the battery under charge for prolonged time when it is not in use. AUTEC - LIULBS001_eng-01...
-
Page 24: Disposal
When disposing of a Battery Charger, its components must be managed as separate waste. When disposing of a Battery Charger, please comply with the provisions and/or the regulations in force in the country where it is used. LIULBS001_eng-01 AUTEC -... -
Page 25: Lbc930D Battery Charger
LBC930D battery charger LBC930D battery charger The LBC930D battery charger is used to charge the LBM02MH rechargeable battery used in Autec Radio Remote Controls. Power supply cable Contacts CHARGE LED POWER LED Technical data plate Technical data Power supply voltage ..................9 - 30V Power consumption ...................... -
Page 26: Electrical Connection
Leave at least 5cm (1.97In) room above and around the Battery Charger. Do not set any objects on the Battery Charger when it is connected to the mains. Do not in any case perforate, modify or tamper with the Battery Charger. LIULBS001_eng-01 AUTEC -... - Page 27 LBC930D battery charger The LBC930D battery charger is generally used horizontally, but it can also be mounted vertically by using the appropriate holes on its case and fixing it with screws (max. 4mm/0.16In diameter). 109.5mm (4.311in) AUTEC - LIULBS001_eng-01...
-
Page 28: Warnings For Battery Charger Usage
Battery Charger, because they can compromise its use and safety. Autec cannot be held responsible for any use that does not comply with the provisions and directions provided in the Manual, and for any damage that may result from improper, incorrect or irrational use of the Battery Charger. -
Page 29: Instructions For Use
(+) and negative (-) poles are correctly connected only if it is inserted with the plate facing the compartment, so that the battery's contacts match the Battery Charger 's contacts. AUTEC - LIULBS001_eng-01... -
Page 30: Disposal
When disposing of a Battery Charger, its components must be managed as separate waste. When disposing of a Battery Charger, please comply with the provisions and/or the regulations in force in the country where it is used. LIULBS001_eng-01 AUTEC -... -
Page 31: Malfunctions
Replace the Battery Charger or both, it may be assumed that the battery. the Battery Charger is damaged; otherwise the damage concerns one of the two batteries. AUTEC - LIULBS001_eng-01... - Page 32 Battery Charger is damaged; otherwise the damage concerns one of the two batteries. If the problem persists after attempting the suggested solution, contact the support service of the Machine Manufacturer. LIULBS001_eng-01 AUTEC -...
-
