LIUMB070A_eng-01
Instruction Manual for the use and the maintenance
of battery and battery charger
Original instructions
Part E: LPM01 rechargeable battery
MHM03 rechargeable battery
UMC12V battery charger

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPM01 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUTEC LPM01

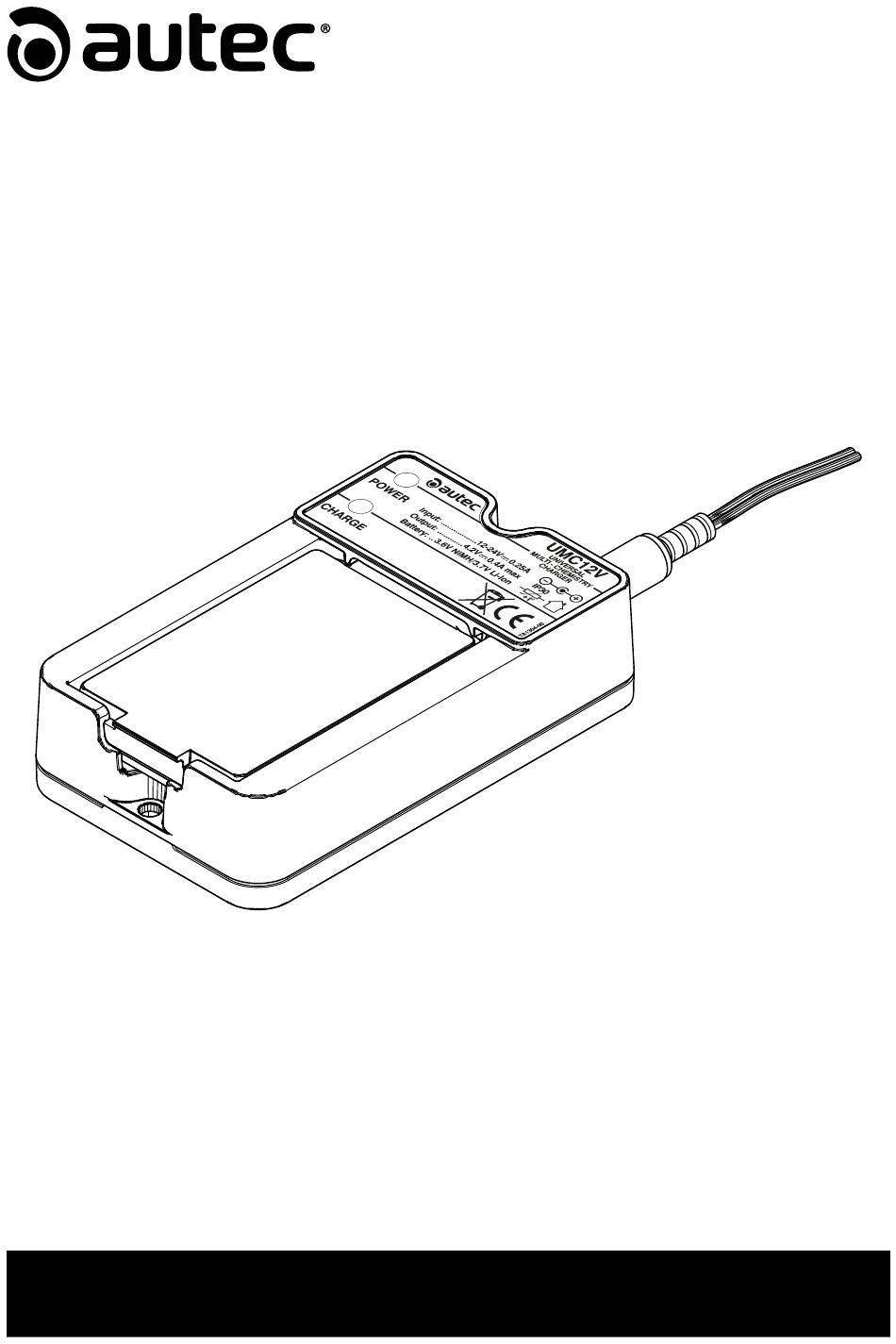

  • Page 1 LIUMB070A_eng-01 Instruction Manual for the use and the maintenance of battery and battery charger Original instructions Part E: LPM01 rechargeable battery MHM03 rechargeable battery UMC12V battery charger...
  • Page 3 WHICH THE AUTEC CCS IS INTENDED TO BE INSTALLED, to perform an in-depth and accurate risk assessment to determine if the Autec CCS is suitable for operating a Machine in conditions of safety and operational effectiveness, taking into account the conditions...
  • Page 4 It is also the responsibility of the Manufacturer and of the design professionals of the Machine on which the Autec CCS is to be installed and used to be certain that the structure, condition, organization and markings of the Machine as installed at the facility is appropriate for and will allow for the safe and reliable use and control of the Machine through the Autec CCS interface.
  • Page 5 Laws, Regulations and Standards, even local, and that such Users and other Persons do in fact at all times operate or work with the Autec CCS safely and ONLY in compliance with Autec instructions and warnings and with all applicable Laws, Regulations and Standards, even local.
  • Page 7: Table Of Contents

    Conformity with standards ................. 12 Contacts and useful addresses ................. 13 Warranty ......................13 Technical assistance and spare parts ..............13 LPM01 and MHM03 rechargeable batteries ............14 Technical data ....................14 Plate ......................... 15 Warnings for use ....................16 First aid ......................
  • Page 8: Information On The Use Of Instructions

    (Part A) of the Manual provided with the CCS. Structure of the Instruction Manual The Manual for the use and maintenance of Autec CCSs consists of different parts, that altogether form the Manual; the Manual must be read carefully, understood and applied by the CCS's Owner, User and by all those Persons that, for any reasons, may operate with the CCS or with the Machine where it is installed.
  • Page 9 Autec CCS and of the Machine, system, device or Machinery system where the CCS is installed. The Manufacturer of the Machine on which the Autec CCS is installed, and the Owner and User of the Machine, must make sure that the Instruction Manual and all of its parts are included in the Instruction Manual of the Machine.
  • Page 10: Caption And Terminology

    Caption and terminology Contact Autec if any of the instructions, symbols, warnings or images are not clear and understandable. In this part of the Manual, the terms listed below have the same meaning explained in the corresponding paragraph of the general part (Part A):...
  • Page 11: To Whom The Instructions Are Addressed

    Regulation for the storage of instructions are described in the paragraph with the same title in the general part: please refer to that part. Intellectual property Restrictions connected to intellectual property are described in the paragraph with the same title in the general part: please refer to that part. AUTEC LIUMB070A_eng-01...
  • Page 12: Brief Product Presentation

    Brief product presentation Battery and battery charger The object of this part of the Manual are LPM01 and MHM03 batteries, that are meant to be used inside an Autec CCS's Remote station, and the corresponding UMC12V battery charger, that is needed to recharge them.
  • Page 13: Contacts And Useful Addresses

    Contacts and useful addresses The CCSs are produced by Autec Srl – Via Pomaroli, 65 - 36030 Caldogno (VI) - Italy. You can find contacts for Autec, its distributors, dealers and authorized service centres on the website www.autecsafety.com. Warranty General warranty conditions are indicated both in the relevant sheet provided together with this documentation, and in the specific page on the website www.autecsafety.com.
  • Page 14: Lpm01 And Mhm03 Rechargeable Batteries

    LPM01 and MHM03 rechargeable batteries The LPM01 and MHM03 rechargeable batteries and are used to provide power to Autec's Remote stations with compatible battery housing (please check this in "Part C" of the Instruction Manual). LPM01 MHM03 Contacts Technical data plate Technical data 3.1.1...
  • Page 15: Plate

    A plate is stuck on the battery, showing battery's identification, main technical data, marking and marks (if any). The plate must not be removed from its position; removal will immediately void the warranty. The plate must not be altered or damaged: contact Autec for replacement. AUTEC LIUMB070A_eng-01...
  • Page 16: Warnings For Use

    Do not charge, use or store the battery at temperatures exceeding the limits provided in paragraphs 3.1 and 3.6. LPM01 and MHM03 batteries cannot be used by people with reduced physical, sensory or mental capabilities, and by children. Do not leave the battery under charge if the charge cycle does not end within the “Max.
  • Page 17: First Aid

    The battery must be charged in the "SAFE AREA", i.e. without explosion-risk gases and/or dusts. Autec cannot be held responsible for any use that does not comply with the provisions and directions provided in the Manual, and for any damage that may result from improper, incorrect or irrational use of the battery.
  • Page 18: Instructions For Use

    Batteries may be recharged and discharged several times, but progressive reduction of the maximum capacity, and therefore shorter run time of the battery normally occur with prolonged use. 3.5.1 LPM01 battery Partial charging/discharging does not damage the battery. 3.5.2 MHM03 battery It is recommended to fully discharge the battery before charging.
  • Page 19: Shipping And Transportation

    3.6.1 LPM01 battery The following table shows the residual battery capacity in comparison to its nominal value, depending on the storage temperature and period. Temperature range Period Residual capacity from 45 to 60°C (from 113 to 1 month 140°F) from 25 to 45°C (from 77 to 3 months 113°F)
  • Page 20: Battery Disposal

    The crossed-out wheeled bin marked on batteries indicates that they must be disposed of separately from household waste, in conformity with the EU Directive 2006/66/EC and its amendments, and with local regulations. LIUMB070A_eng-01 AUTEC...
  • Page 21: Umc12V Battery Charger

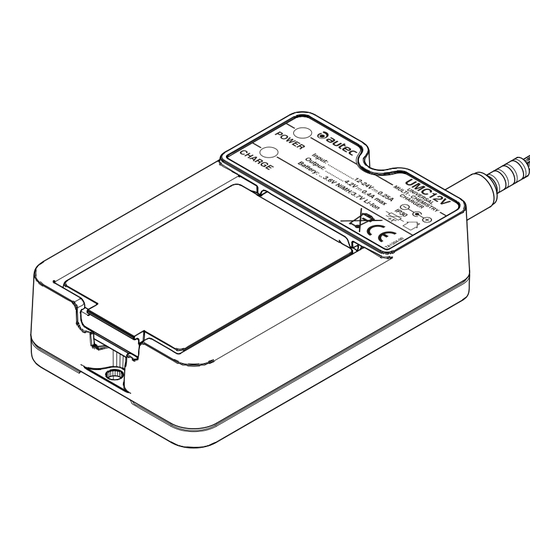

    UMC12V battery charger The UMC12V battery charger is used to charge LPM01 and MHM03 rechargeable batteries used in Autec CCSs. Power supply cable Jack plug Socket Contacts CHARGE LED POWER LED Technical data plate Technical data Power supply voltage 12-24V Absorbed current 0.25A...
  • Page 22: Plates

    The UMC12V battery charger can be powered by a 12/24V battery, with a power supply unit equipped with safety isolating transformer or with the mains adapter provided by Autec. Never use the battery charger and/or the mains adapter if they are damaged.
  • Page 23: Positioning

    (max. 4mm/0.16In diameter). It is also possible to fix the power supply cable so that it will not be torn: when fixing the device, place the cable as shown in the figure. 105mm (4.15In) AUTEC LIUMB070A_eng-01...
  • Page 24: Warnings For Use

    Autec cannot be held responsible for any use that does not comply with the provisions and directions provided in the Manual, and for any damage that may result from improper, incorrect or irrational use of the battery charger and/or of the mains adapter.
  • Page 25: Instructions For Use

    NOTE: do not force insertion. The battery slides easily into place and ensures that the positive (+) and negative (-) poles are correctly connected only if it is inserted with the plate facing the compartment, so that the battery's contacts match the battery charger 's contacts. AUTEC LIUMB070A_eng-01...
  • Page 26: Disposal

    Disposal When disposing of a battery charger, its components must be managed as separate waste. When disposing of a battery charger, please comply with the provisions and/or the regulations in force in the country where it is used. LIUMB070A_eng-01 AUTEC...
  • Page 27: Malfunctions

    Then charge the immediately when the battery is battery. inserted in the battery charger. If this problem occurs when a flat battery is inserted, it may be Replace the battery charger. assumed that the battery charger is damaged. AUTEC LIUMB070A_eng-01...
  • Page 28 Replace the battery charger or both, it may be assumed that the the battery. battery charger is damaged; otherwise the damage concerns one of the two batteries. LIUMB070A_eng-01 AUTEC...
  • Page 29 If the problem persists after attempting the suggested solution, contact the support service of the Machine Manufacturer. AUTEC LIUMB070A_eng-01...
  • Page 32 Via Pomaroli, 65 - 36030 Caldogno (VI) - Italy Tel. +39 0444 901000 - Fax +39 0444 901011 info@autecsafety.com - www.autecsafety.com MADE IN ITALY...
